Toro 74142TE - Product Overview; Controls

ProductOverview
G020562
1
2
3
4
5
6
7
8
9
10
11

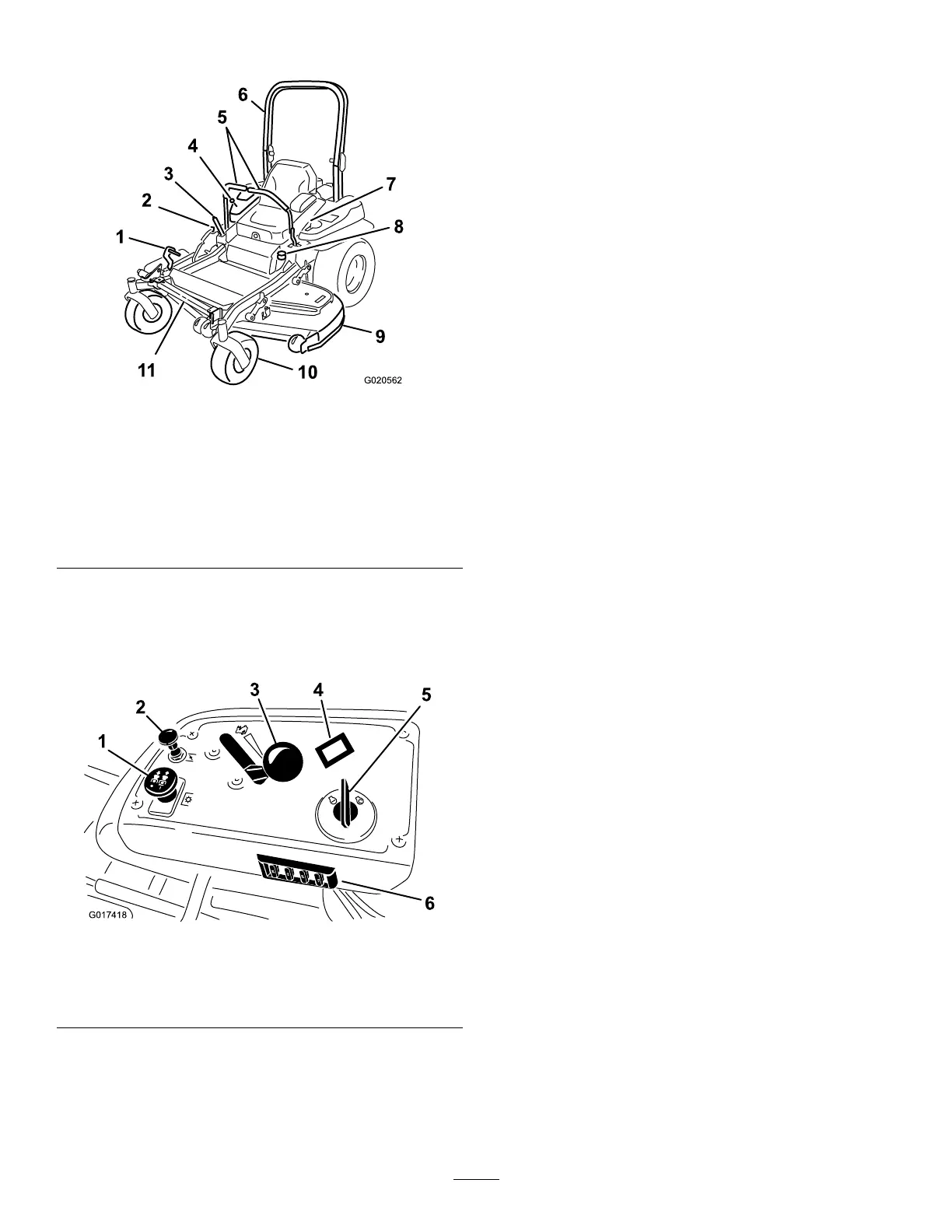

Figure4
1.Height-of-cutdeck-lift
pedal
7.Seatbelt
2.Transportlock8.Fuelcap
3.Parking-brakelever9.Mowerdeck
4.Controls10.Casterwheel
5.Motion-controllevers
11.ZStand
6.Rollbar
Controls
Becomefamiliarwithallthecontrolsbeforeyoustartthe
engineandoperatethemachine(Figure4andFigure5).
G017418
25
25
10
15
1
2
3
4
5
6
Figure5
1.PTOSwitch
4.Hourmeter
2.Choke
5.Ignitionswitch
3.Throttlecontrol6.Fuses
HourMeter
Thehourmeterrecordsthenumberofhourstheenginehas
operated.Itoperateswhentheengineisrunning.Usethese
timesforschedulingregularmaintenance(Figure5).
ThrottleControl
ThethrottlecontrolisvariablebetweenFastandSlow.
Choke
Usethechoketostartacoldengine.Pullthechokeknobup
toengageit.
Blade-ControlSwitch(PTO)
Usetheblade-controlswitch(PTO)toengagetheelectric
clutchanddrivethemowerblades.Pulltheswitchupto
engagethebladesandrelease.Todisengagetheblades,
pushtheblade-controlswitch(PTO)downormovea
motion-controlleverintotheNEUTRAL-LOCKposition.
IgnitionSwitch
Thisswitchisusedtostartthemowerengineandhas3
positions:Start,RunandOff.
Motion-ControlLevers
Usethemotion-controlleverstodrivethemachineforward
andreverseandtoturneitherdirection.
Neutral-LockPosition
UsetheNEUTRAL-LOCKpositionwiththesafety-interlock
systemtoengageandtodeterminetheNEUTRALposition.
Fuel-ShutoffValve
Closethefuel-shutoffvalve(undertheseat)when
transportingorstoringthemower.
Attachments/Accessories
AselectionofToroapprovedattachmentsandaccessoriesis
availableforusewiththemachinetoenhanceandexpand
itscapabilities.ContactyourAuthorizedServiceDealeror
Distributororgotowww .Toro.comforalistofallapproved
attachmentsandaccessories.
13
