InstallingtheHydraulic-SystemFilters
ServiceInterval:Aftertherst50hours
Every400hours
1.Applyathincoatofoilonthesurfaceoftherubber
sealofeachlter.
2.Turnthelterclockwiseuntiltherubbersealcontacts
thelteradapter,thentightenthelteranadditional
3/4to1fullturn.
3.Repeatfortheotherlter.
4.Installthelterguardsovereachlterthatyou
previouslyremoved.
5.Usethe3screwstosecurethelterguards.
6.Verifythattheventplugsareremovedbeforeadding
theoil.
7.Slowlypourthespeciedoilthroughtheexpansion
reservoiruntiloilcomesoutof1ofthevent-plugholes.
8.Stopandinstallthatventplug.
9.Torquetheplugto20N∙m(15ft-lb).
10.Continuetoaddoilthroughtheexpansionreservoir
untiloilcomesoutoftheremainingvent-plugholeon
thesecondtransmission.
11.Stopandinstallthatventplug.
12.Torquetheplugto20N∙m(15ft-lb).
13.Continuetoaddoilthroughtheexpansionreservoir
untilitreachestheFULLCOLDlineontheexpansion
reservoir.
14.ProceedtoBleedingtheHydraulicSystem(page53).
Important:Failuretoperformthe Bleeding
the Hy draulic System procedureafterchanging
hydraulicltersandoilcanresultinirreparable
damagetothetransaxledrivesystem.
B
A
C D
E
F
3/4
g027477

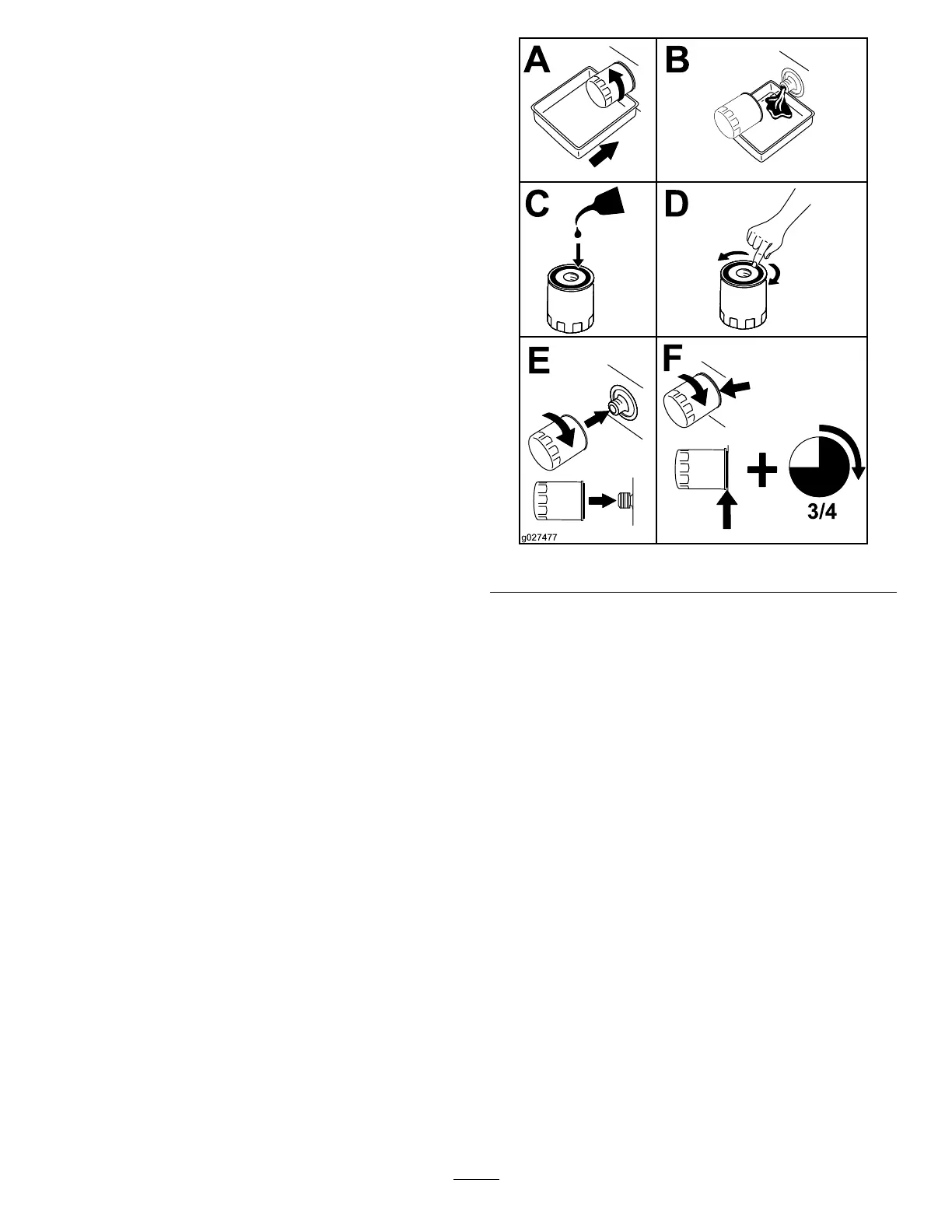

Figure74
