3150 - Hydraulic System Maintenance; Hydraulic System Safety; Servicing the Hydraulic Fluid

5.Rotatetheclevisuntilyouattainthedesired
height(Figure53).

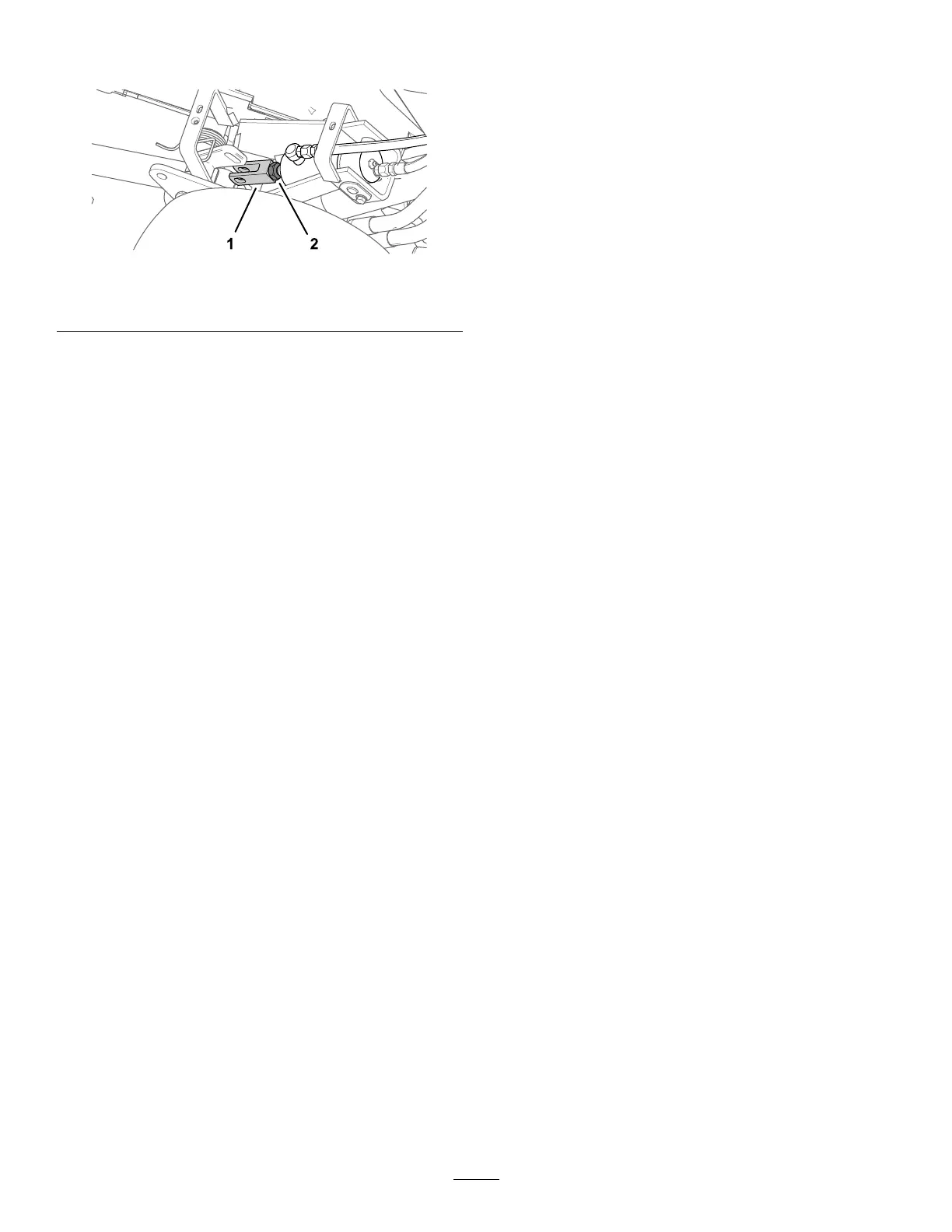

g229788
Figure53
1.Clevistting
2.Jamnut
6.Assembletheclevisttingtotheliftarmwiththe
clevispinandretainingpin,andtightenthejam
nut(Figure52andFigure53).
7.Installthecoverplateandboltsthatyou
removedinstep2.
HydraulicSystem
Maintenance
HydraulicSystemSafety
•Seekimmediatemedicalattentionifuidisinjected
intoskin.Injecteduidmustbesurgicallyremoved
withinafewhoursbyadoctor.
•Ensurethatallhydraulic-uidhosesandlinesare
ingoodconditionandallhydraulicconnections
andttingsaretightbeforeapplyingpressureto
thehydraulicsystem.
•Keepyourbodyandhandsawayfrompinhole
leaksornozzlesthatejecthigh-pressurehydraulic
uid.
•Usecardboardorpapertondhydraulicleaks.
•Safelyrelieveallpressureinthehydraulicsystem
beforeperforminganyworkonthehydraulic
system.
ServicingtheHydraulic
Fluid
Important:Regardlessofthehydraulicuid
typeused,anytractionunitusedforoff-green
applications,verticuttingorusedduringambient
temperaturesabove29°C(85°F)shouldhavethe
OilCoolerKit(PartNo.105-8339)installed.
HydraulicFluidSpecications
Thereservoirislledatthefactorywithhigh-quality
hydraulicuid.Checkthelevelofthehydraulicuid
beforeyourststarttheengineanddailythereafter;
refertoCheckingtheHydraulic-FluidLevel(page42).
Recommendedhydraulicuid:T oroPXExtended
LifeHydraulicFluid;availablein19L(5USgallon)
pailsor208L(55USgallon)drums.
Note:Amachineusingtherecommended
replacementuidrequireslessfrequentuidandlter
changes.
Alternativehydraulicuids:IfToroPXExtended
LifeHydraulicFluidisnotavailable,youmayuse
anotherconventional,petroleum-basedhydraulicuid
havingspecicationsthatfallwithinthelistedrange
forallthefollowingmaterialpropertiesandthatit
meetsindustrystandards.Donotusesyntheticuid.
Consultwithyourlubricantdistributortoidentifya
satisfactoryproduct.
Note:T orodoesnotassumeresponsibilityfor
damagecausedbyimpropersubstitutions,souse
productsonlyfromreputablemanufacturerswhowill
standbehindtheirrecommendation.
