Toro Groundsmaster 360 - Adjusting the Height of Cut

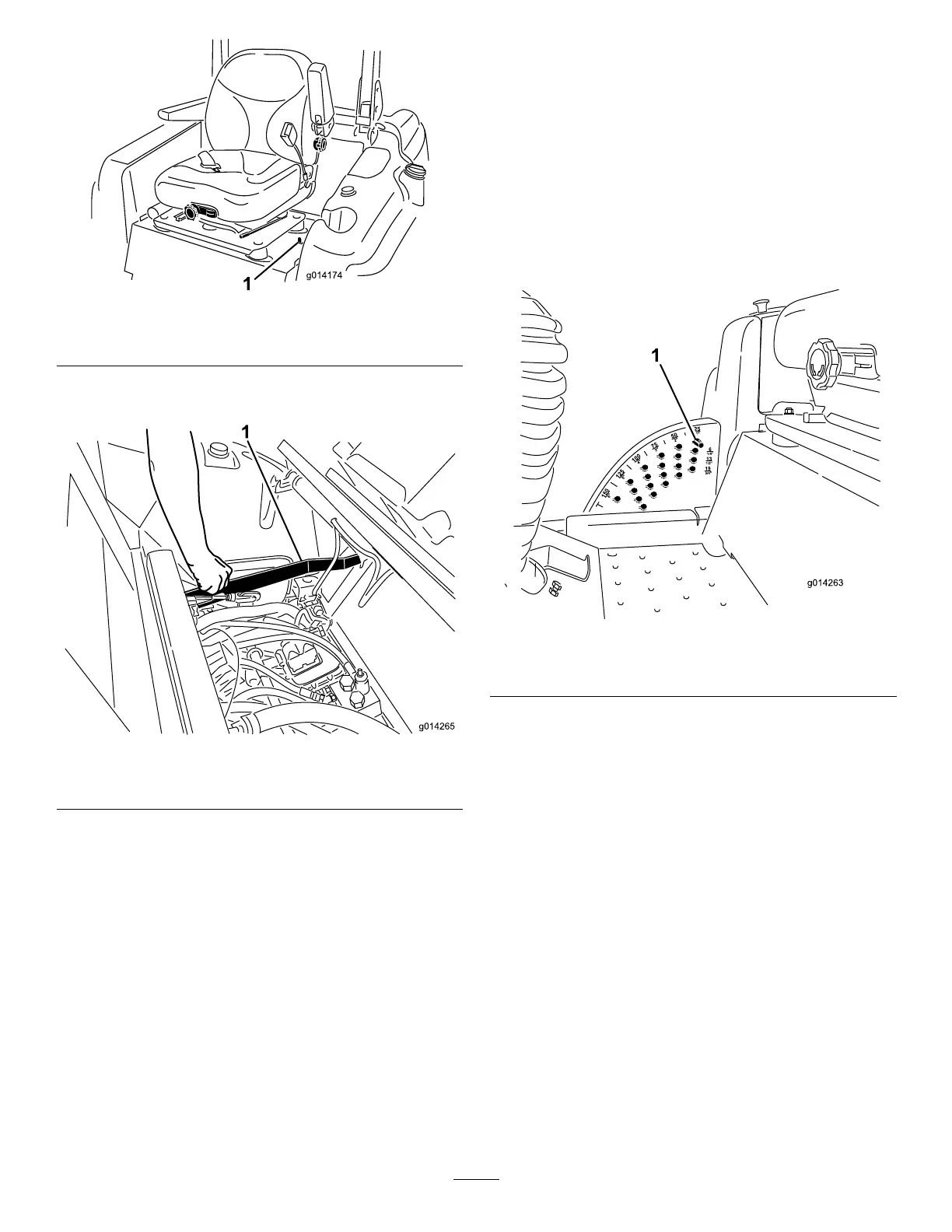

g014174
Figure19
1.Seatlatch
2.Tolowertheseat,pulluptheseat-latch-release
barandlowertheseatintothelockedposition.
g014265
Figure20
1.Seat-latch-releasebar
AdjustingtheHeightofCut
Youcanadjusttheheightofcutfrom2.5to15.8cm
(1to6inches)in6mm(1/4inch)incrementsby
relocatingtheheight-of-cutpinintodifferenthole
locations.
1.Withtheenginerunning,pushbackthedeck-lift
switchuntilthecuttingunitisfullyraised,and
releasetheswitchimmediatelyasshownin
Figure21.
2.Rotatetheheight-of-cutpinuntilthenubon
itlinesupwiththeslotsintheholesinthe
height-of-cutbracketandremoveit(Figure21).
3.Selectaholeintheheight-of-cutbracket
correspondingtothedesiredheightofcut,insert
thepin,androtateitdowntolockitinplace
(Figure21).
Note:Thereare4rowsofholepositions
(Figure21).Thetoprowgivesyoutheheightof
cutlistedabovethepin.Thesecondrowdown
givesyoutheheightlistedplus6mm(1/4inch).
Thethirdrowdowngivesyoutheheightlisted
plus12mm(1/2inch).Thebottomrowgivesyou
theheightlistedplus18mm(3/4inch).Forthe
15.8cm(6inches)position,thereisonly1hole,
locatedinthesecondrow.Thisdoesnotadd6
mm(1/4inch)tothe15.8cm(6inches)position.
g014263
Figure21
1.Height-of-cutpin
4.Adjusttheanti-scalprollersandskidsas
required.
25
