Toro Groundsmaster 360 - Cab Controls

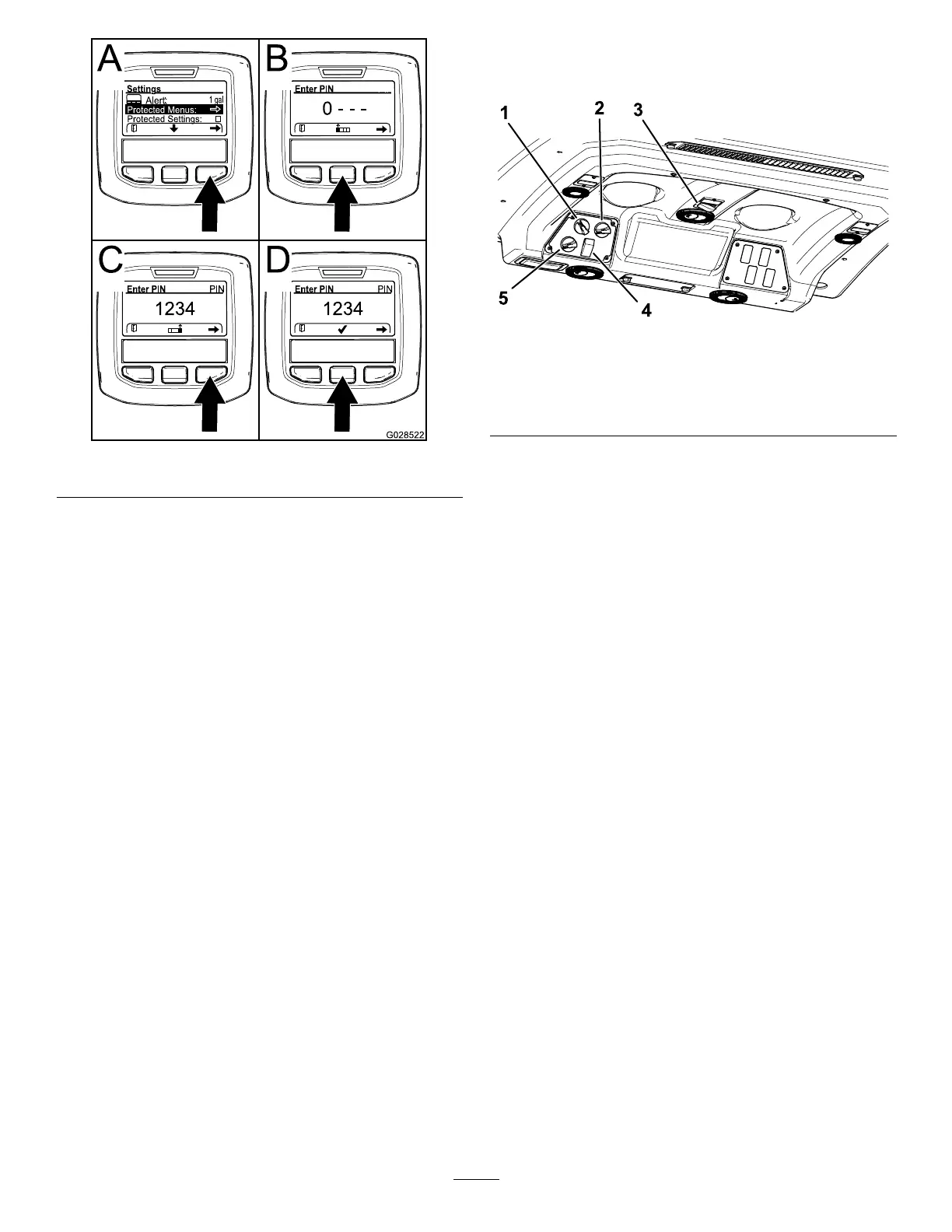

g028522
Figure11
3.ToenterthePINcode,pressthecenterbutton
untilthecorrectrstdigitappears,thenpress
therightbuttontomoveontothenextdigit
(Figure11BandFigure11C).Repeatthisstep
untilthelastdigitisenteredandpresstheright
buttononcemore.
4.PressthemiddlebuttontoenterthePINcode
(Figure11D).
WaituntiltheredindicatorlightoftheInfoCenter
illuminates.
Note:IftheInfoCenteracceptsthePINcode
andtheprotectedmenuisunlocked,theword
“PIN”displaysintheupperrightcornerofthe
screen.
Note:RotatethekeyswitchtotheOFFpositionand
thentotheONpositionlockstheprotectedmenu.
YoucanviewandchangethesettingsintheProtected
Menu.OnceyouaccesstheProtectedMenu,scroll
downtoProtectSettingsoption.Usetherightbutton
tochangethesetting.SettingtheProtectSettingsto
OFFallowsyoutoviewandchangethesettingsin
theProtectedMenuwithoutenteringthePINcode.
SettingtheProtectSettingstoONhidestheprotected
optionsandrequiresyoutoenterthePINcodeto
changethesettingintheProtectedMenu.Afteryou
setthePINcode,rotatethekeyswitchOFFandback
totheONpositiontoenableandsavethisfeature.
CabControls
ModelwithCabOnly
g198816
Figure12
1.Fancontrol4.Air-conditioningswitch
2.Temperaturecontrol5.Air-recirculationcontrol
3.Windshield-wiperswitch
Air-RecirculationControl
Setsthecabtoeitherrecirculatetheairinthecabinor
todrawairintothecabinfromoutside(Figure12).
•Setittorecirculatetheairwhenusingthe
air-conditioning.
•Setittodrawairinwhenusingtheheaterorfan.
Fan-ControlKnob
Rotatethefan-controlknobtoregulatethespeedof
thefan(Figure12).
Temperature-Control-Knob
Rotatethetemperature-controlknobtoregulatethe
airtemperatureinthecab(Figure12).
Windshield-WiperSwitch
Usethisswitchtoturnthewindshieldwipersonor
off(Figure12).
Air-ConditioningSwitch
Usethisswitchtoturntheairconditioningonoroff
(Figure12).
WindshieldLatch
Liftupthelatchtoopenthewindshield(Figure13).
Pressinthelatchtolockthewindshieldintheopen
position.Pulloutanddownonthelatchtocloseand
securethewindshield.
