Toro Lynx SmartHub User Manual

The maximum communication wire length
between the decoder module and the
solenoid is 575' (175m).
Recommended Cable for Decoder-to-
Solenoid is a Solid Copper, 2-Conductor,
Direct Burial cable.
To easily identify stations for
troubleshooting, install wires with the same
color code as the station wires.
Daughterboard
Valve Common
Brown Wire: Connect to one of the wires from
each of the four solenoids.
Station 1
Violet Wire: Connect to one of Station 1’s solenoid wires.
Station 2
Yellow Wire: Connect to one of Station 2’s solenoid wires.
Station 3
White Wire: Connect to one of Station 3’s solenoid wires.
Station 4
Orange Wire: Connect to one of Station 4’s
solenoid wires.
Red Power/Communication Wire
Black Power/Communication Wire
Output
Circuit #1
AC Solenoid
Black
Black
Each station can activate up to 2 solenoids.
(See valve compatibility for details.)
Out to additional
decoder modules
Station Wire
Valve Common Wire
Each output circuit can accommodate up to
125 Decoder Modules.
1-Station
Decoder
Module
Maximum communication wire length
between the controller and the farthest
decoder is 2,072m (2.5mm
2
).
Output
Circuit #2
Black Black
Red Red
Black Black
Red Red

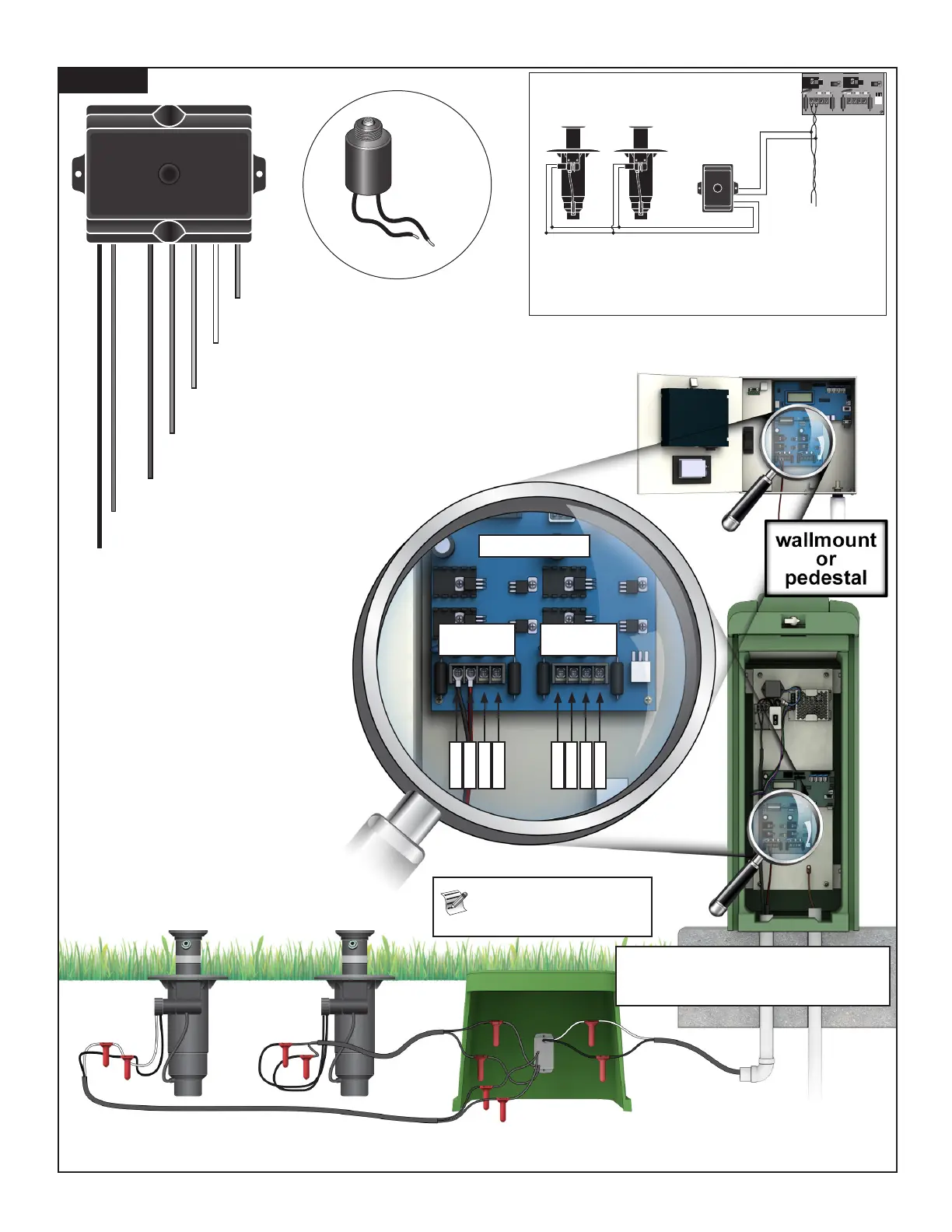

Figure 9
When possible, install the
decoder module in a valve
box for ease of service.
Recommended Cable for Controller-to-Decoder is 14 AWG, Solid
Copper, Jacketed 2-Conductor, Direct Burial cable.
