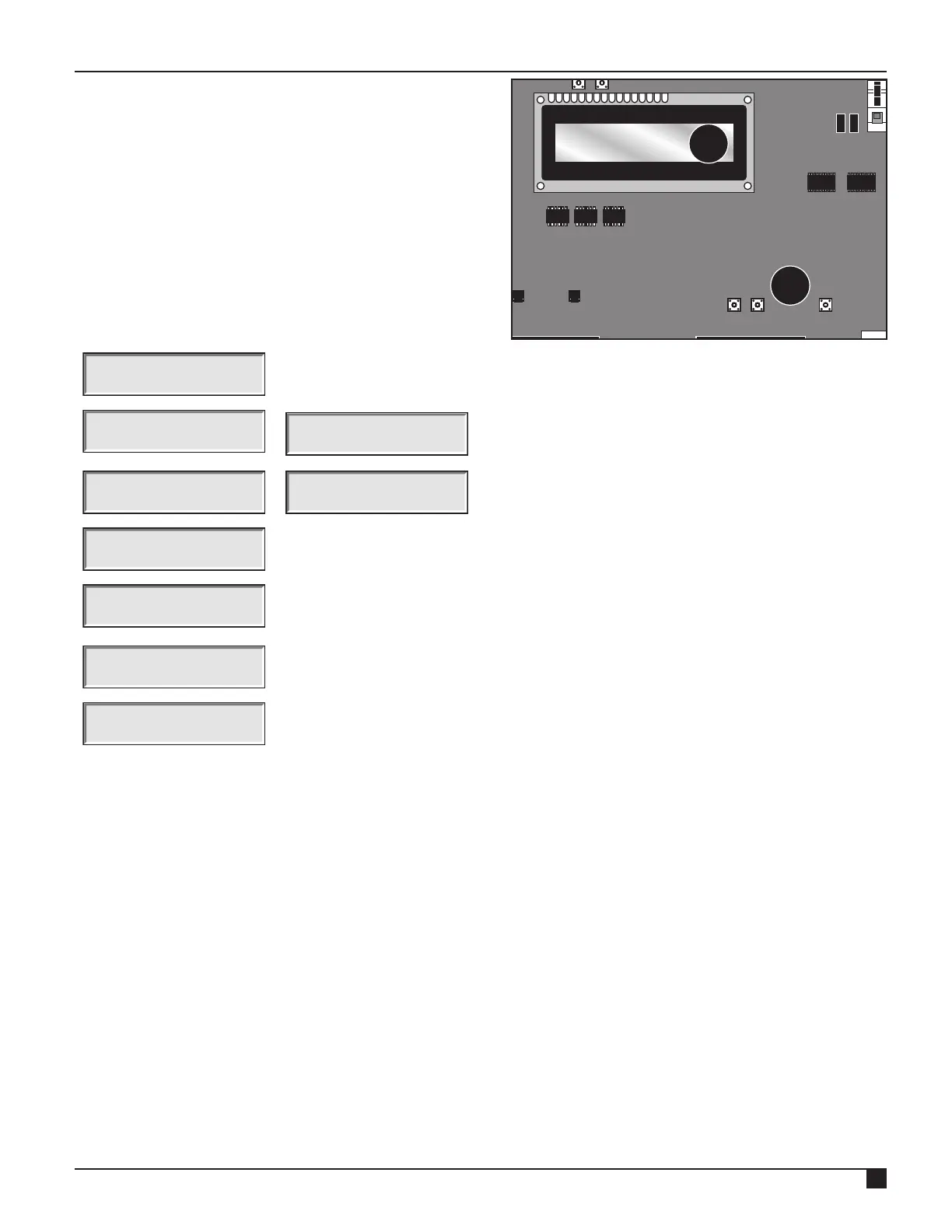

Motherboard Diagnostic Display
The SmartHub motherboard features a 2-line, 16 character
LCD display (A) for quickly viewing for system diagnostic
information. Use the - and + buttons (B) to scroll through the
display lines and available options and the ENTER button to
clear alarms when prompted.
Rev 10.1.3
11/13/2019
After power up, the screen will display board’s firmware version.
D1 = OFF
D2 = OFF
D1=0.024 38.6V
D2=0.024 38.6V
After the initial Revision screen, the display will show the
real time current and voltage for both daughterboards if
they are on.
D1L1=0.24A
D1L2=0.24A
D2L1=0.24A
D2L2=0.24A
The display will also show the load currents by individual
wires of a two-wire communication line.
1 open 0
2 open 0
The display will show the Rain and Pump Pressure sensor state followed by count and
will be updated in real time.
Tx: -----
Rx: -----
The display will show the information contained in the message during transmission
execution. The information will only be displayed while the transmission is being
executed. The display will refresh if a different command is transmitted.
10:47:18
11/21/2019
The display will show the time and date.
Flow = 00.00 Hz
The display will show the real time pulse frequency of the flow sensor input.
-
+
ENTER
A
B
37
Lynx® SmartHub Installation and User Guide
