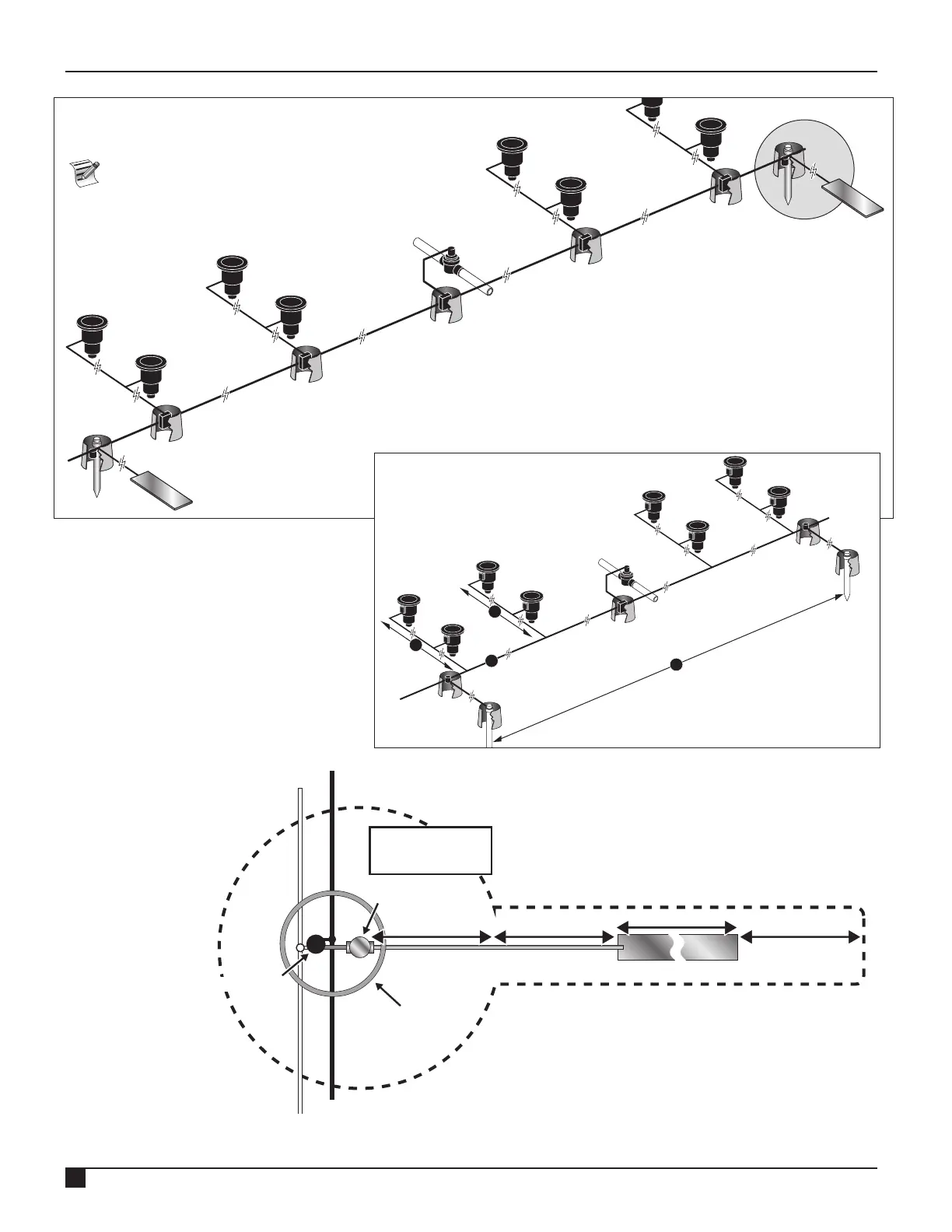

See Detail A
Golf Sprinkler with Decoder
Detail A
Maximum of 1000' (300 m)
of populated communication line
between ground points
A = 500' (150m) Max
B+C = 500' (150m) Max
D = 1000' (300m) Max
Figure 10
For upgrades of existing systems, we
recommend adding one ground point
(Detail A) at the end of each main
communication line.
valve box
black
white
DEC-SG-LINE
grounding rod
No solenoid cables
or decoder modules
within this zone.
8’ (2.4m) 8’ (2.4m) 8’ (2.4m)
8’ (2.4m)
16
Lynx® SmartHub Installation and User Guide
