8-2 Power Max Service Manual

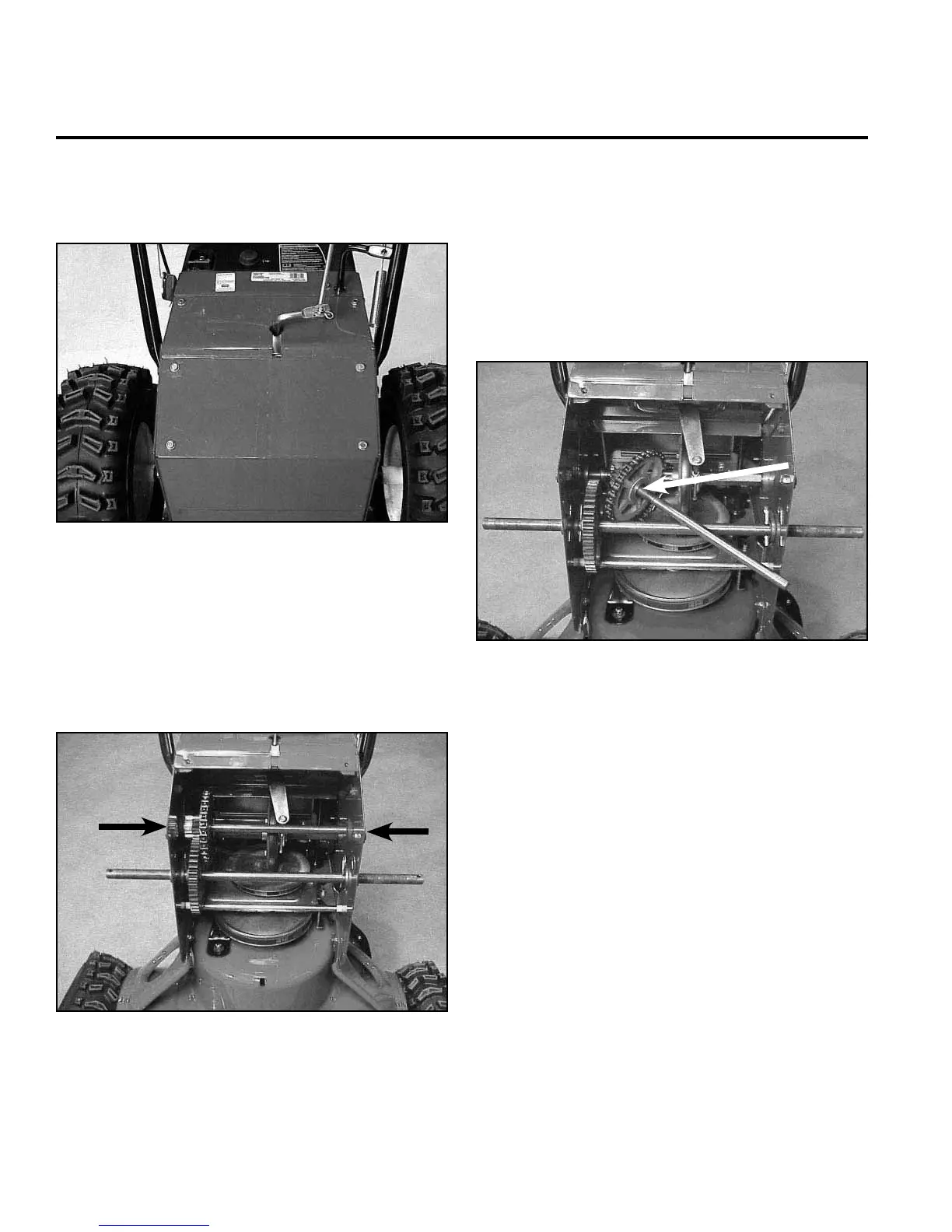

3. Remove the screw securing each end of the
sprocket shaft (Fig. 101).
Fig 101 MVC-9022X.jpg
4. Pull the right hand end of the shaft out of the traction
housing. Optional: The chain contains a master link,
which also can be removed (Fig. 102).
5. Slide the shaft out of the sprocket, slip the chain off,
then remove the sprocket.
Note: There is a thrust washer that may stick to the
bushing on the sprocket (Fig. 102).
Fig 102 MVC-771X.jpg
NON-WHEEL CLUTCH
TRACTION DRIVE SYSTEM
Fig 100 MVC-9012X.jpg
2. Remove the upper and lower covers and bottom pan
(Fig. 100).
A. Upper Cover C. Bottom Pan
B. Lower Cover
A
B
C
A. Thrust Washer
A
