8-3Power Max Service Manual
NON-WHEEL CLUTCH
TRACTION DRIVE SYSTEM

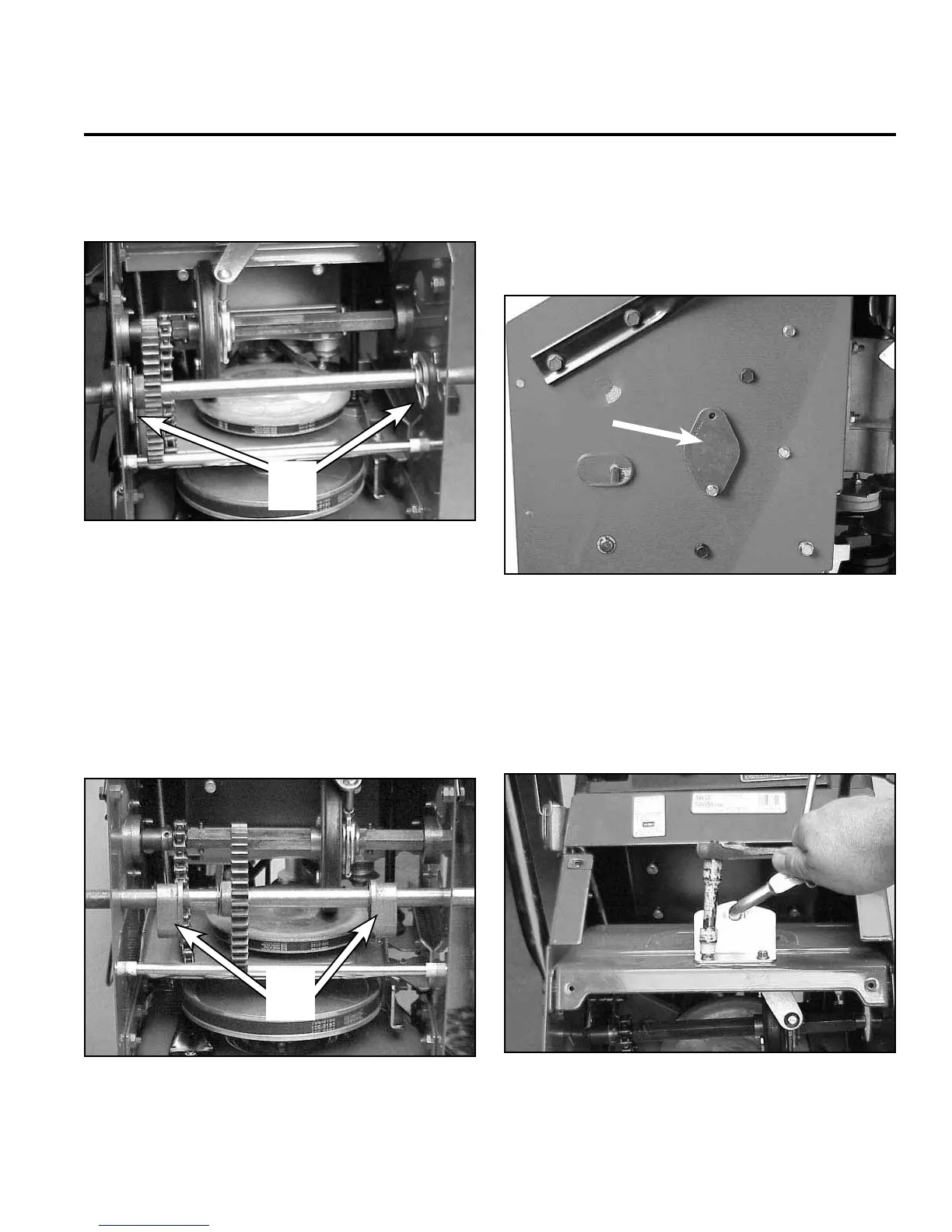

6. Remove the large hairpin on either end of the axle
(Fig. 103).
Fig 103 MVC-1900X.jpg
7. Slide the axle a little to the right. Move both axle
bearings inward (Fig. 104) then slide to the right until
the left end of the axle comes out of the side plate.
Withdraw the axle and remove the thrust washers,
bearings, gear and key.
Fig 104 MVC-1904X.jpg
Fig 106 MVC-1001X.jpg
9. Remove the two screws securing the shift bracket to
the frame (Fig. 106).
Fig 105 MVC-864XYZ.jpg
8. Remove the two capscrews securing the bearing
retainers to each side of the traction frame. Slide
the bearings and retainers off the hex shaft (Fig.
105). The bearings are secured to the retainers with
Loctite and are replaced as an assembly.
A. Hairpin Cotter
A. Axle Bearing
A
A. Bearing Retainer
