8-4 Power Max Service Manual
NON-WHEEL CLUTCH
TRACTION DRIVE SYSTEM

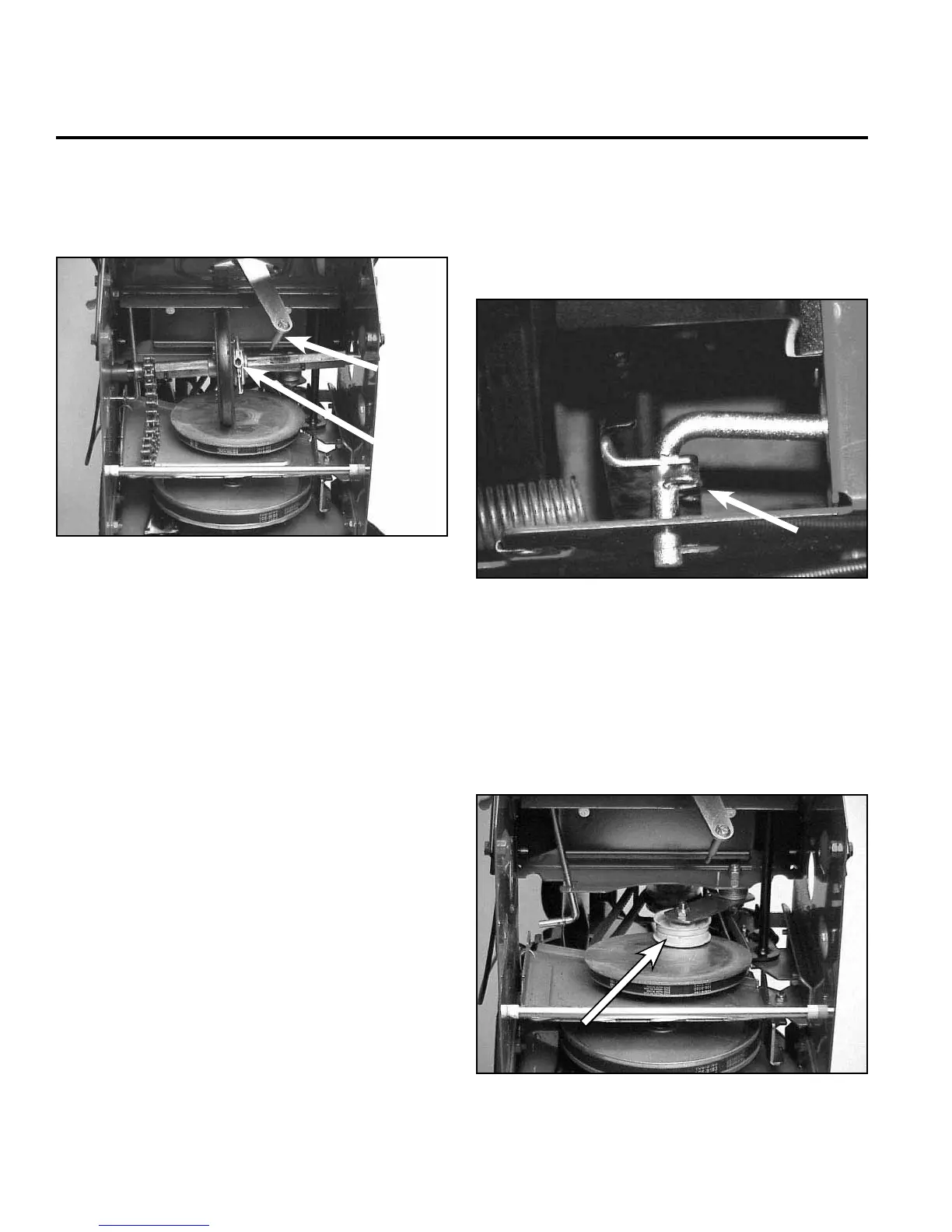

Fig 109 MVC-1003X.jpg
12. Slip the traction idler off the traction belt. This can be
done from either the top or the bottom. The traction
idler will rotate to this position (Fig. 109).
11. Remove the hairpin from the speed control link
(Fig. 108). This is most easily accessed from the
top of the machine. The link is on the left side under
the belt cover. Slide the link out of the pulley pivot
assembly.
Fig 108 MVC-897X.jpg
10. Now the shift rod bracket and hex shaft can be
moved to separate the shift rod from the trunion (Fig.
107).
Fig 107 MVC-1002X.jpg
A. Shift Rod B. Trunion
At this point the friction wheel can be replaced. The
hex shaft, sprocket, trunion and spacers are a single
assembly.
A. Hairpin Cotter
A
B
A
A. Traction Idler
A
