9-4 Power Max Service Manual
WHEEL CLUTCH
TRACTION DRIVE SYSTEM

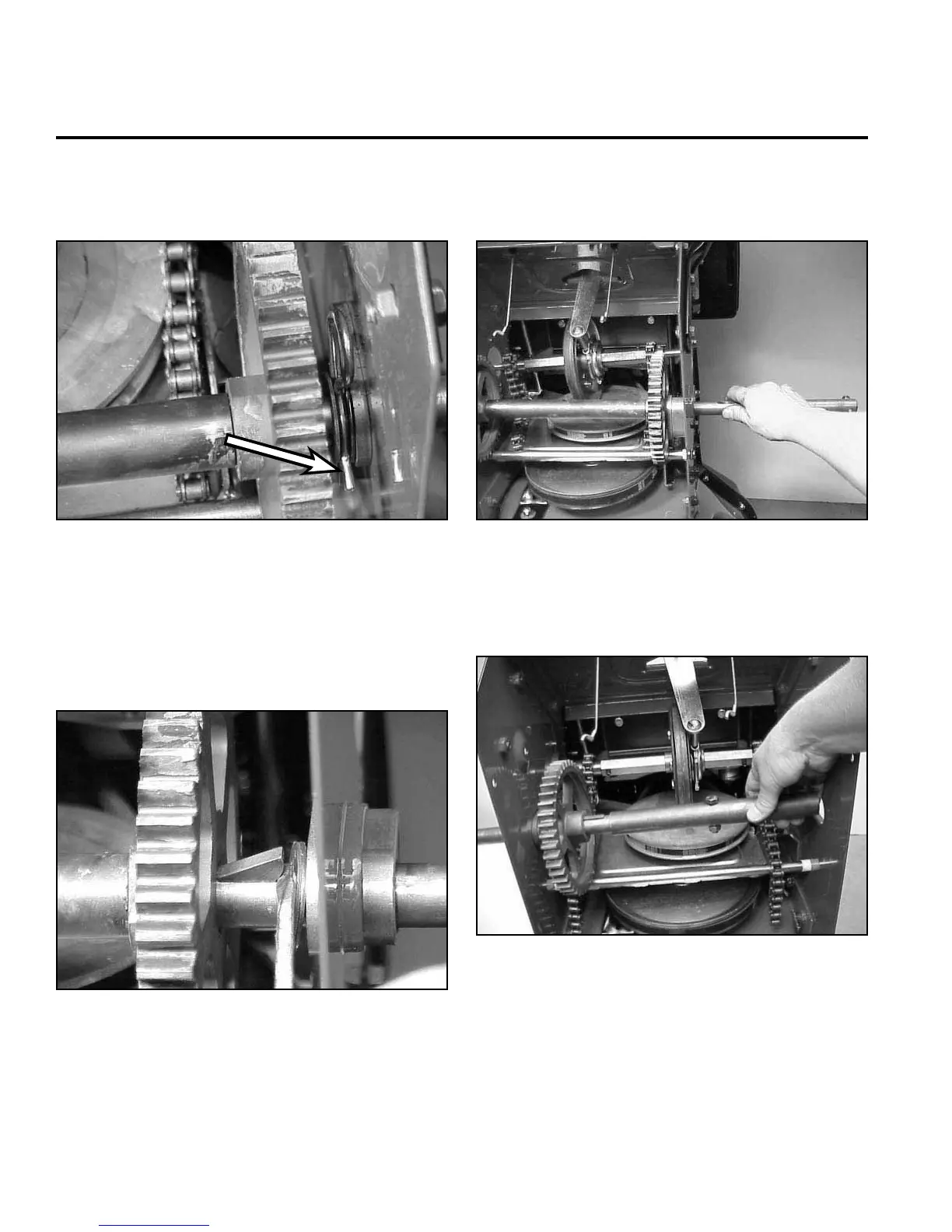

11. Remove woodruff key from one side of axle shaft by
sliding the 44-tooth gear inward towards the center
of the shaft to expose the woodruff key. Pry up on
the outside edge of the key to remove it (Fig. 127).
Fig 126 MVC-853X.jpg
10. Remove both hairpins on either side of the axle of
44-tooth gear (Fig. 126).
Fig 127 MVC-856X.jpg
12. Slide axle shaft out through bearing retainer one at a
time, holding onto the 44 tooth gear (Fig. 128).
Fig 128 MVC-858X.jpg
13. Slide tube of axle shaft through housing (Fig. 129).
Fig 129 MVC-859XYZ.jpg
