9-5Power Max Service Manual
WHEEL CLUTCH
TRACTION DRIVE SYSTEM

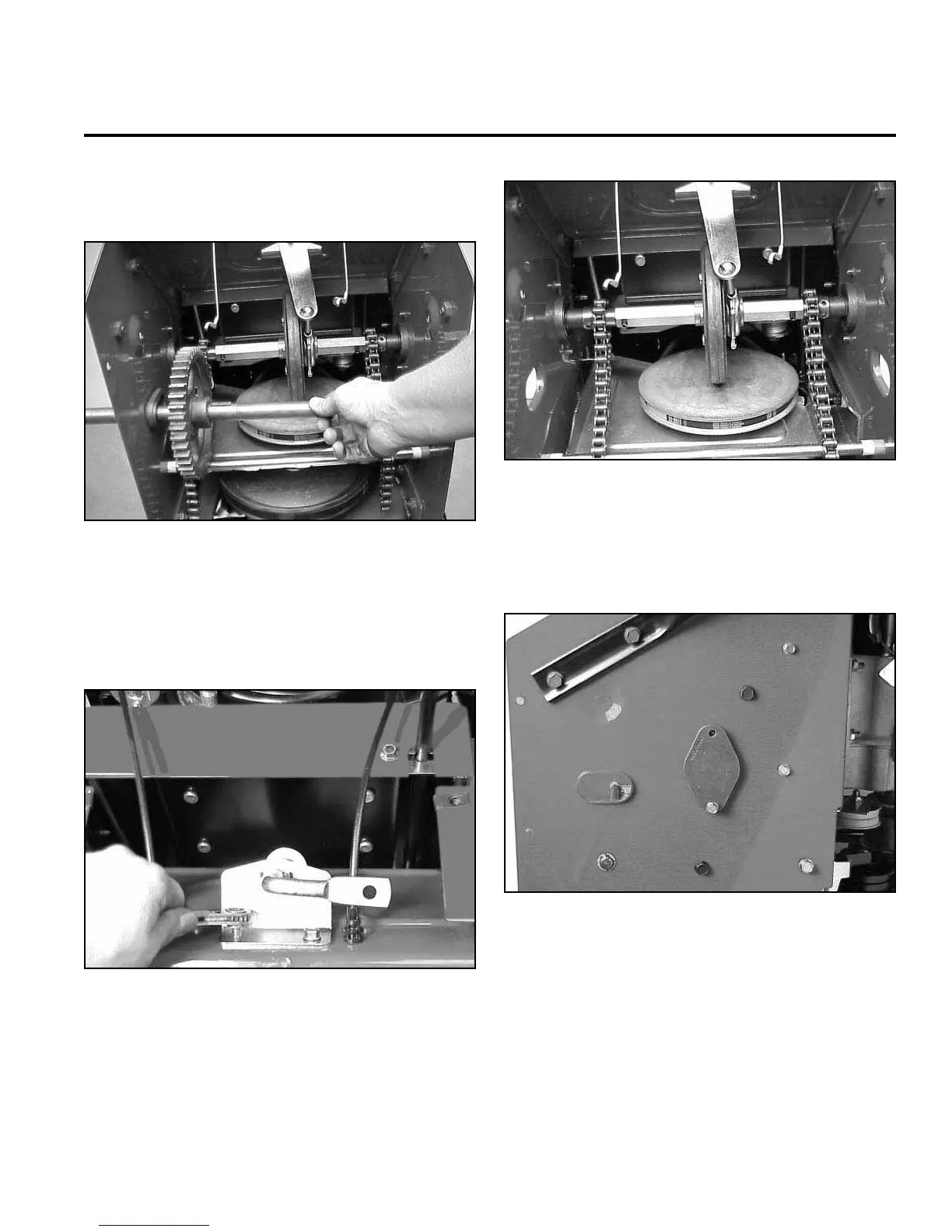

Fig 132 MVC-860X.jpg
16. If not already done, remove the bearing retainer that
holds the hex shaft (Fig. 133).
Fig 133 MVC-864XYZ.jpg
14. Now you can remove the other half of the axle shaft
with the 44-tooth gear (Fig. 130).
Fig 130 MVC-860XYZ.jpg
15. Remove the two screws from the shift rod bracket
and remove the traction control lever and bracket
assembly from the friction wheel (Fig. 131 and 132).
Fig 131 MVC-859X.jpg
