9-6 Power Max Service Manual
WHEEL CLUTCH
TRACTION DRIVE SYSTEM

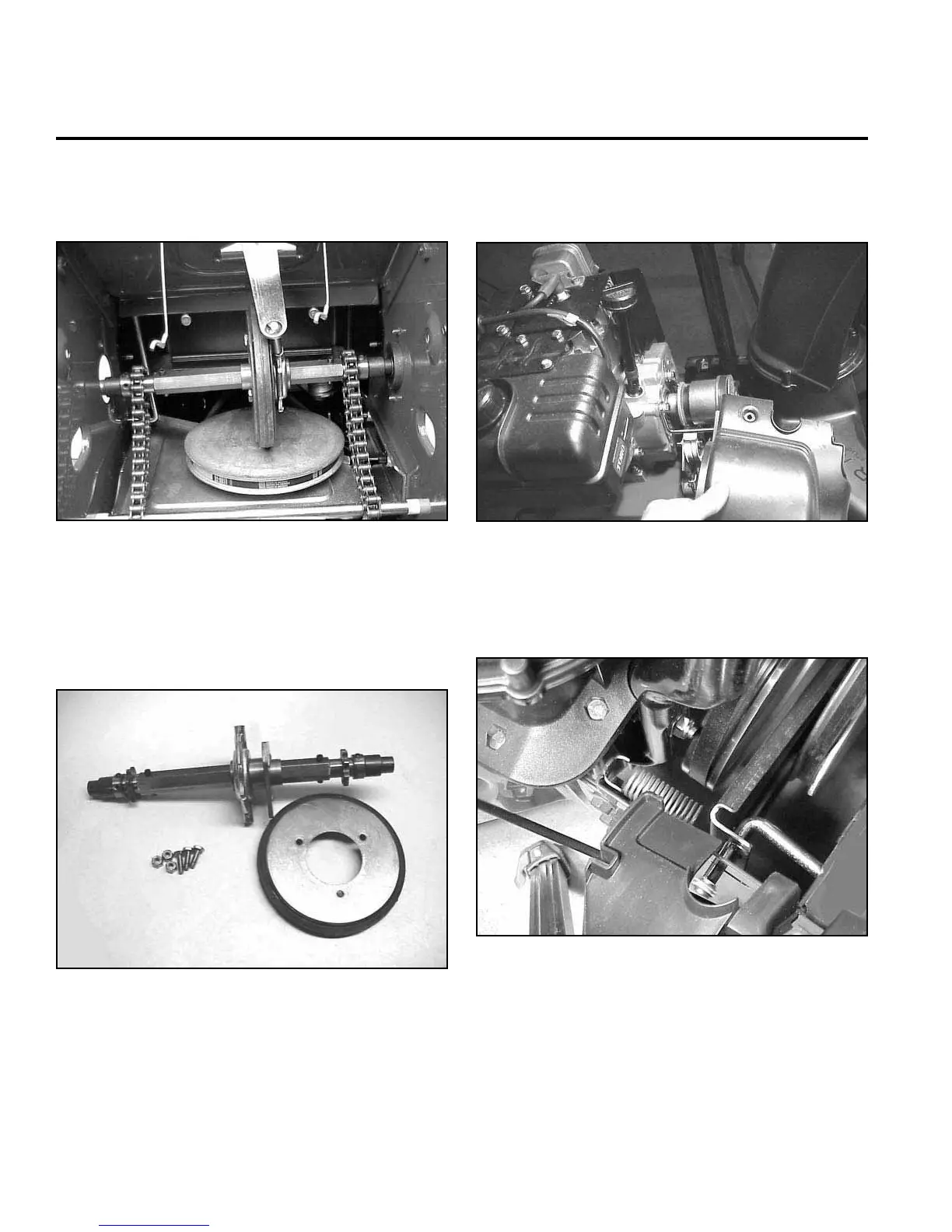

17. Remove hex shaft clutch assembly / friction wheel
from housing (Fig. 134).
Fig 134 MVC-867X.jpg
18. Remove friction wheel from hex shaft by removing
the 3 nuts and bolts that hold the friction wheel to the
plate on the hex shaft (Fig. 135).
Fig 135 MVC-858X2.jpg
19. Move snowthrower to the upright position and
remove belt cover (Fig. 136).
Fig 136 MVC-861XB.jpg
20. Remove extension cover (Fig. 137).
Fig 137 MVC-862X.jpg
