9-7Power Max Service Manual
WHEEL CLUTCH
TRACTION DRIVE SYSTEM

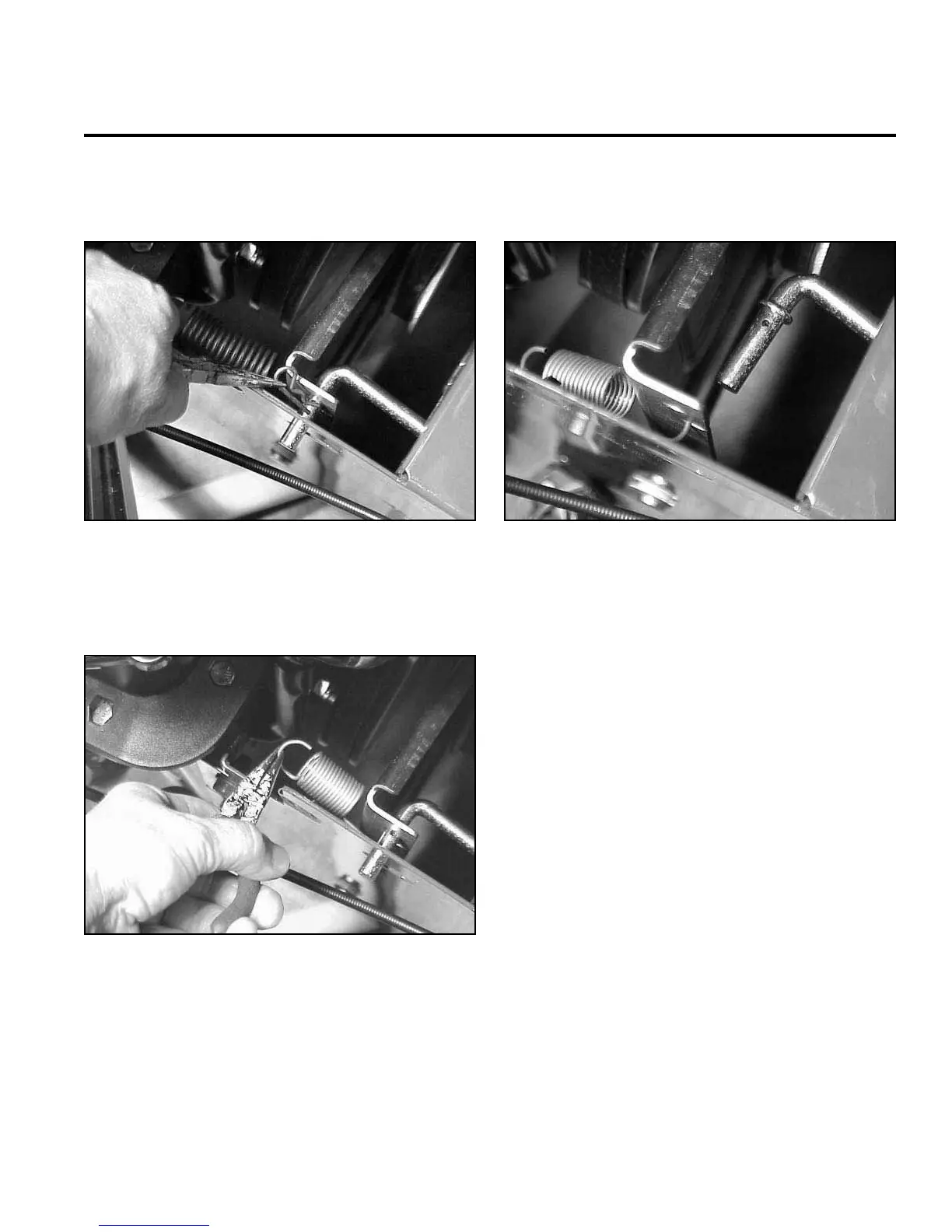

23. Slide speed control linkage from pivot pulley plate
assembly (Fig. 140).
Fig 140 MVC-865XB.jpg
24. Turn the snowthrower back onto the auger housing.
21. Remove hairpin cotter connecting speed control
linkage to the pivot pulley plate assembly (Fig. 138).
Fig 138 MVC-863XB.jpg
22. Remove extension spring from housing (Fig. 139).
Fig 139 MVC-864X.jpg
