WHEEL CLUTCH
TRACTION DRIVE SYSTEM

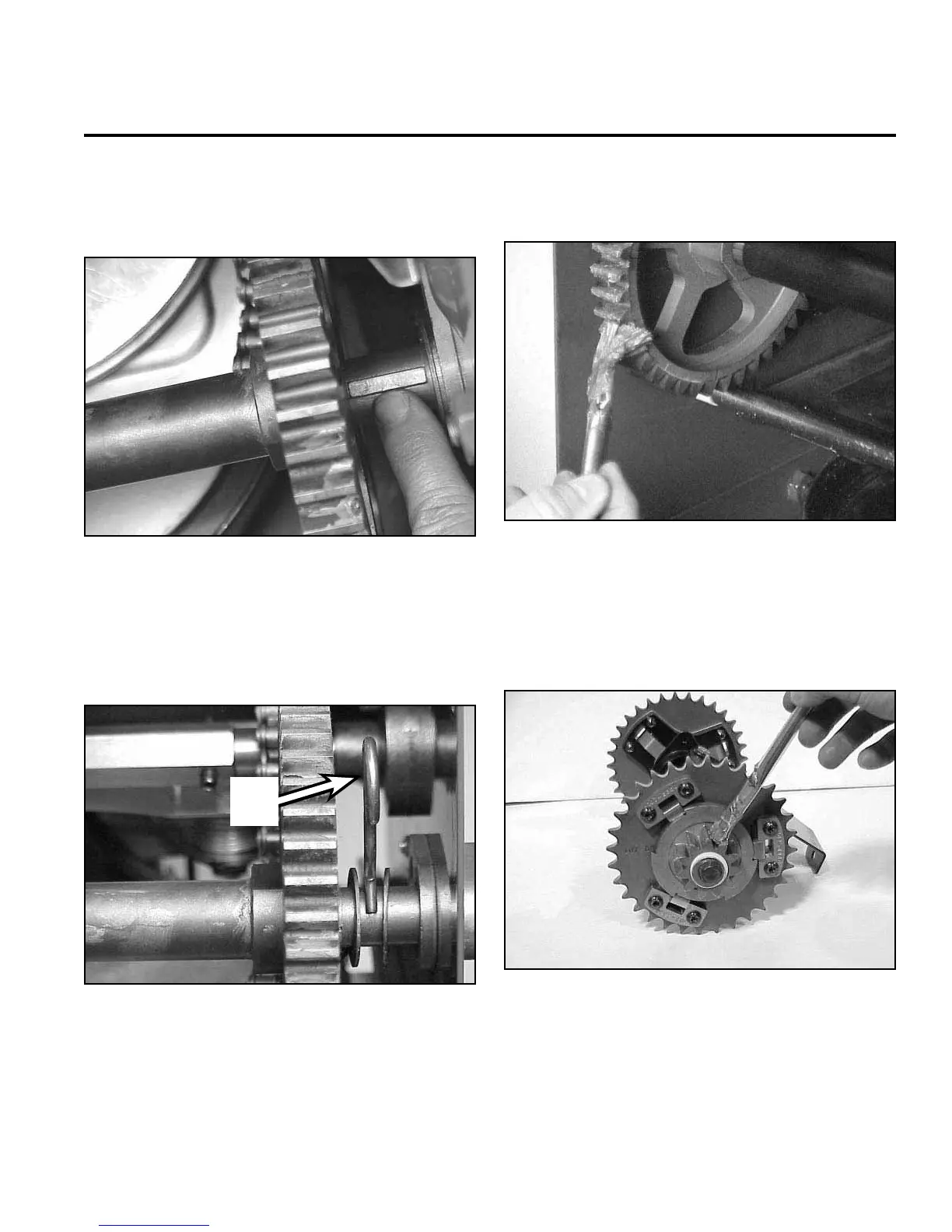

14. Position the hole for the hairpin cotter between the 2
washers and push the hairpin cotter into place (Fig.
162). Repeat for the other side.
16. Before installing the wheel clutch assembly, lightly
coat the 11-tooth gear of the wheel clutch with anti-
seize (Fig. 164).
Fig 162 MVC-061X.jpg
Fig 164 MVC-035X.jpg
15. Lightly coat the 44-tooth sprocket with anti-seize
(Fig. 163).
Fig 163 MVC-2205X.jpg
Fig 161 MVC-059X.jpg
13. Insert the woodruff key onto the axle shaft evenly
and make sure the 44-tooth gear can ride over the
shaft freely (Fig. 161).
A. Hairpin Cotter
A
