9-14 Power Max Service Manual
WHEEL CLUTCH
TRACTION DRIVE SYSTEM

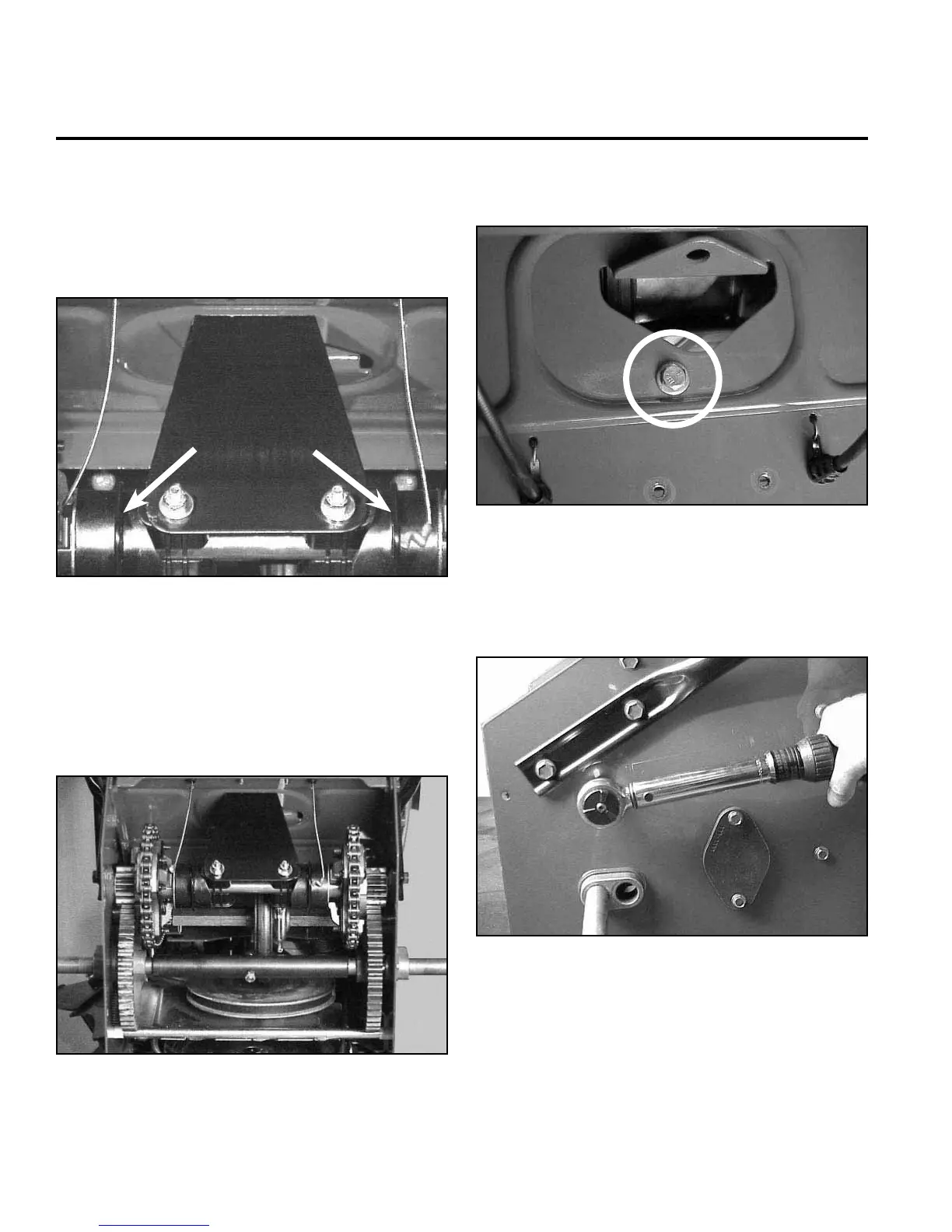

17. Install wheel clutch assembly with the brace shift
plate facing away and up towards housing making
sure collars are correctly installed with the “RIGHT”
and “LEFT” facing inward and the right and left
fl anges are facing you (Fig. 165).
Fig 165 MVC-2200X.jpg
18. Route the chains around the 32-tooth gear of the
clutch assembly (Fig. 166).
Fig 166 MVC-2207X.jpg
19. Attach the shift brace plate to the housing (Fig. 167).
Fig 167 MVC-894XYX.jpg
A
A. Left Collar B. Right Collar
B
20. Torque the two intermediate shaft screws to 170 to
300 in-lbs. (19.2 to 33.9 Nm) (Fig. 168).
Fig 168 MVC-8562X.jpg
