9-15Power Max Service Manual
WHEEL CLUTCH
TRACTION DRIVE SYSTEM
Fig 171 MVC-876XYZ.jpg

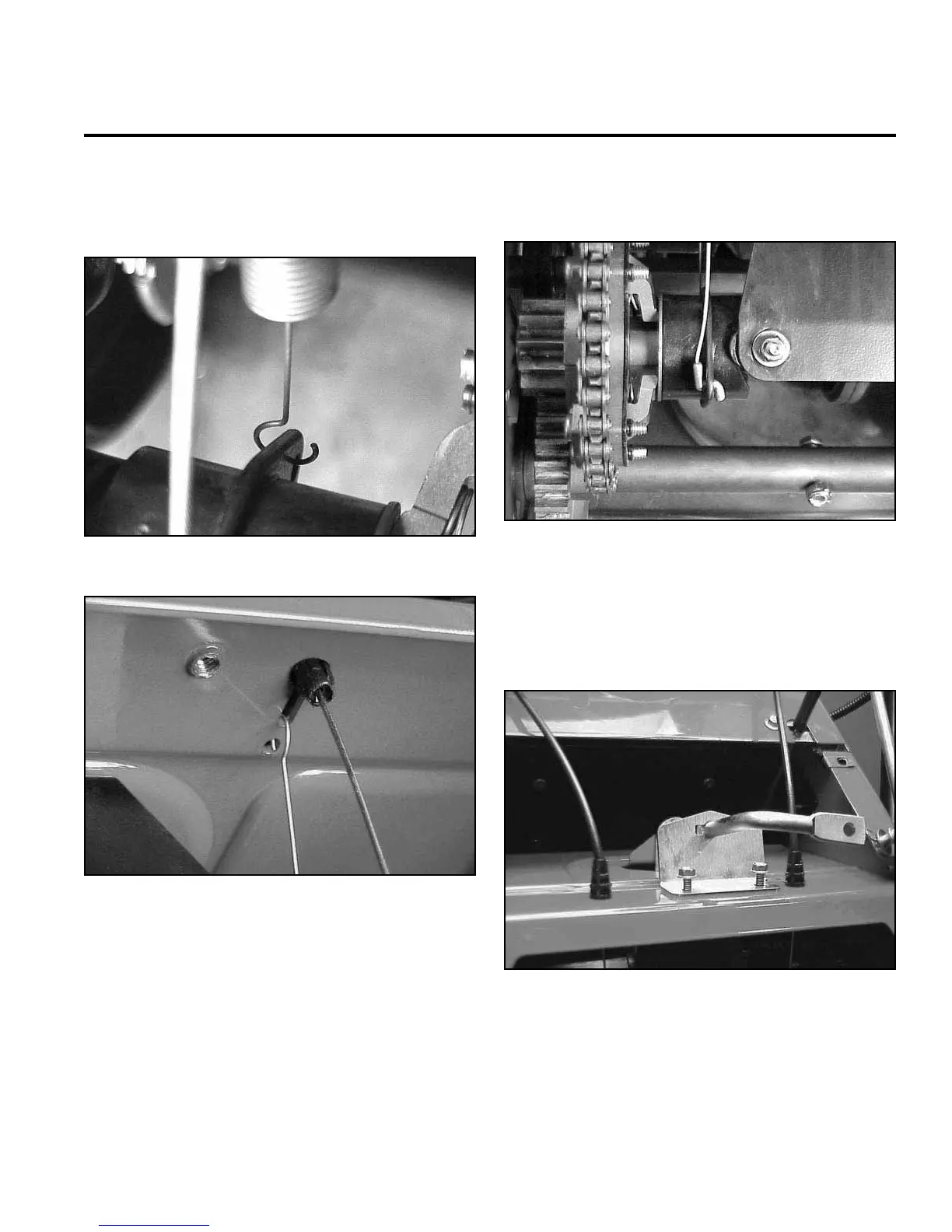

22. Install Z bend of the clutch cable from outside to
inside of the shift collar (Fig. 171).
Fig 170 MVC-899XB.jpg
Fig 172 MVC-859X2.jpg
23. Install shift rod / traction rod lever onto the housing
(Fig. 172) making sure the traction control fi ts into
the friction wheel (Fig. 173).
21. Install the 2 extension springs from the lower part of
the shift collar fl ange (Fig. 169) to the housing (Fig.
170).
Fig 169 MVC-032XZV.jpg
