WHEEL CLUTCH
TRACTION DRIVE SYSTEM

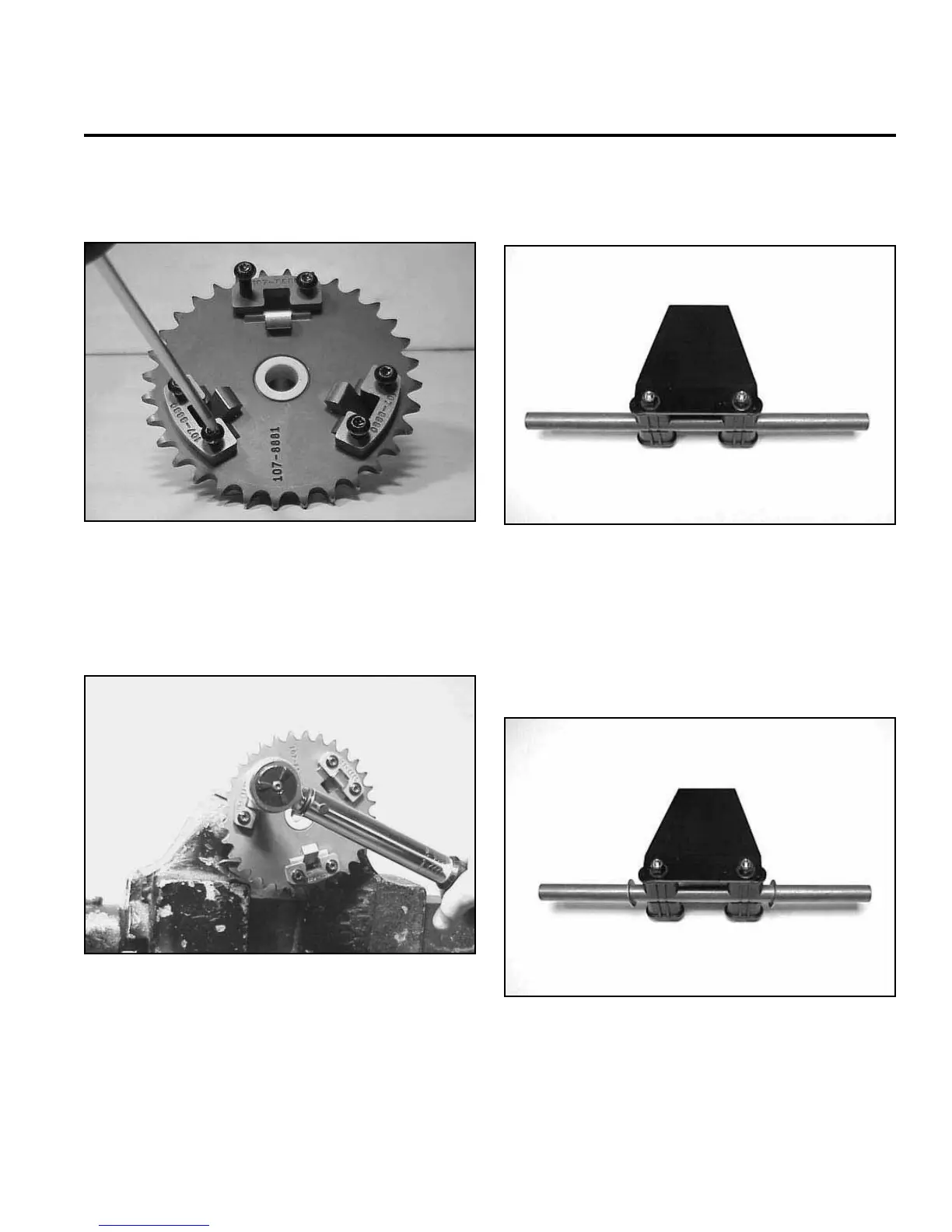

3. Clamp or hold gear and turn it over to properly install
the 3 pawl supports and torx screws (Fig. 192).
Fig 192 MVC-904X.jpg
4. Torque the T-27 torx screws to 100 to 125 in-lbs.
(11.3 to 14.1 Nm) (Fig. 193).
Fig 193 MVC-905XWC.jpg
5. Install the 4 guide collars to shaft with shift brace
plate (Fig. 194).
Fig 194 MVC-1909X.jpg
6. Torque the screws no more then 50 - 70 in-lbs. (5.65
– 7.9 Nm).
7. Slide fl at washers next to guides (Fig. 195).
Fig 195 MVC-1911X.jpg
