WHEEL CLUTCH
TRACTION DRIVE SYSTEM
Fig 196 MVC-880X.jpg

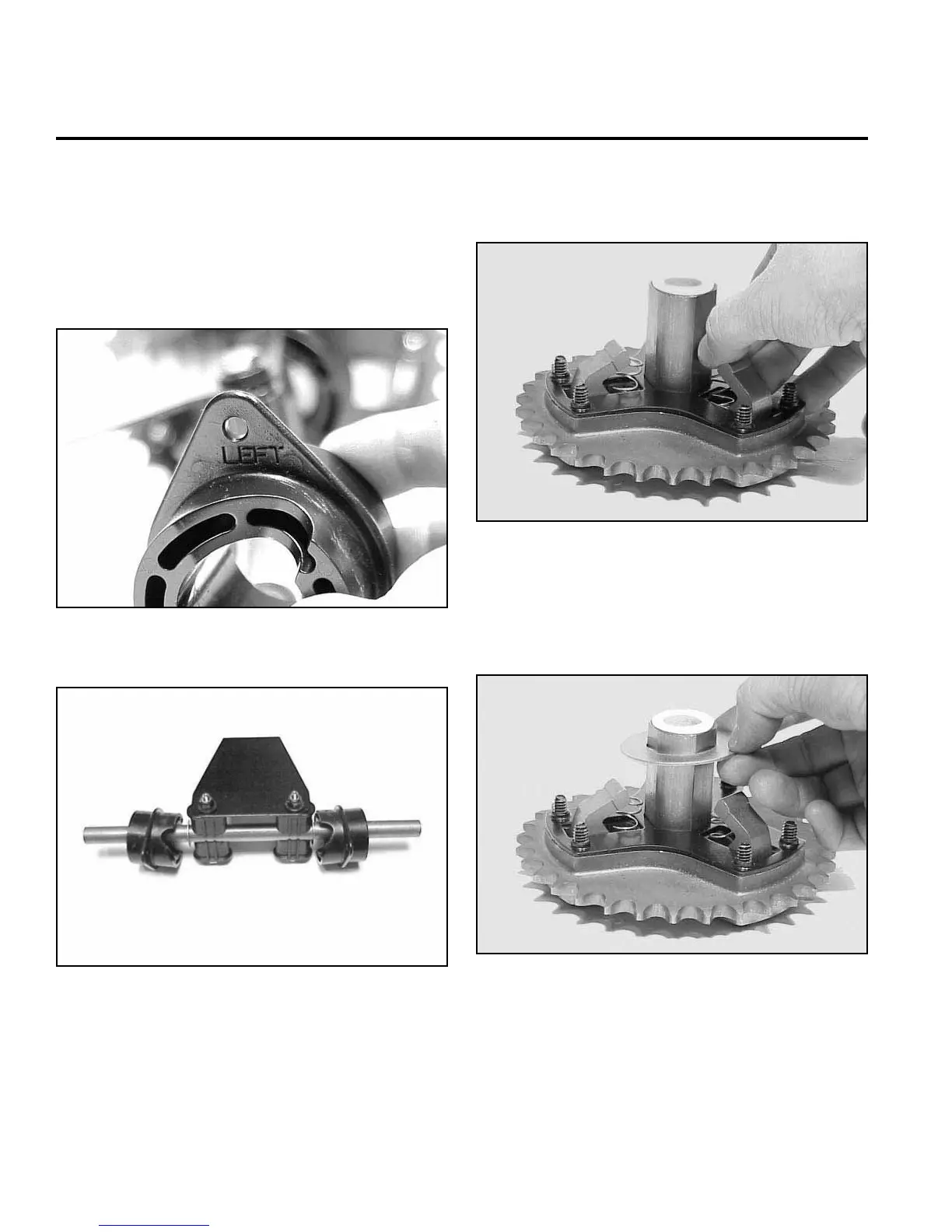

8. Install RIGHT and LEFT collar.
Note: The top fl anges of the shift collars have “left”
and “right” stamped into them (Fig. 196).
Install accordingly on the right and left ends of
the shaft with the shift brace plate oriented as
shown (Fig. 197).
Fig 197 MVC-1915X.jpg
9. Install compression springs under the pawls (Fig.
198).
Fig 198 MVC-001XB.jpg
Fig 199 MVC-002X.jpg
10. Slide thrust washer onto the 32-tooth sprocket gear
(Fig. 199).
