9-23Power Max Service Manual
WHEEL CLUTCH
TRACTION DRIVE SYSTEM

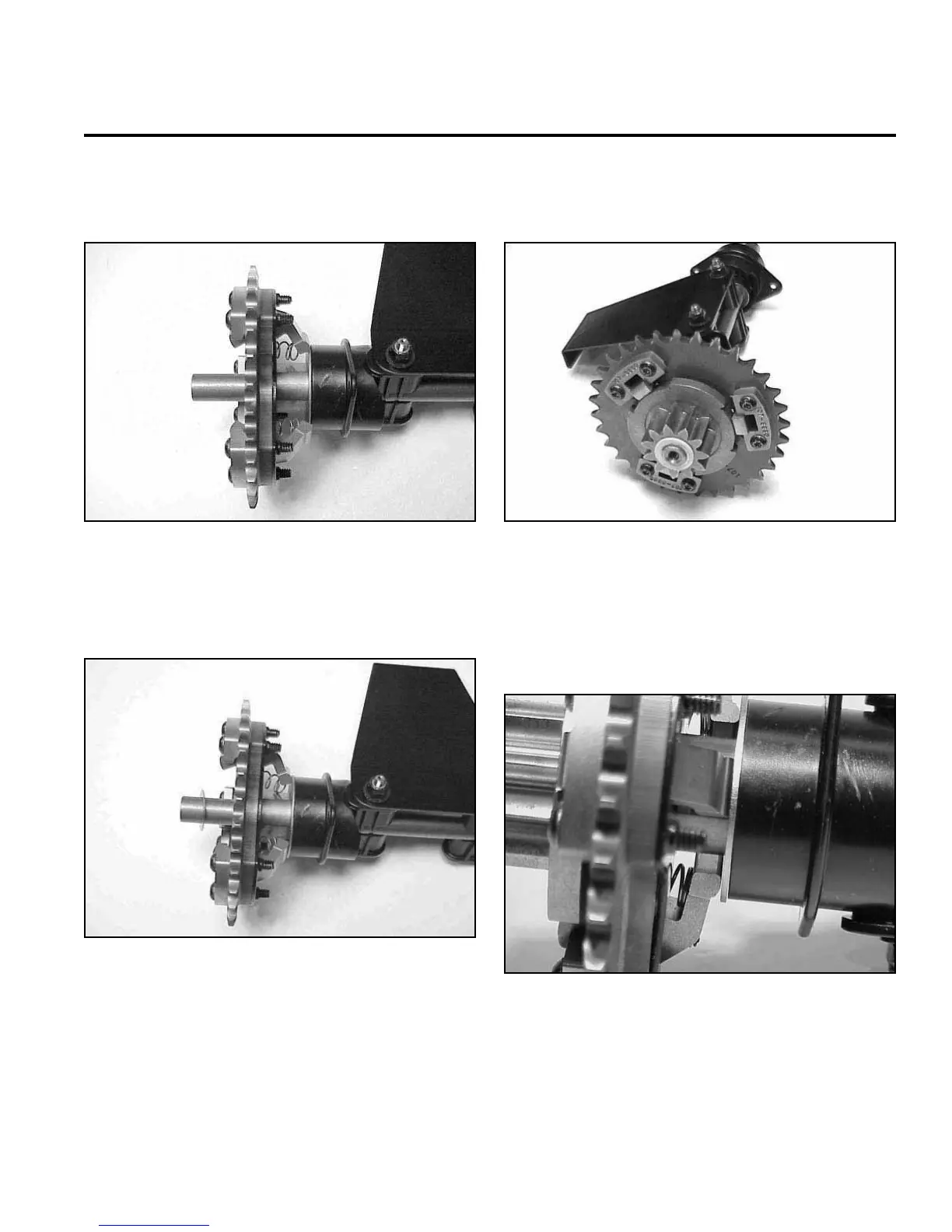

Fig 200 MVC-1180X.jpg
11. Slide the complete 32-tooth gear sprocket onto the
shaft (Fig. 200).
12. Install fl at washer (Fig. 201).
Fig 201 MVC-1177X.jpg
13. Make sure 11-tooth gear slides on so it is fl ush with
the end of the shaft (Fig. 202).
Fig 202 MVC-1184X.jpg
Fig 203 MVC-006X.jpg
14. Make sure the pawls are up against the thrust washer
and the springs are not binding and are compressing
properly (Fig. 203).
