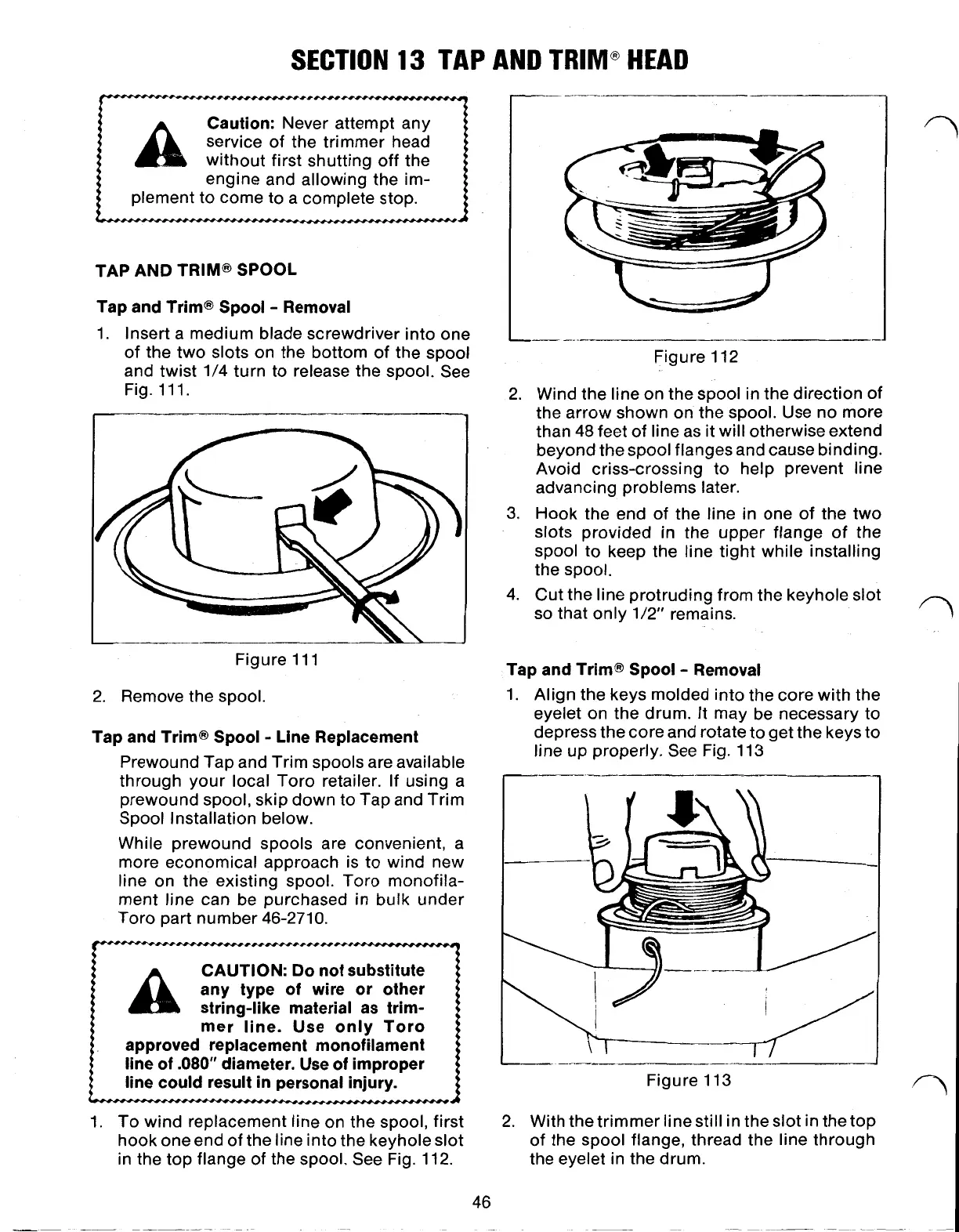

SECTION
13
TAP AND
TRIM@
HEAD
Caution:
Never attempt any
service of the trimmer head
without first shutting off the
engine and allowing the im-
plement to come to a complete stop.
TAP AND SPOOL
Tap and Trim@ Spool
-
Removal
1. Insert a medium blade screwdriver into one
of the two slots on the bottom of the spool
and twist 1/4 turn to release the spool. See
Fig. 111.
Figure 11 1
2. Remove the spool.
Tap and Trim@ Spool Line Replacement
Prewound Tap and Trim spools are available
through your local Toro retailer. If using a
prewound spool, skip down to Tap and Trim
Spool Installation below.
While prewound spools are convenient, a
more economical approach is to wind new
line on the existing spool. Tor0 monofila-
ment line can be purchased in bulk under
Toro part number 46-2710.
CAUTION:
Do
not substitute
any type
of
wire or other
string-like material as trim-
mer line. Use only Toro
approved replacement monofilament
I
1.
To
wind replacement line on the spool, first
hook one end of the line into the keyhole slot
in the top flange of the spool. See Fig. 112.
Figure 112
2. Wind the line on the spool in the direction of
the arrow shown on the spool. Use no more
than 48 feet of line as it will otherwise extend
beyond the spool flanges and cause binding.
Avoid criss-crossing to help prevent line
advancing problems later.
3.
Hook
the end of the line in one
of
the two
slots provided in the upper flange of the
spool to keep the line tight while installing
the spool.
4. Cut the line protruding from the keyhole slot
so
that only 1/2" remains.
Tap and Trim@ Spool
-
Removal
1. Align the keys molded into the core with the
eyelet on the drum. It may be necessary to
depress the core and rotate to get the keys to
line up properly. See Fig. 113
\
Figure 113
2. With the trimmer line still in the slot in the top
of the spool flange, thread the line through
the eyelet in the drum.
