Tap and Trim@ Spool Installation (cont‘d)
3. Align the two screwdriver slots with the keys
in the core and push the spool partially onto
the core.
4. Pull on the line to release it from the spool
flange then push the spool firmly onto the
core until it “snaps” into place.
TAP AND TRIM@ HEAD
Tap and Trim@ Head Disassembly
1. Insert a medium blade screwdriver into one
of the two slots on the bottom of the spool
and twist 1/4 turn to release the spool.
2. Remove the spool.
3. While holding the drum stationary, unscrew
the core and driver assembly by rotating
them counterclockwise. See Fig. 114.
4. Remove the core, the driver, the washer and
the spring.
5. Pull the drum up and off the drive shaft.
Tap and Trim@ Head Inspection
1. Inspect the drum and spool for any obvious
damage to the plastic.
2. Make sure that the eyelet in the drum is intact
and that the areas that contact the trimmer
line are smooth.
3. Check that the rivet directly opposite the
eyelet is still in place. (The purpose of the
rivet is to counterbalance the eyelet.)
Tap and Trim@ Head Reassembly
1. Mount the drum on the drive shaft making
sure that it mates properly with the coil pin.
47
2. Center the spring on the drive shaft and then
place the washer, driver and core onto the
shaft as an assembly. See Fig. 114.
SPRING
WASHER

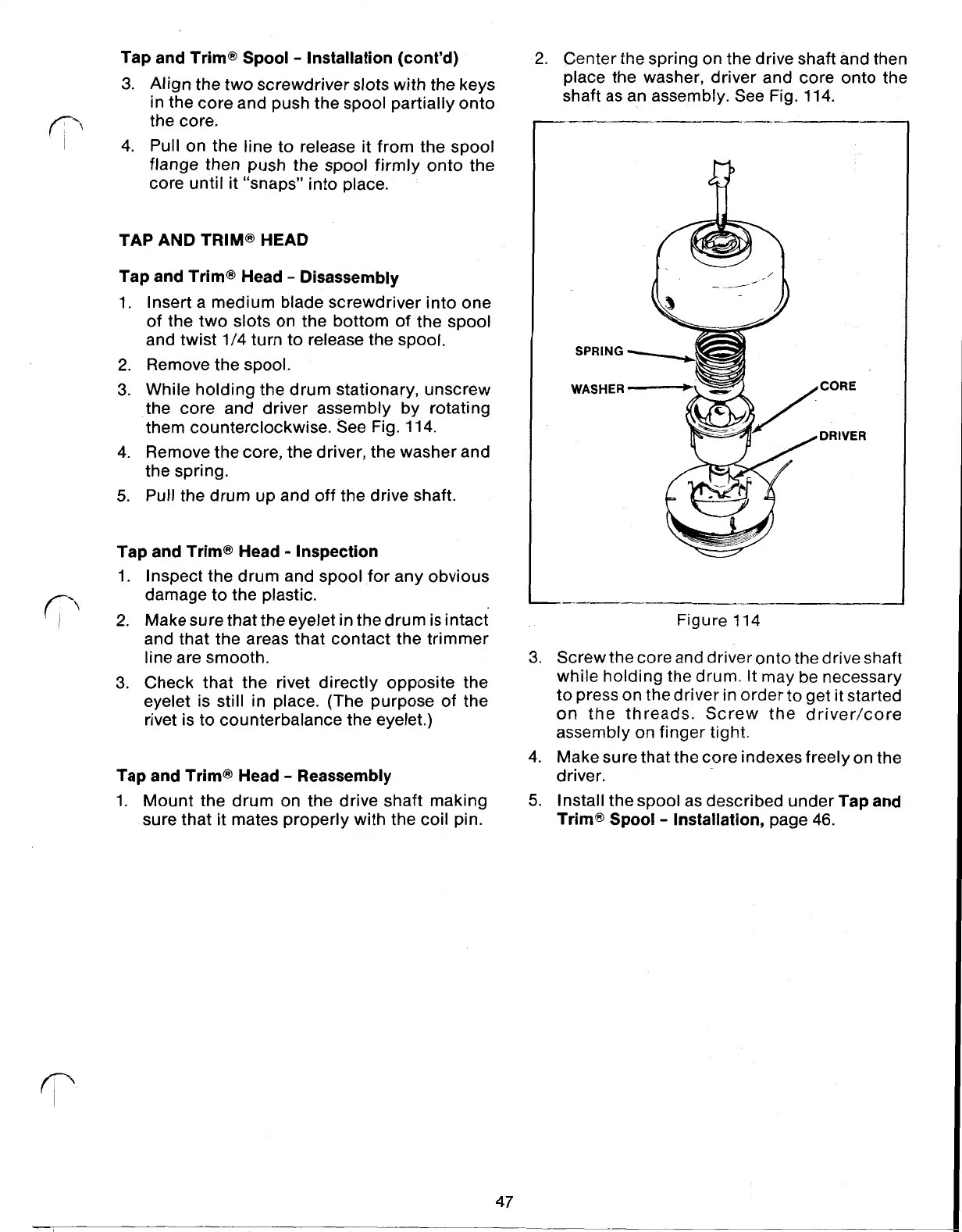

Figure 114
3. Screw the core and driver onto the drive shaft
while holding the drum. It may be necessary
to press on the driver in order to get
it started
on the threads. Screw the driver/core
assembly
on finger tight.
4. Make sure that the core indexes freely on the
driver.
5. Install the spool as described under Tap and
Trim@ Spool Installation,
page 46.
