HYDROSTATIC DRIVE SYSTEM
5-13
Toro Timecutter SW/SWX Service Manual
5

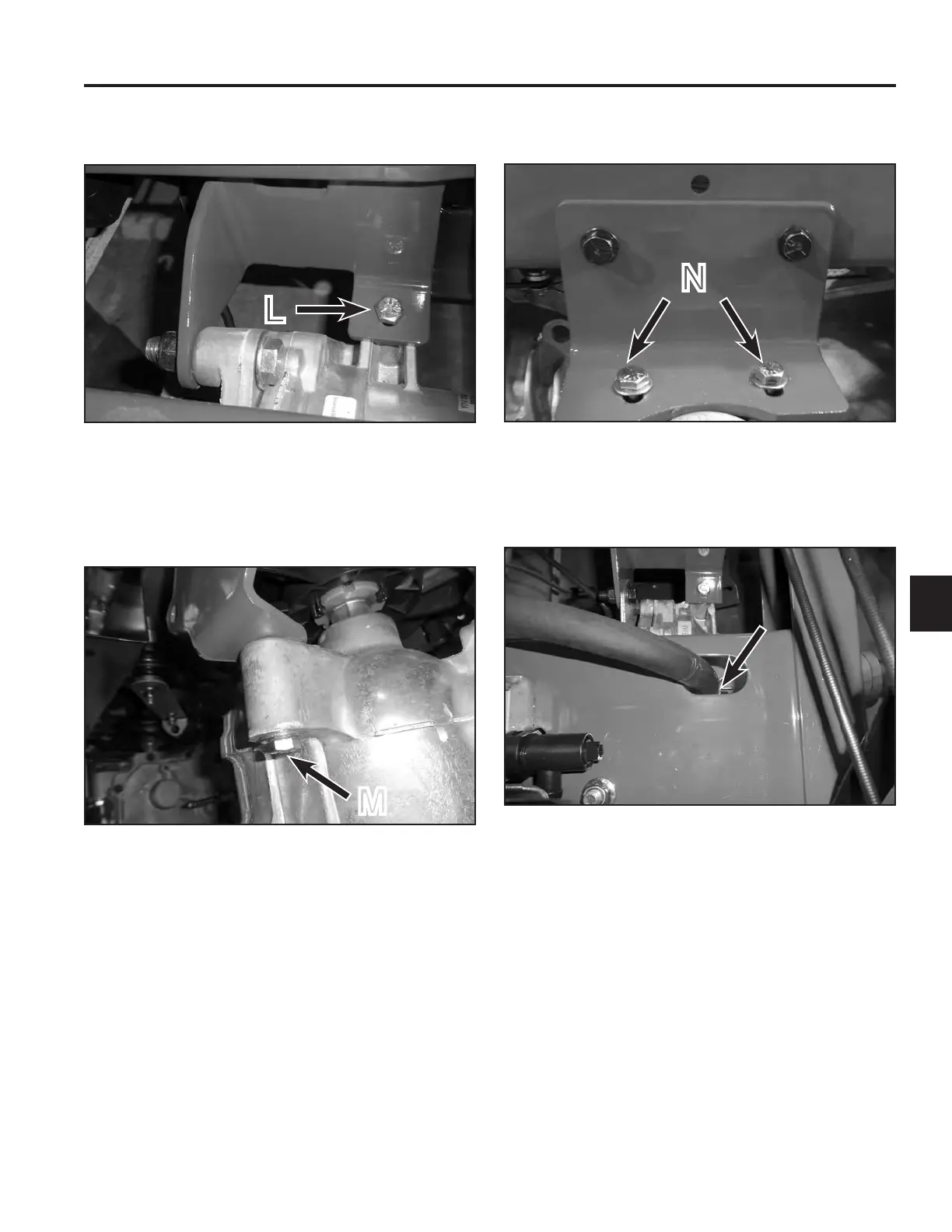

5th - Torque fasteners (N) to specication – 30 ft-lbs.
(40 Nm) (Fig. 080)
Fig. 080 PICT-1100
5. If equipped, connect the hydro reservoir hoses at the
hydro tting (MX shown) (Fig. 081).
Fig. 081 PICT-1104
3rd - Torque fastener (L) to specication – 17 ft-lbs.
(23 Nm) (Fig. 078)
Fig. 078 PICT-1098
4th - Torque fasteners (M) to specication – 17 ft-lbs.
(23 Nm) (Fig. 079)
Fig. 079 PICT-1099
L
M
N
