HYDROSTATIC DRIVE SYSTEM
5-14
Toro TimeCutter SW/SWX Service Manual
5

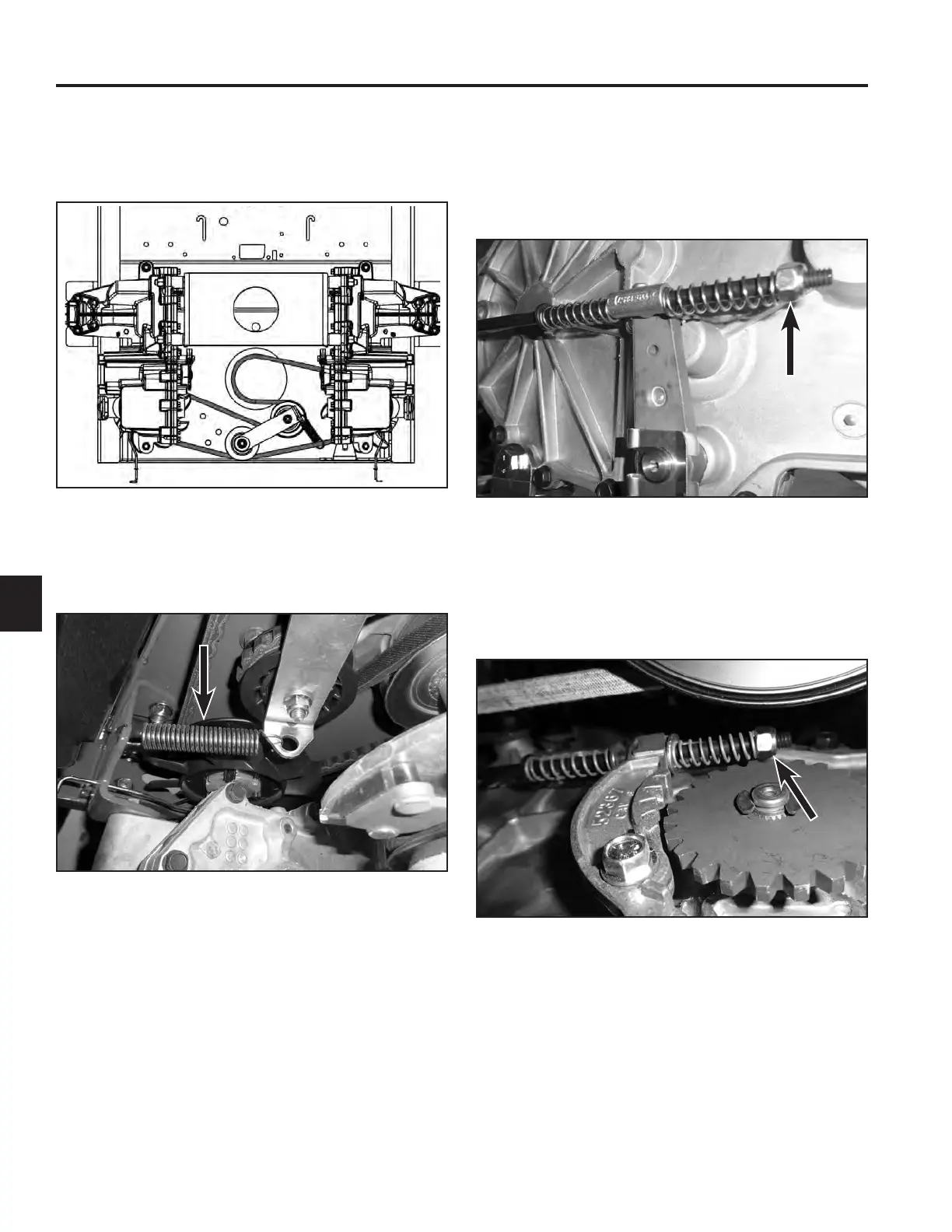

6. Install the hydro drive belt and verify proper routing
(Fig. 082).
Drive Belt Routing - bottom view
7. Install and orient the drive belt tensioner spring as
shown (Fig. 083).
Fig. 083 PICT-1091
8. Install the brake rod to the hydro:
All TimeCutter SW 50 inch and SWX 50 inch models
only – Install the brake rod spring and nut and torque
nut to specication - 30 in-lbs. (3 Nm). Hold the rod
securely while tightening nut (Fig. 084).
Fig. 084 PICT-1101
All TimeCutter SW 32 & 42 inch and SWX 42 inch
models – Install the brake rod washer, spring and nut
and torque nut to specication - 30 in-lbs. (3 Nm). Hold
the rod securely while tightening nut (Fig. 085).
Fig. 085 PICT-1102
Fig. 082 PICT-1093
