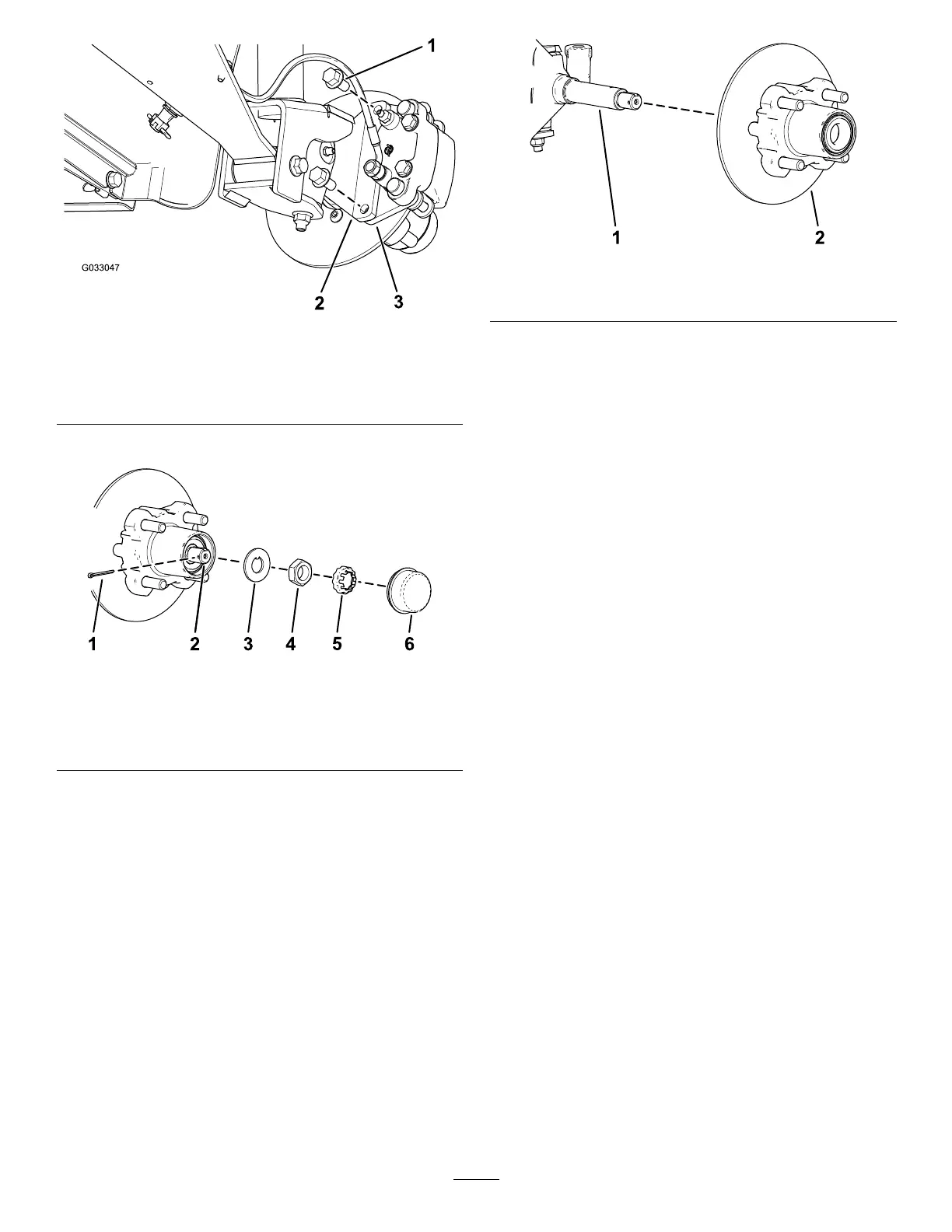

g033047
Figure34
1.Flange-headbolts(3/8x
3/4inch)
3.Caliperbracket(brake
assembly)
2.Spindle
4.Removethedustcapfromthehub(Figure35).
g192346
Figure35
1.Cotterpin4.Spindlenut
2.Spindle
5.Nutretainer
3.Tabwasher6.Dustcap
5.Removethecotterpinandnutretainerfromthe
spindleandspindlenut(Figure35).
6.Removethespindlenutfromthespindle,and
separatethehubandrotorassemblyfromthe
spindle(Figure35andFigure36).
g192347
Figure36
1.Spindle
2.Hubandrotorassembly
7.Wipecleanthespindlewitharag.
8.Repeatsteps1through7tothehubandrotorat
theothersideofthemachine.
