INSTALLATION PROCEDURE FOR OPTIONAL EQUIPMENT EO15-33001A
2. Strip Module
2- 10

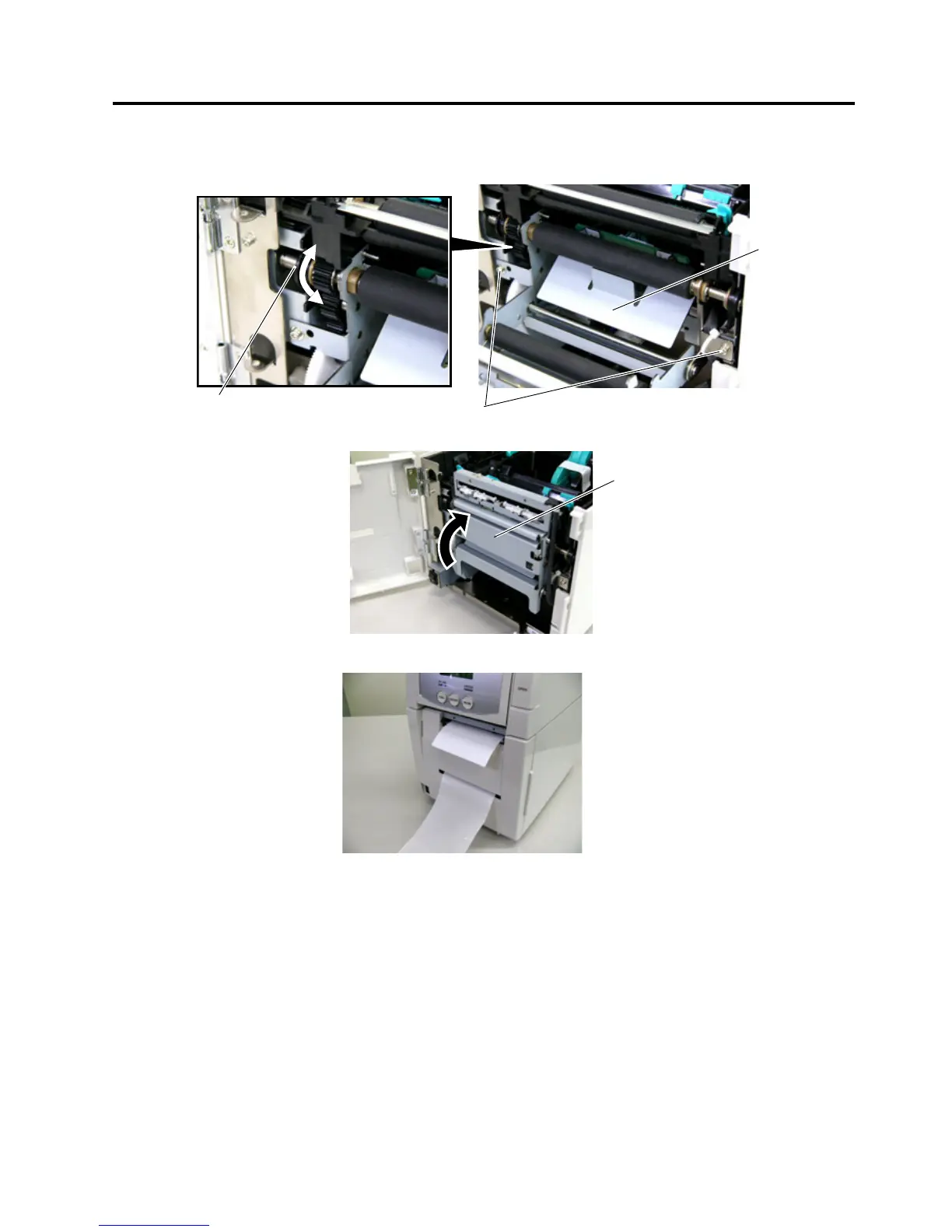

5. Secure the Strip Unit to the printer with the two screws. Make sure that the Feed Roller Gear rotates
smoothly.
6. Close the Strip Unit.
7. Close the Strip Module Cover. Perform an operation check for a proper strip issue.
• Media loading procedure------------- Owner’s Manual, Section 2.3
• Operation check------------------------ Owner’s Manual, Section 2.9
• System mode setting------------------ System Mode Manual
• Cleaning --------------------------------- Owner’s Manual, Section 4.1.4
Strip Unit
SMW-3x6 Screw
Strip Unit
Feed Roller Gear
