Toshiba B-SA4T Series User Manual

INSTALLATION PROCEDURE FOR OPTIONAL EQUIPMENT EO15-33001A
(Revision Date: Feb. 25, 2008)
8. RFID Module: B-SA704-RFID-U2-EU-R
8- 7

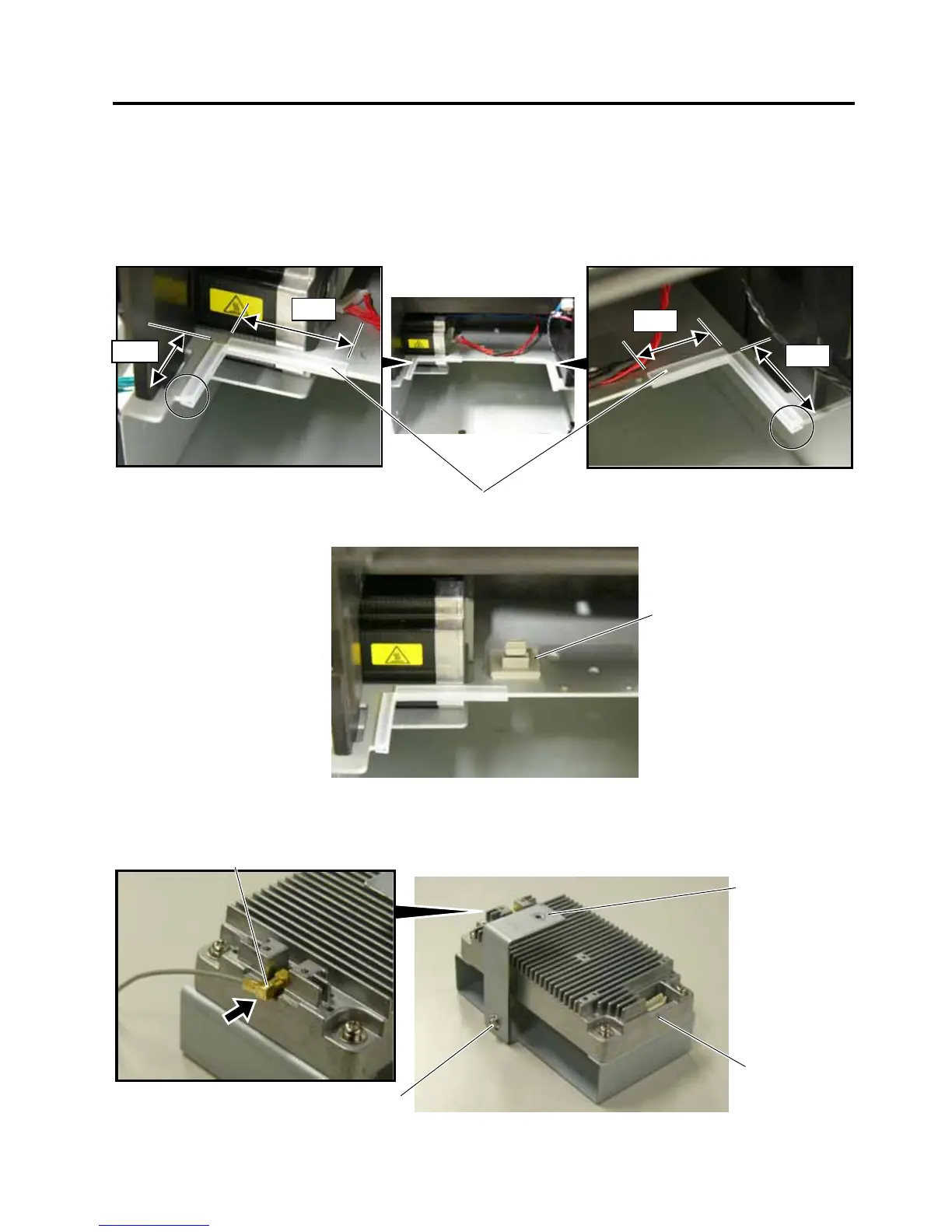

9. Fit the supplied Edge Guards on the metal plate all the way to their bottoms.
• Please be careful not to injure your hands while fitting the Edge Guards.
• Fit the long Edge Guards and short ones on the correct positions respectively, as indicated in the
pictures below.
• The Edge Guards should not protrude from the edge of the metal plate (portions enclosed with
circles).
10. Attach the Cable Clamp to the position shown below.
11. Temporarily secure the RFID Module Attaching Plate to the RFID Module with a supplied Double
Sems Screw. Connect the Antenna Cable to the RFID Module until it clicks.
Edge Guard
Short
Long
Short
Long
Cable Clamp
RFID Module
RFID Module
Attaching Plate
Double Sems Screw M-3x6
A
ntenna Cable

Toshiba B-SA4T Series Specifications

General

Print Technology	Thermal Transfer / Direct Thermal
Print Speed	Up to 152.4 mm/sec (6 ips)
Max Print Width	104 mm (4.09")
Resolution	300 dpi
Connectivity	USB 2.0
Optional Interfaces	Wireless LAN
Barcodes	UPC/EAN/JAN, Code 39, Code 93, Code 128, EAN 128, NW7, Industrial 2 of 5, Postnet, RM4SCC, KIX-Code
2D Codes	Data Matrix, PDF417, QR Code, Maxi Code, Micro PDF417, Aztec Code
Media Thickness	0.06 – 0.19 mm
Media Roll Diameter	Max. 127 mm
Ribbon Length	Up to 300 m
Weight	15 kg
