Toshiba B-SA4T Series User Manual

INSTALLATION PROCEDURE FOR OPTIONAL EQUIPMENT EO15-33001A
(Revision Date: Feb. 25, 2008)
8. RFID Module: B-SA704-RFID-U2-EU-R
8- 6

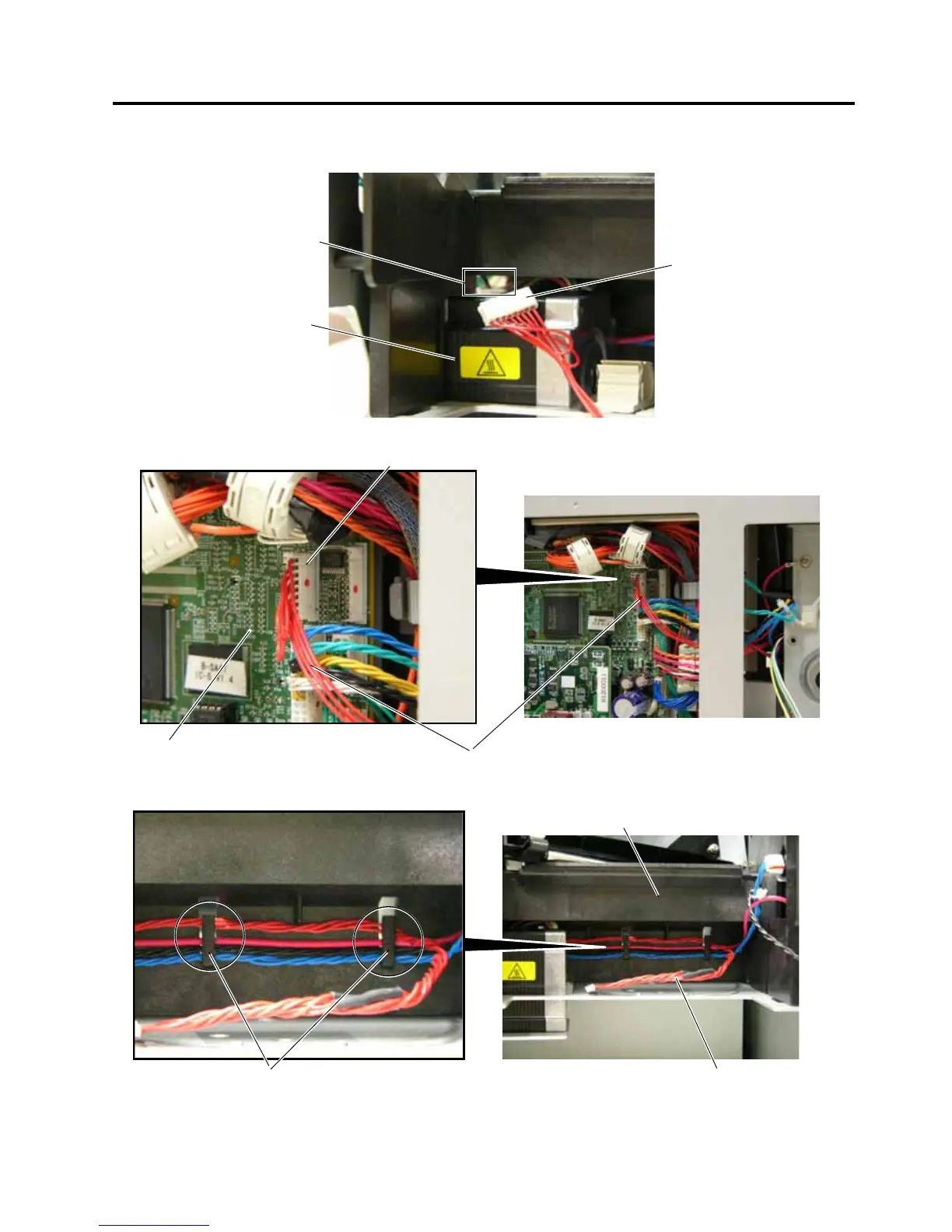

6. As the following picture shows, pass the Interface Cable through the opening behind the Stepping
Motor so that the cable reaches the Main PC Board.
7. Connect the Interface Cable to CN6 on the Main PC Board.
8. Put the Interface Cable on the hooks provided on the Media Path Frame.
Interface Cable
Opening
Stepping Moto
r
Interface Cable
CN6
Main PC Board
Interface Cable
Hook
Media Path Frame
