INSTALLATION PROCEDURE FOR OPTIONAL EQUIPMENT EO15-33001A
1. Cutter Module
1- 5

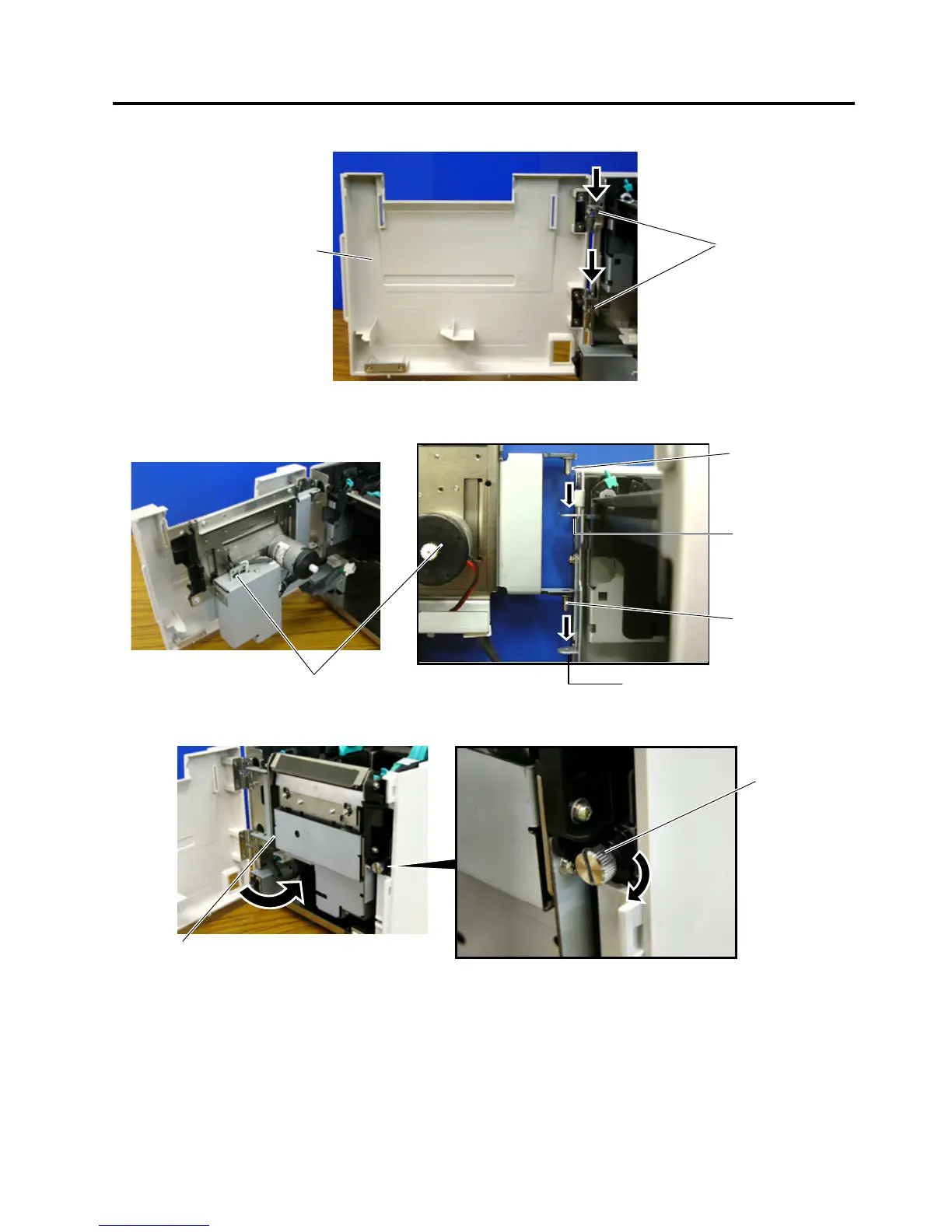

3. Mount the Cutter Module Cover by inserting the hinge pins into the hinges.
4. Fit the Cutter Unit to the front of the printer by inserting the Hinge Pins into the Hinge Pin Holes.
5. Close the Cutter Unit and secure it to the printer with the Set Screw.
Cutter Module Cove
r
Hinge
Cutter Unit
Hinge Pin
Hinge Pin
Hinge Pin Hole
Hinge Pin Hole
Cutter Unit
Set Screw
