Toshiba B-SA4T Series User Manual

INSTALLATION PROCEDURE FOR OPTIONAL EQUIPMENT EO15-33001A
1. Cutter Module
1- 6

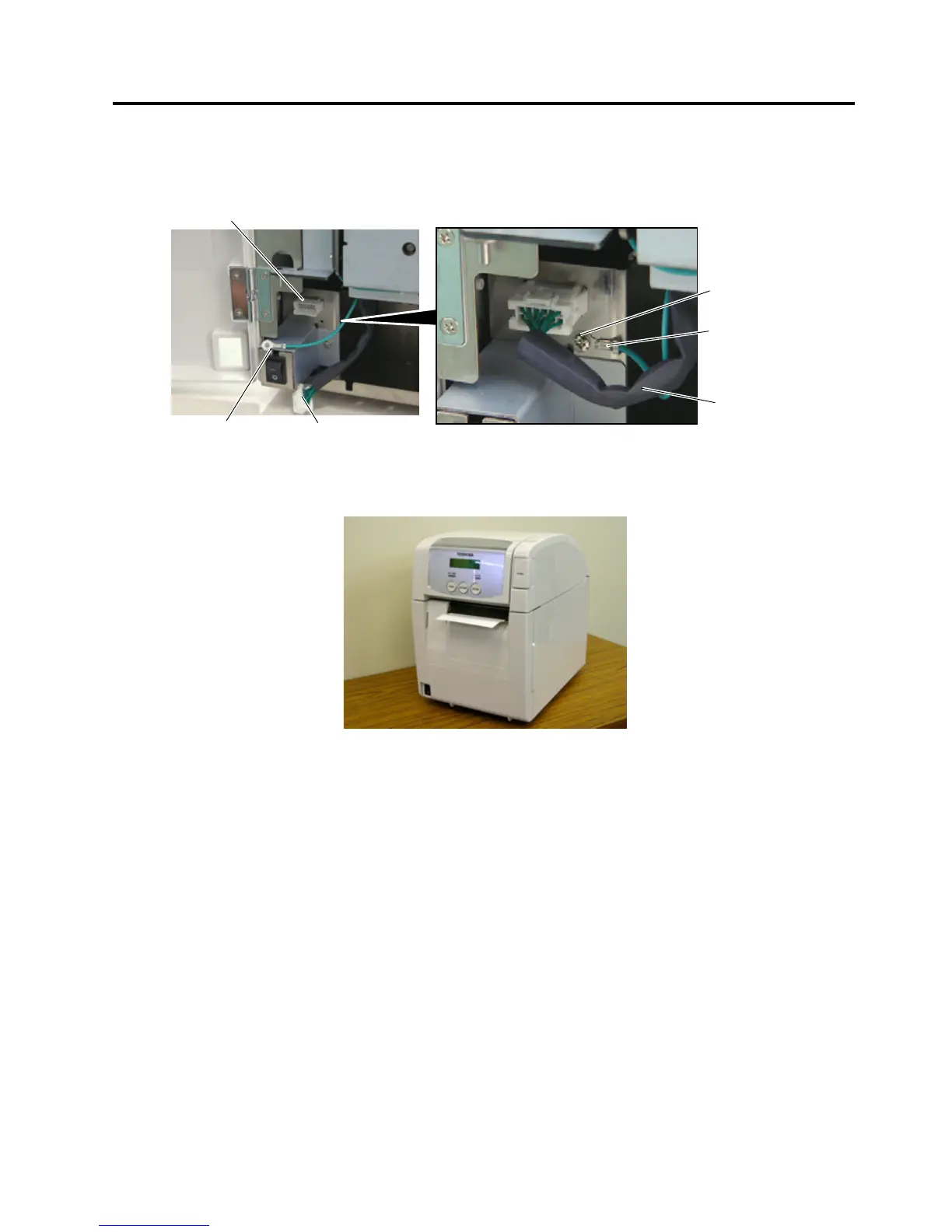

6. Secure the ground wire of the cutter unit to the printer with the B-3x6 screw removed in Step 1, as shown
in the picture.
7. Connect the cutter harness to the connector at the front of the printer.
8. Close the Cutter Module Cover. After that, perform an operation check for a proper cut issue.
• Media loading procedure------------- Owner’s Manual, Section 2.3
• Operation check------------------------ Owner’s Manual, Section 2.9
• System mode setting------------------ System Mode Manual
• Cleaning --------------------------------- Owner’s Manual, Section 4.1.3
Cutter Harness
Ground Wire
B-3x6 Screw
Ground Wire
Cutter Harness
Connecto
r

Toshiba B-SA4T Series Specifications

General

Print Technology	Thermal Transfer / Direct Thermal
Print Speed	Up to 152.4 mm/sec (6 ips)
Max Print Width	104 mm (4.09")
Resolution	300 dpi
Connectivity	USB 2.0
Optional Interfaces	Wireless LAN
Barcodes	UPC/EAN/JAN, Code 39, Code 93, Code 128, EAN 128, NW7, Industrial 2 of 5, Postnet, RM4SCC, KIX-Code
2D Codes	Data Matrix, PDF417, QR Code, Maxi Code, Micro PDF417, Aztec Code
Media Thickness	0.06 – 0.19 mm
Media Roll Diameter	Max. 127 mm
Ribbon Length	Up to 300 m
Weight	15 kg
