INSTALLATION PROCEDURE FOR OPTIONAL EQUIPMENT EO15-33001A
(Revision Date: Jan. 19, 2006)
3. Wireless LAN Module: B-SA704-WLAN-QM
3- 1
3. Wireless LAN Module: B-SA704-WLAN-QM
The pictures used in this section are those of the B-SA4TM, and the installation procedures are common
with the B-SA4TP unless otherwise noted.

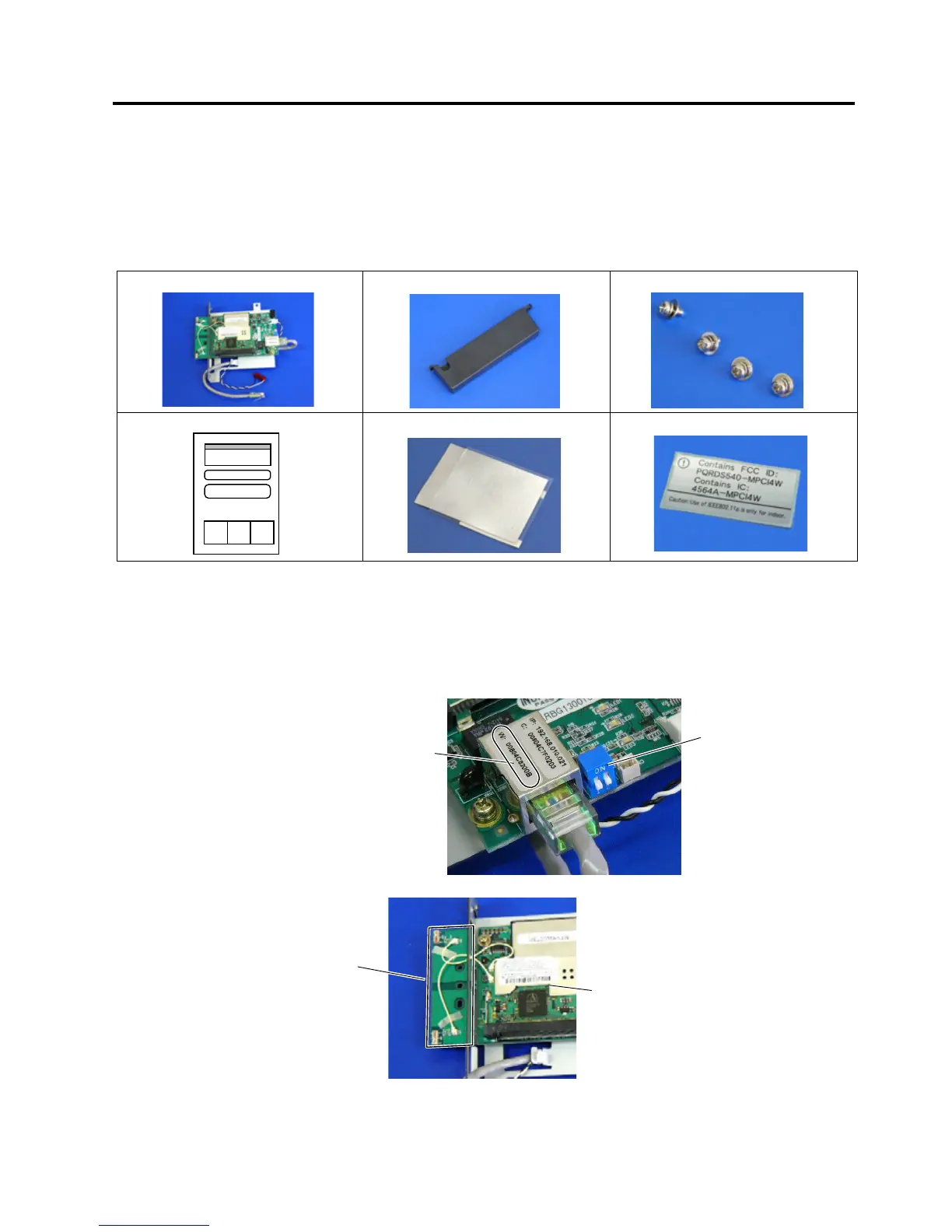

• Packing List
The following parts are supplied with the kit. Make sure you have all items shown below.
Wireless LAN Board (1 pc.)
Antenna Cover (1 pc.)
SMW-3x6 Screw (4 pcs.)
Installation Manual (1 copy)
Shield Sheet (1.pc)
FCC/IC Sticker (1 pc.)
NOTES:
1. DO NOT CHANGE the DIP Switch settings on the Wireless LAN Board. Doing so may cause a malfunction.
2. MAC address of the Wireless LAN module will be necessary when setting the MAC address filtering function
of an access point. As it is printed on the top of the wired LAN connector on the Wireless LAN Board, write
down it on Installation Manual before mounting the covers so that an end user can know the MAC address.
3. Be careful not to hit or damage the antenna when installing this kit. A damaged antenna may affect the
performance.
4. The shield sheet is used only when this option is installed in the B-SA4TP model.
DIP Switch
MAC Address
12-digit code printed on the right
side of “W” is MAC address.
Wireless LAN Board
Antenna
To Next Page
