INSTALLATION PROCEDURE FOR OPTIONAL EQUIPMENT EO15-33001A
(Revision Date: Jan. 19, 2006)
2. Strip Module
2- 1
2. Strip Module
NOTE: Make sure that the firmware version is V1.1 or greater. Firmware V1.0 does not support the strip module.
2.1 B-SA904-H-QM-R
B-SA904-H-QM-R is an optional strip module for the B-SA4TM Series (Metal cover).

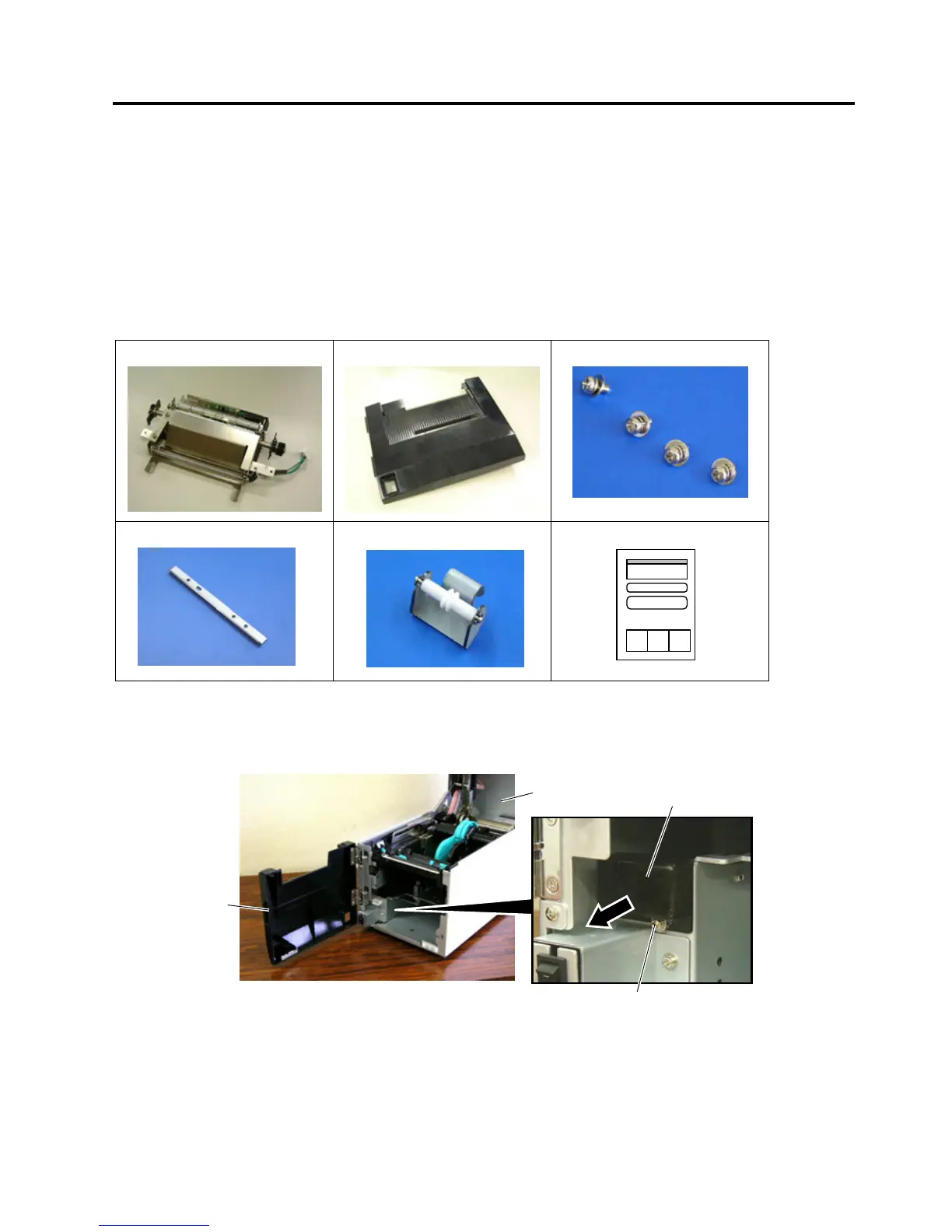

• Packing List
The following parts are supplied with the kit. Make sure you have all items shown below.
Strip Unit (1 pc.)
Strip Module Cover (1 pc.)
SMW-3x6 Screw (4 pc.)
Cutter (1 pc.)
Guide Roller (1 pc.)
Installation Manual (1 copy)
NOTE: When issuing labels in batch mode even though the strip module is fitted, please use the provided cutter
to tear off the issued labels. Do not attach the cutter when labels are stripped one by one.
• Installation Procedure
1. Open the Top Cover and the Front Cover. Remove the B-3x6 screw to detach the Connector Cover.
Front Cove
