INSTALLATION PROCEDURE FOR OPTIONAL EQUIPMENT EO15-33001A
2. Strip Module
2- 2

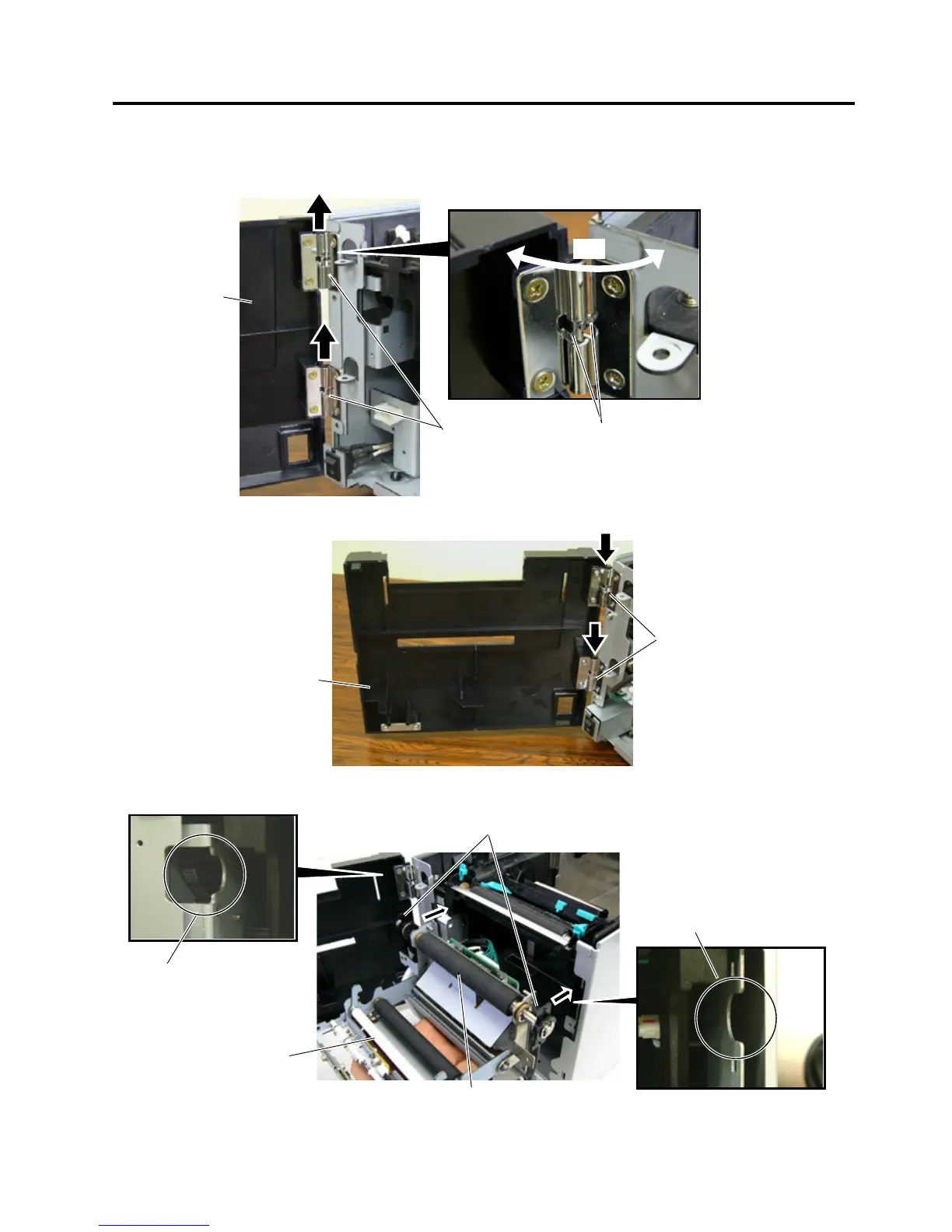

2. Open the Front Cover wider. Remove the Front Cover by lifting it to disengage the hinge pins from the
hinge. The Front Cover cannot be removed unless it is opened at an angle of over 100 degrees as the
stoppers of the hinge prevent disengagement.
3. Mount the Strip Module Cover by inserting the hinge pins into the hinges.
4. Fit the Shaft Holders of the Backing Paper Feed Roller into the cuts of the printer.
Hinge
Strip Module Cove
To Next Page
