INSTALLATION PROCEDURE FOR OPTIONAL EQUIPMENT EO15-33001A
2. Strip Module
2- 3

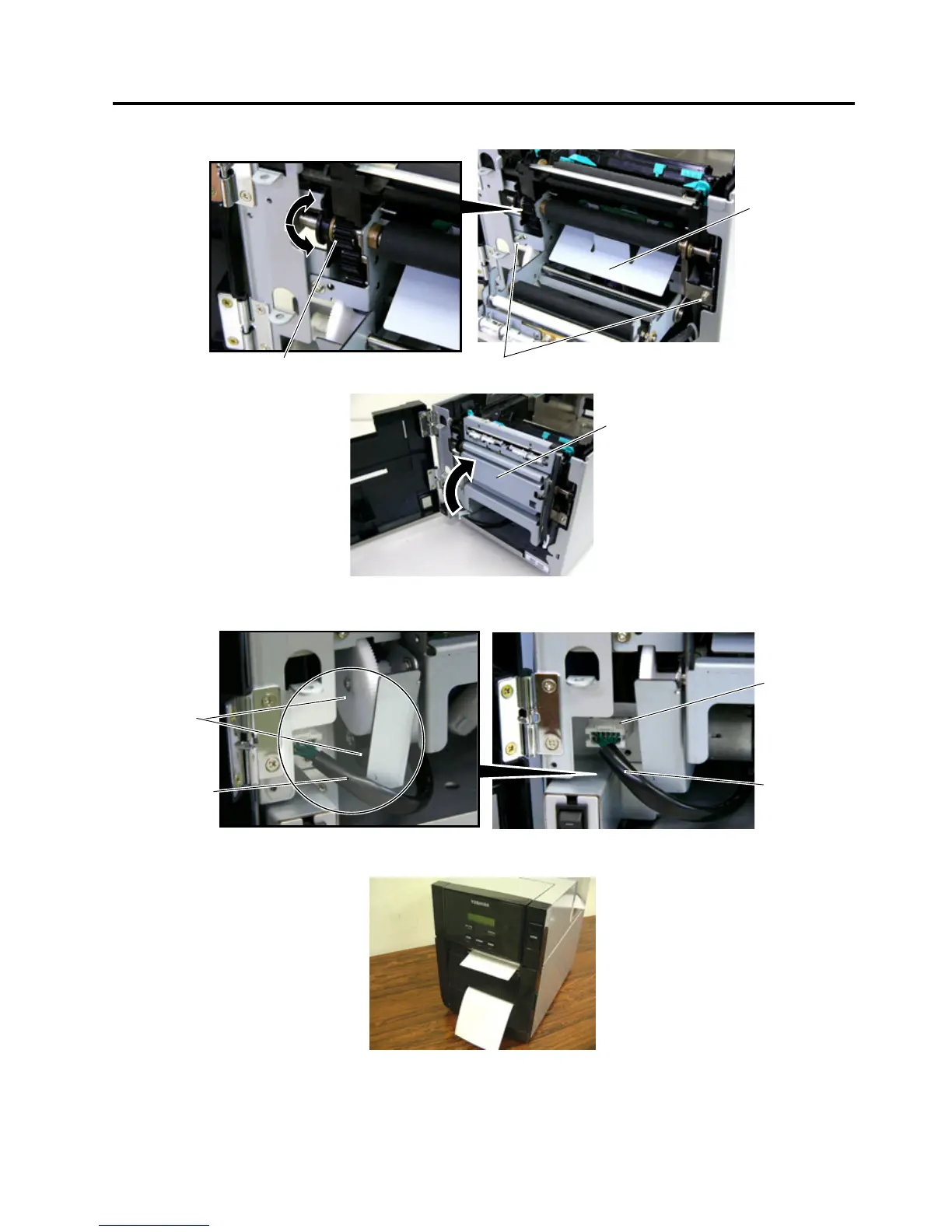

5. Secure the Strip Unit to the printer with the two screws. Make sure that the Feed Roller Gear rotates
smoothly.
6. Close the Strip Unit.
7. Connect the Strip Harness to the connector at the front of the printer. At this time, carefully avoid contact
of the strip harness with the gears.
8. Close the Strip Module Cover.
Perform an operation check for a proper strip issue.
• Media loading procedure------------- Owner’s Manual, Section 2.3
• Operation check------------------------ Owner’s Manual, Section 2.9
• System mode setting------------------ System Mode Manual
• Cleaning --------------------------------- Owner’s Manual, Section 4.1.4
SMW-3x6 Screw
Feed Roller Gear
Strip Unit
Strip Unit
Connector
Strip Harness
Strip Harness
Gea
To Next Page
