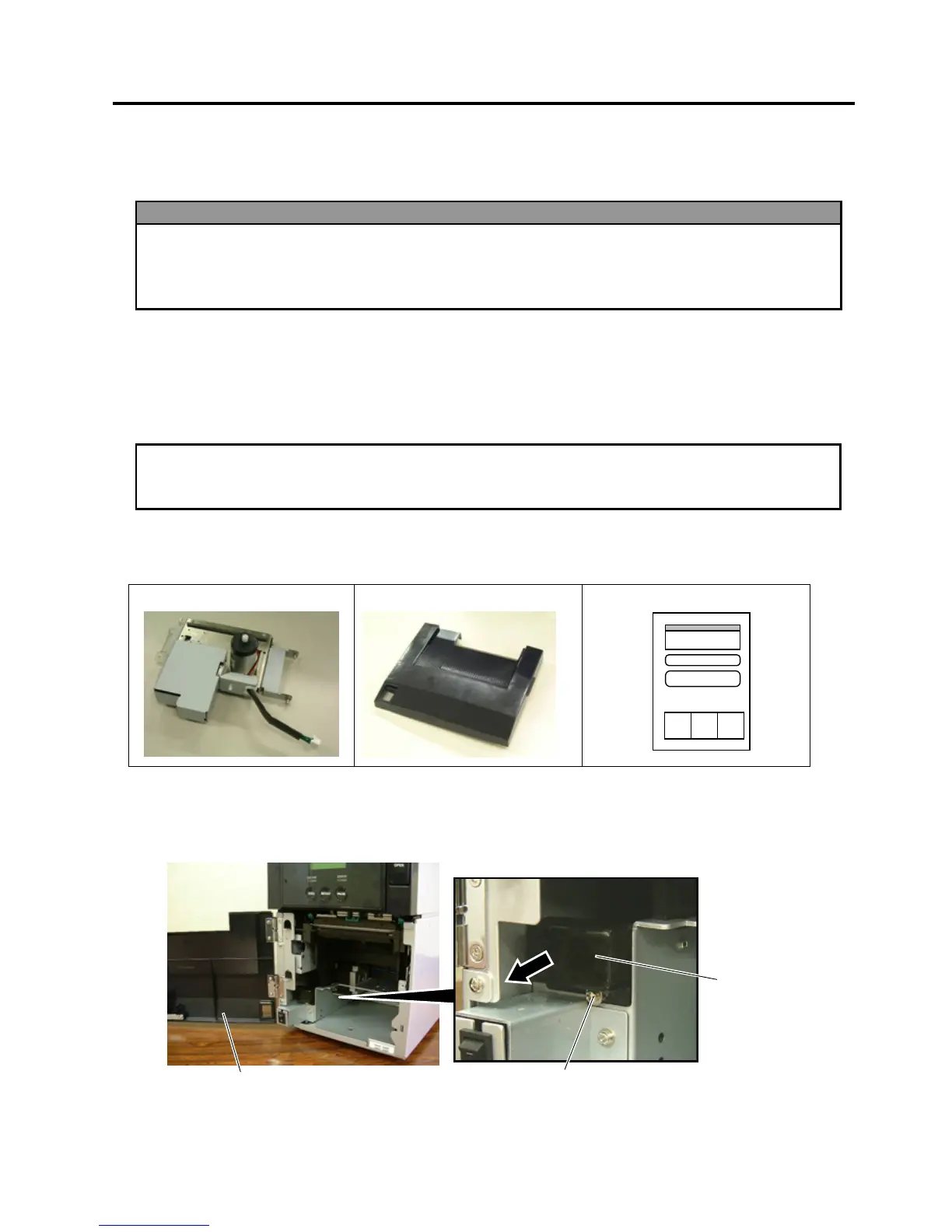

INSTALLATION PROCEDURE FOR OPTIONAL EQUIPMENT EO15-33001A
1. Cutter Module
1- 1
INSTALLATION PROCEDURE FOR OPTIONAL
EQUIPMENT
1. Cutter Module
1.1 B-SA204-QM / B-SA204-QM-R
B-SA204-QM/ B-SA204-QM-R is an optional cutter module for the B-SA4TM Series (Metal cover).
•
Packing List
The following parts are supplied with the kit. Make sure you have all items shown below.
Cutter Unit (1 pc.)
Cutter Module Cover (1 pc.)
Installation Manual (1 copy)
• Installation Procedure
1. Open the Front Cover, and remove the B-3x6 screw to detach the Connector Cover.
WARNING!
1. Turn the printer power off and disconnect the power cord before installing an optional
equipment.
2. Be careful not to pinch your fingers or hands with the covers.
3. Be careful not to injure your fingers when installing the cutter module.
CAUTION
!
Do not connect/disconnect the cutter harness to/from the printer within one minute from a power off
to
p
rotect the internal electrical circuit of the
p
rinter.
Front Cove
r
Connector Cover
B-3x6 Screw
