INSTALLATION PROCEDURE FOR OPTIONAL EQUIPMENT EO15-33001A
1. Cutter Module
1- 2

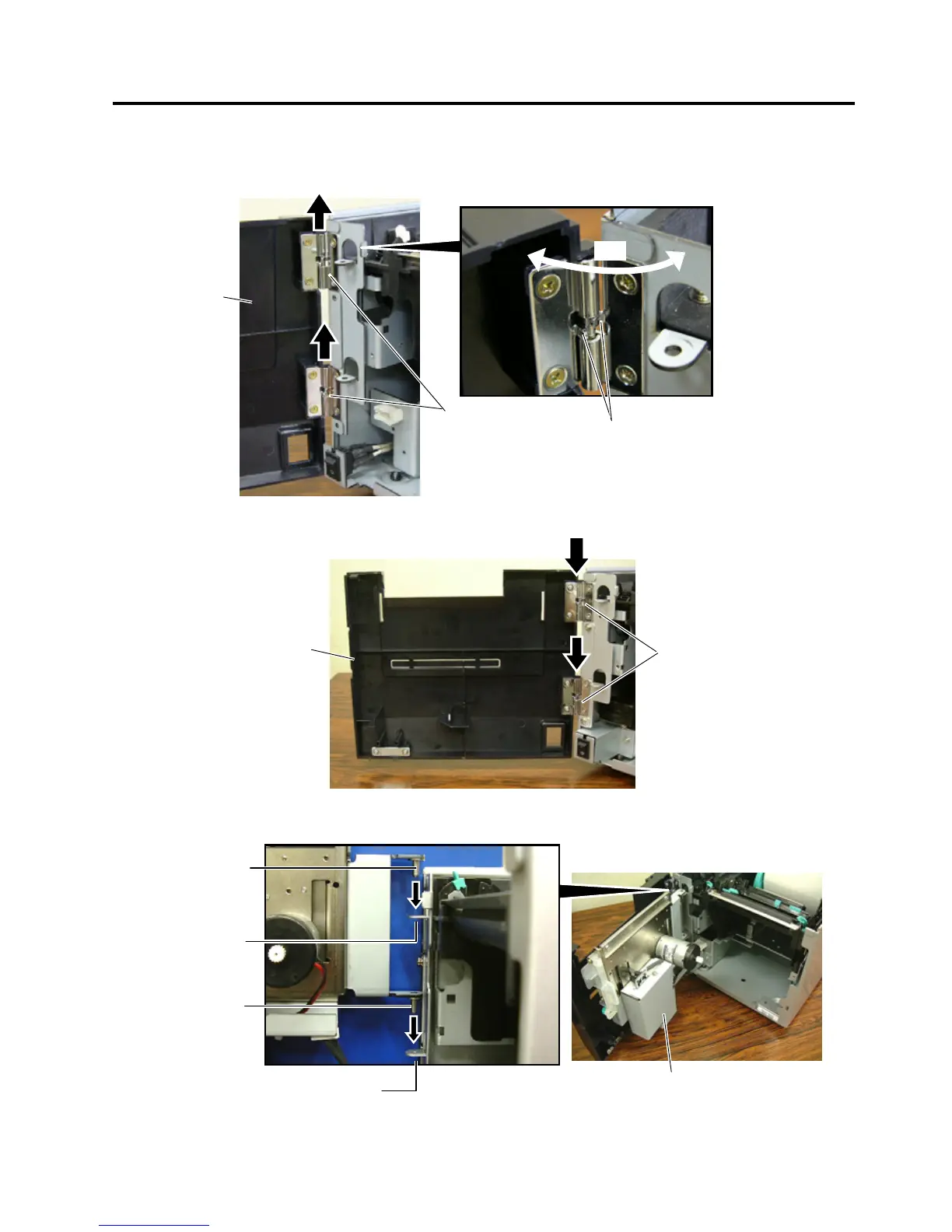

2. Open the Front Cover wider. Remove the Front Cover by lifting it to disengage the hinge pins from the
hinge. The Front Cover cannot be removed unless it is opened at an angle of over 100 degrees as the
stoppers of the hinge prevent disengagement.
3. Mount the Cutter Module Cover by inserting the hinge pins into the hinges.
4. Fit the Cutter Unit to the front of the printer by inserting the Hinge Pins into the Hinge Pin Holes.
Cutter Module Cove
