INSTALLATION PROCEDURE FOR OPTIONAL EQUIPMENT EO15-33001A
4. Serial Interface Board: B-SA704-RS-QM-R
4- 1
4. Serial Interface Board: B-SA704-RS-QM-R
The pictures used in this section are those of the B-SA4TM, and the installation procedures are common
with the B-SA4TP unless otherwise noted.

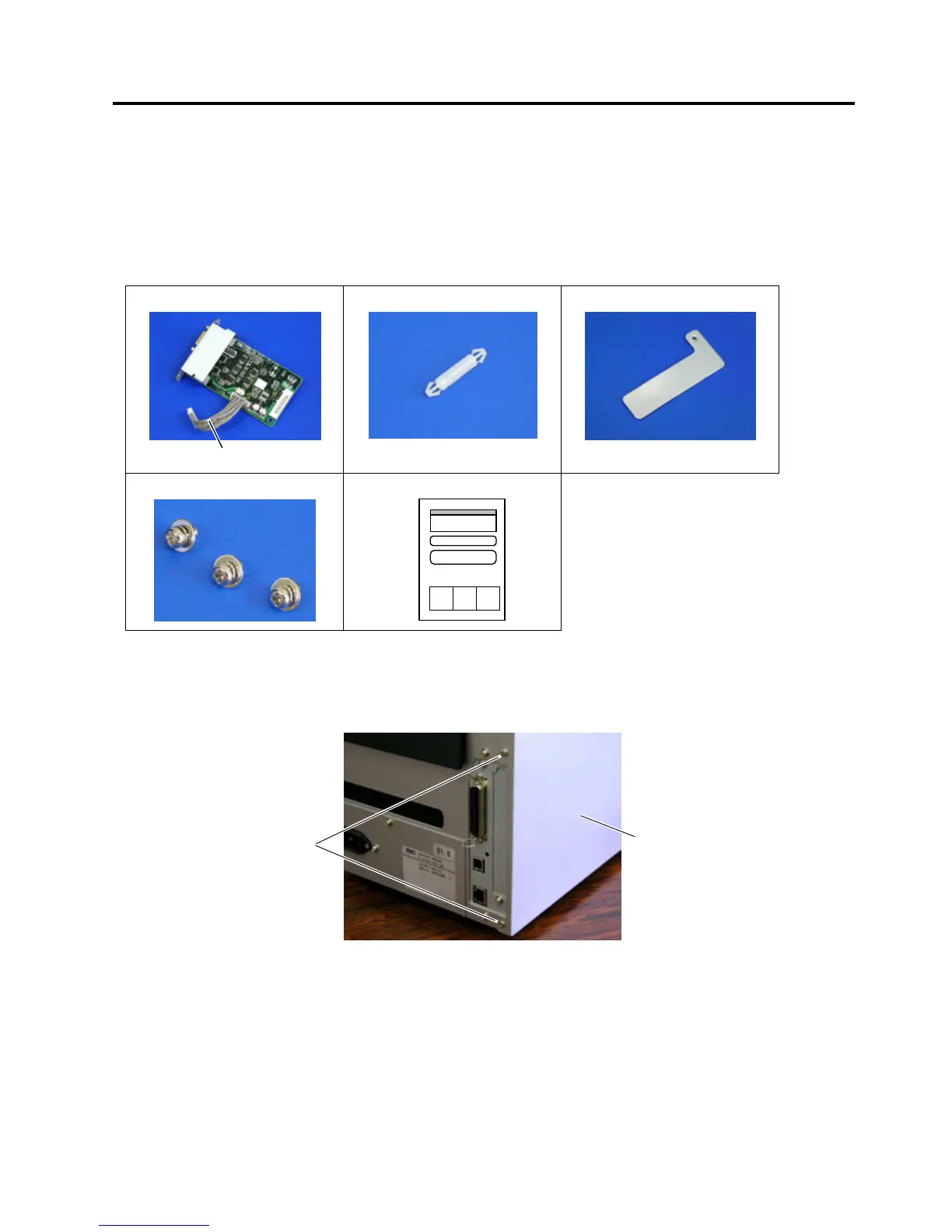

• Packing List
The following parts are supplied with the kit. Make sure you have all items shown below.
SIO PC Board (1 pc.)
Serial Interface Cable
Locking Support (1 pc.)
PCB Support Plate (1 pc.)
SMW-3x6 Screw (3 pcs.)
Installation Manual (1 copy)
NOTE: Make sure that the Serial Interface Cable is connected to CN4 on the SIO PC Board.
• Installation Procedure
1. Remove the two screws from the back of the printer.
SMW-3x6
Side Panel

Toshiba B-SA4T Specifications

General

Print Method	Thermal transfer and direct thermal
Resolution	203 dpi
Print Width	104 mm
Interfaces	Serial, Parallel, USB
Optional Interfaces	Ethernet, Wireless
Barcodes	Code 39, Code 128
2D Codes	PDF417, Data Matrix, QR Code, MaxiCode
Operating Temperature	5°C to 40°C (41°F to 104°F)
Storage Temperature	-20 - 60 °C (-4 - 140 °F)
Humidity	20% to 85% (non-condensing)
Interface	USB, Serial (RS-232), Parallel, Ethernet, Wireless
