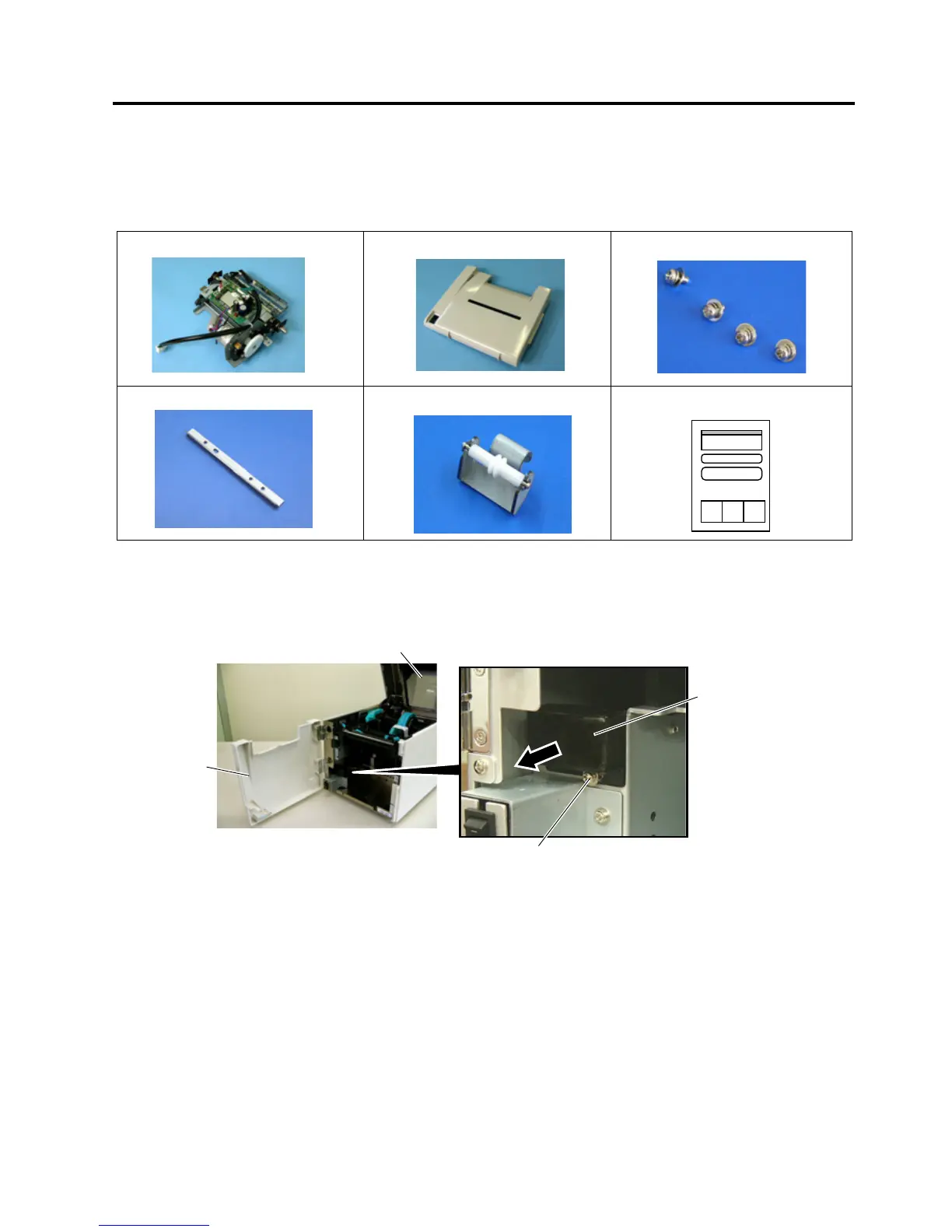

INSTALLATION PROCEDURE FOR OPTIONAL EQUIPMENT EO15-33001A
(Revision Date: Jan: 19, 2006)
2. Strip Module
2- 8
2.2 B-SA904P-H-QM-R
B-SA904P-H-QM-R is an optional strip module for the B-SA4TP Series (Plastic cover).
• Packing List
Strip Unit (1 pc.)
Strip Module Cover (1 pc.)
SMW-3x6 Screw (4 pcs.)
Cutter (1 pc.)
Guide Roller (1 pc.)
Installation Manual (1 copy)
NOTE: When issuing labels in batch mode even though the strip module is fitted, please use the provided
cutter to tear off the issued labels. Do not attach the cutter when labels are stripped one by one.
• Installation Procedure
1. Open the Top Cover and the Front Cover. Remove the Connector Cover.
Front Cove
To Next Page
