Toshiba B-SA4T Option Installation Manual

INSTALLATION PROCEDURE FOR OPTIONAL EQUIPMENT EO15-33001A
(Revision Date: Feb. 25, 2008)
8. RFID Module: B-SA704-RFID-U2-EU-R
8- 10

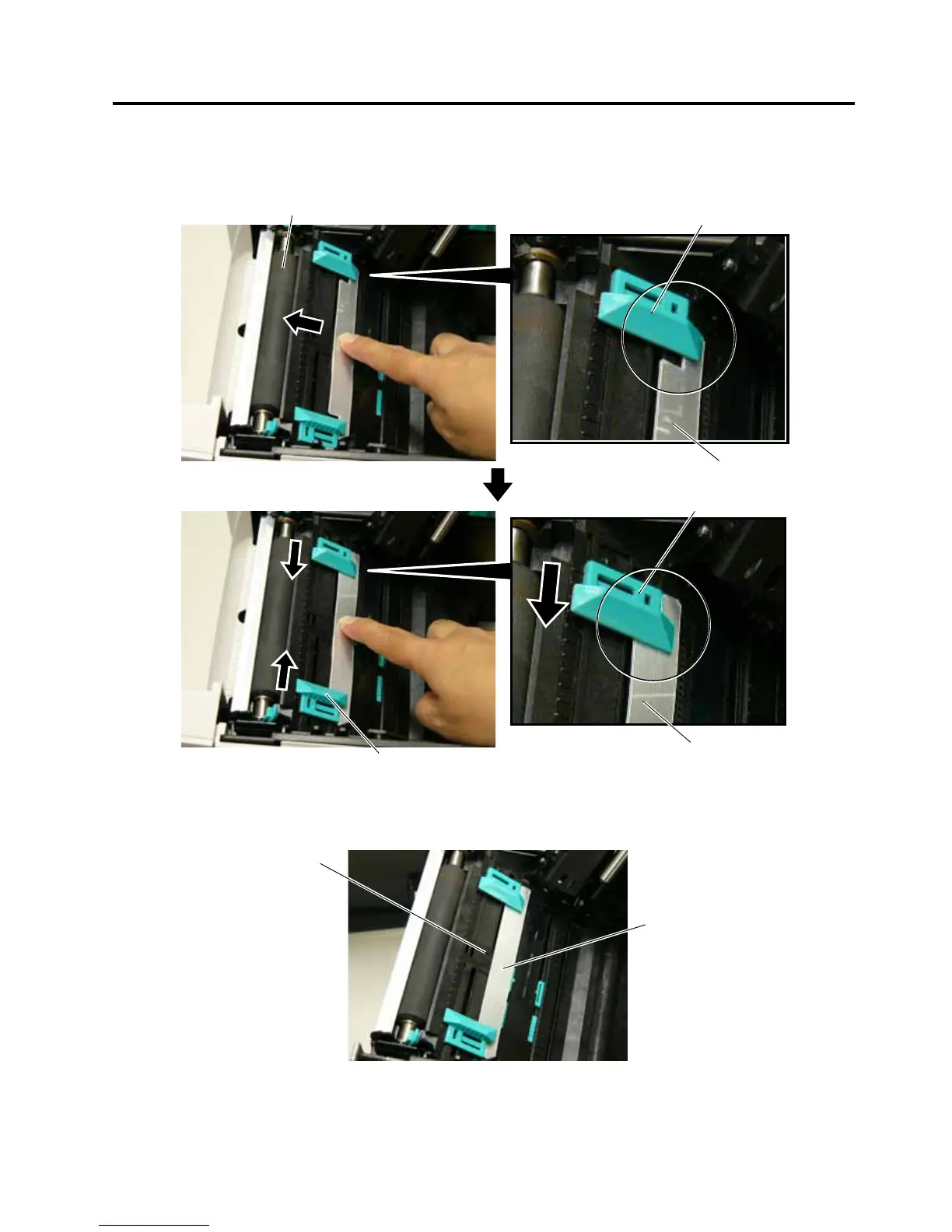

2. Insert the Shield Sheet, without the backing paper removed, under the Media Guides from behind, and
slightly slide it toward the Platen. Then, move the Media Guides to the width of the Shield Sheet
(shorter width), as the pictures show. The purpose of this is to indicate the center of the attachment
position.
3. Remove the backing paper from the Shield Sheet, and attach it to the position determined in the
previous step, as indicated in the picture below. Now, the Shield Sheet attachment is completed.
Next, refer to Section 5 and configure the RFID module settings.
Media Guide
Media Guide
Shield Sheet
Media Guide
Shield Sheet
Platen
Shield Sheet
Media Guide Block

Toshiba B-SA4T Specifications

General

Print Method	Thermal transfer and direct thermal
Resolution	203 dpi
Print Width	104 mm
Interfaces	Serial, Parallel, USB
Optional Interfaces	Ethernet, Wireless
Barcodes	Code 39, Code 128
2D Codes	PDF417, Data Matrix, QR Code, MaxiCode
Operating Temperature	5°C to 40°C (41°F to 104°F)
Storage Temperature	-20 - 60 °C (-4 - 140 °F)
Humidity	20% to 85% (non-condensing)
Interface	USB, Serial (RS-232), Parallel, Ethernet, Wireless
