Toshiba B-SA4T Option Installation Manual

INSTALLATION PROCEDURE FOR OPTIONAL EQUIPMENT EO15-33001A
(Revision Date: Feb. 25, 2008)
8. RFID Module: B-SA704-RFID-U2-EU-R
8- 12
<10>RFID
TAG NONE
Continued from the
previous page.

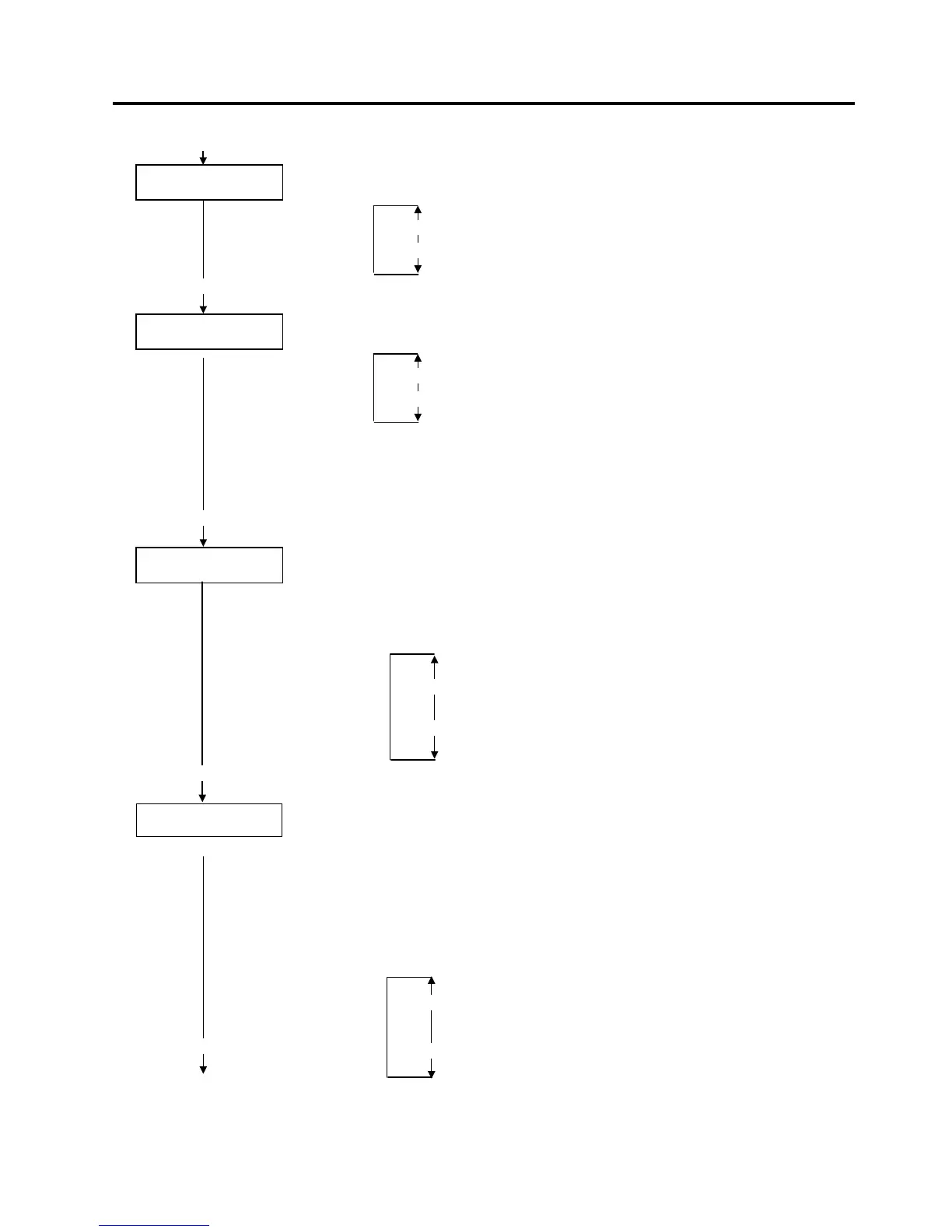

RFID tag type setting menu is displayed.
Choose “EPC C1 Gen2: 24” with the [FEED] or [RESTART] key.
[RESTART]
[FEED]
NONE: When a tag type is not selected.
EPC C1 Gen2: 24
[PAUSE]
Press the [PAUSE] key.
<10>RFID
ERR CHK OFF
RFID error tag detection menu is displayed. Choose whether to perform an error tag
detection or not with the [FEED] or [RESTART] key.
[RESTART]
[FEED]
OFF: An error tag detection is not performed. (Usually,
choose OFF.)
ON: An error tag detection is performed.
ON: A tag is read before writing data on it, and data is written on the tag only when the
header data is “A5A5”.
OFF: Though a tag is read before writing data on it, data write is always performed
whatever data has been set as the header data.
[PAUSE]
Press the [PAUSE] key.
<10>RFID
ISSUE RETRY 3
Max. number of issue retries setting menu is displayed.
Set the maximum number of retries to issue an RFID tag.
When issuing an RFID tag failed, the printer prints the error pattern, and retries to issue
the tag for up to specified number of times. If the printer does not succeed even after
having retried for the max. times, the printer stops, resulting in an error.
Choose the max. number of retries with the [FEED] or [RESTART] key.
[PAUSE]
[RESTART]
[FEED]
255
•
•
•
3 (Default)
•
•
0
Press the [PAUSE] key.
Continued to the next page.
<10>RFID
R CYCLE CNT 5
Max. number of read retries setting menu is displayed.
Set the maximum number of retries to read an RFID tag.
The printer retries to read the data in an RFID tag for up to specified number of times. I
f
the timeout period expired before the max. number retries have been done, the printe
r
stops the retries at the time.
Whenever the printer writes data onto an RFID tag, the tag is read
first. The max. number of retries set by this parameter becomes also
effective in this pre-read.
Choose the max. number of retries with the [FEED] or [RESTART] key.
[RESTART]
[FEED]
255
•
•
•
5 (Default)
•
•
0
Press the [PAUSE] key.
[PAUSE]

Toshiba B-SA4T Specifications

General

Print Method	Thermal transfer and direct thermal
Resolution	203 dpi
Print Width	104 mm
Interfaces	Serial, Parallel, USB
Optional Interfaces	Ethernet, Wireless
Barcodes	Code 39, Code 128
2D Codes	PDF417, Data Matrix, QR Code, MaxiCode
Operating Temperature	5°C to 40°C (41°F to 104°F)
Storage Temperature	-20 - 60 °C (-4 - 140 °F)
Humidity	20% to 85% (non-condensing)
Interface	USB, Serial (RS-232), Parallel, Ethernet, Wireless
