3.MAIN UNIT REPLACEMENT EO18-33017
2.3 Replacing the Stepping Motor
2- 6

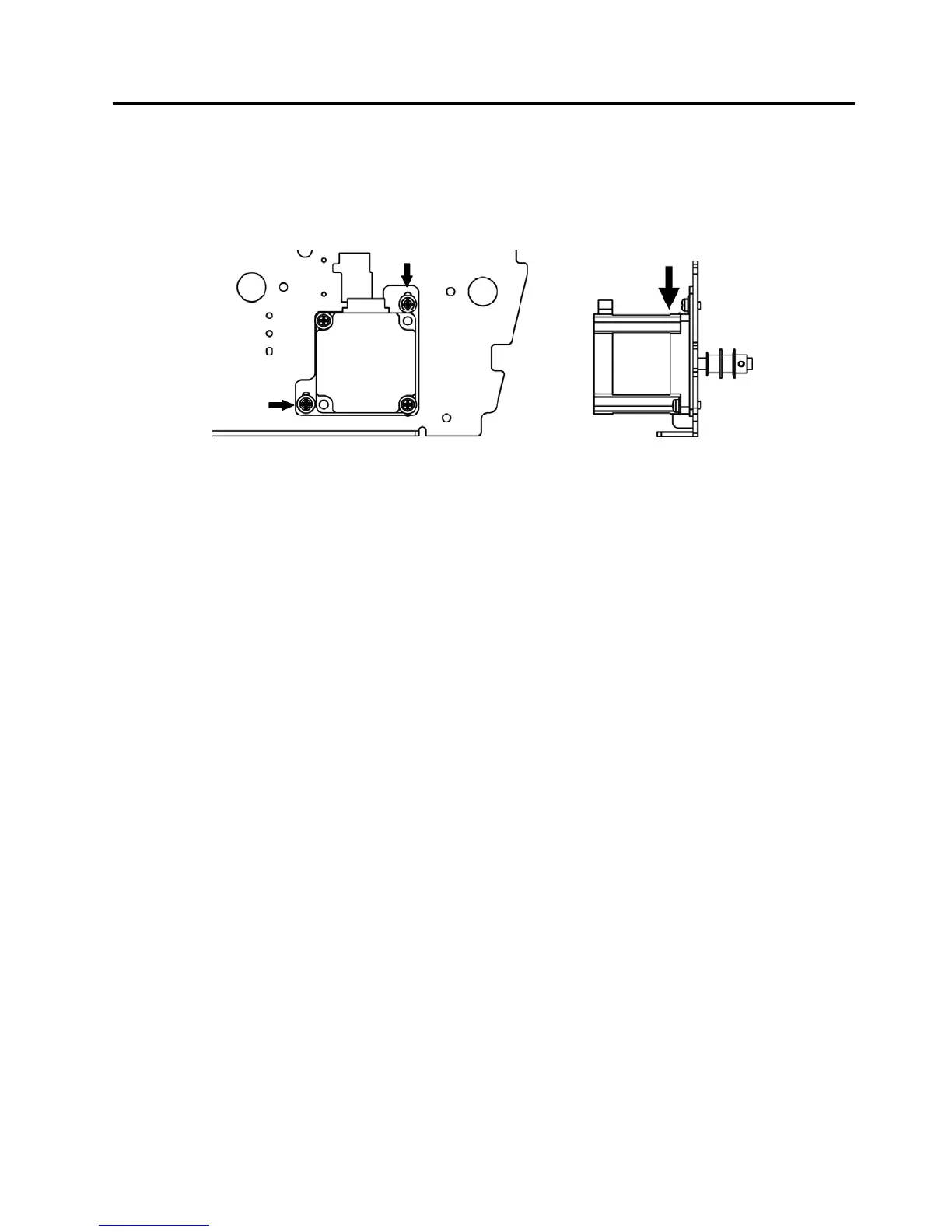

(2) Temporarily attach the Stepping Motor, by tightening the two screws, in order of A and B.
(3) Using a tension gauge, press down the Stepping Motor with 34.3N
• cm ±2.94N • cm force.
While pressing down the Stepping Motor, tighten the screws A and B, in order.
Make sure that the Platen Belt and Feed Roller Belt have no slack, are engaged, and evenly tense.
5. Reassemble in the reverse order of removal.
First, tighten
Screw A.
Secondly, tighten
Screw B.
34.3N • cm ±2.94N • cm force
