3.MAIN UNIT REPLACEMENT EO18-33017
2.8 Replacing the Roller Belt and Feed Roller
2-12

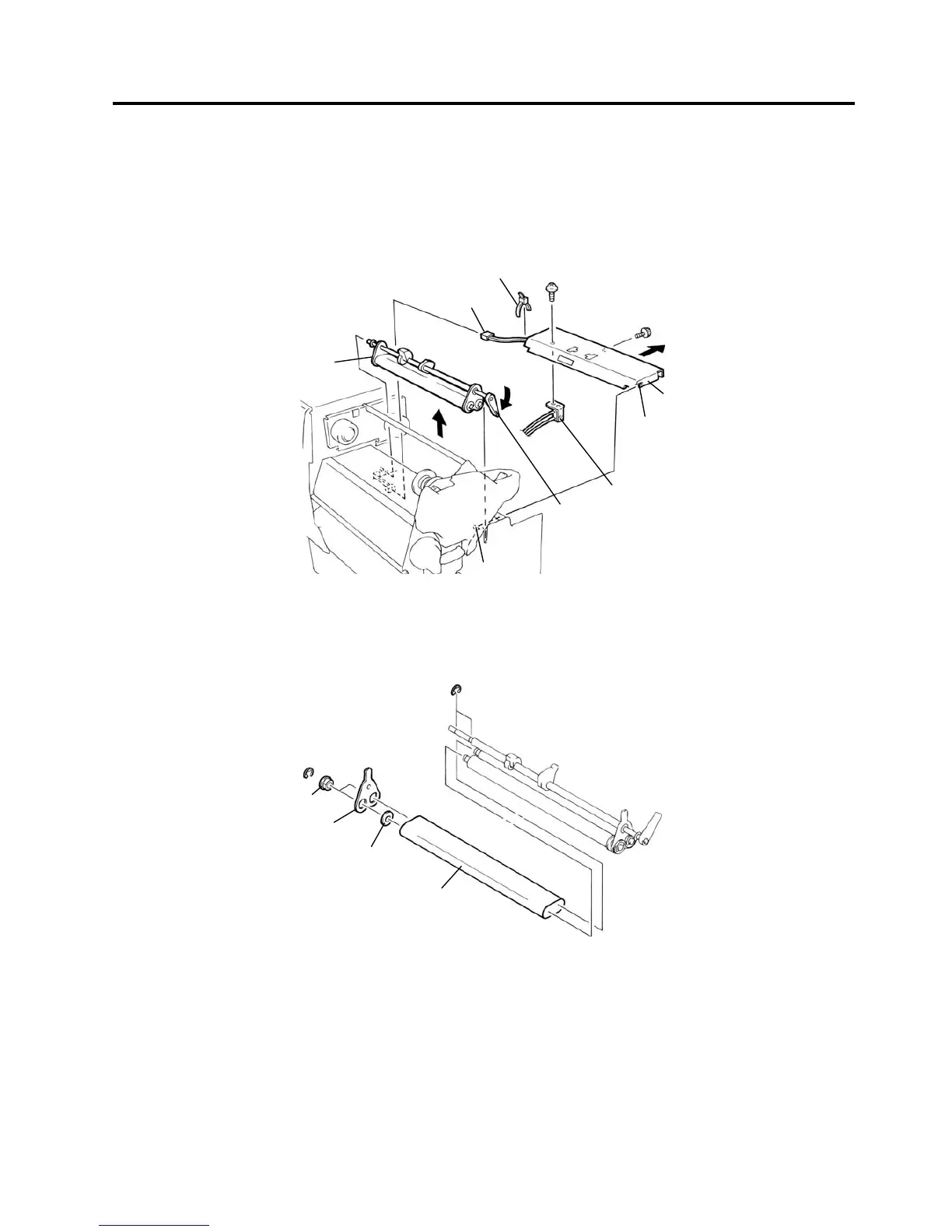

2.8 Replacing the Roller Belt and Feed Roller
1. Lower the Pinch Roller Lever.
2. Remove the Plastic Head Screw to detach the Ribbon End Sensor Plate.
3. Remove the FL-3x5 screw, cut the Cable Band, and remove the Head-up Switch.
4. Detach the connector of the Ribbon End Sensor.
5. Remove the Pinch Roller Block.
NOTE: Fit both sides of the studs into the notches when installing the Ribbon End Sensor Plate.
6. Remove the four E-5 retaining rings, Pinch Roller Holder, Bush, Pinch Roller Washer, and then Roller
Belt.
FL-3x5 Screw
Ribbon End Sensor Plate
Head Up Switch
Plastic Head Screw
Notch
Pinch Roller Lever
Pinch Roller Block
Cable Band
Roller Belt
Pinch Roller Washer
E-5
Bush
Pinch Roller Holde
r
Connector
E-5
Stud
