Toshiba B-SX6T Series Maintenance Manual

2. MAIN UNIT REPLACEMENT EO18-33017
2.1 Replacing the MAIN PC Board
2- 2

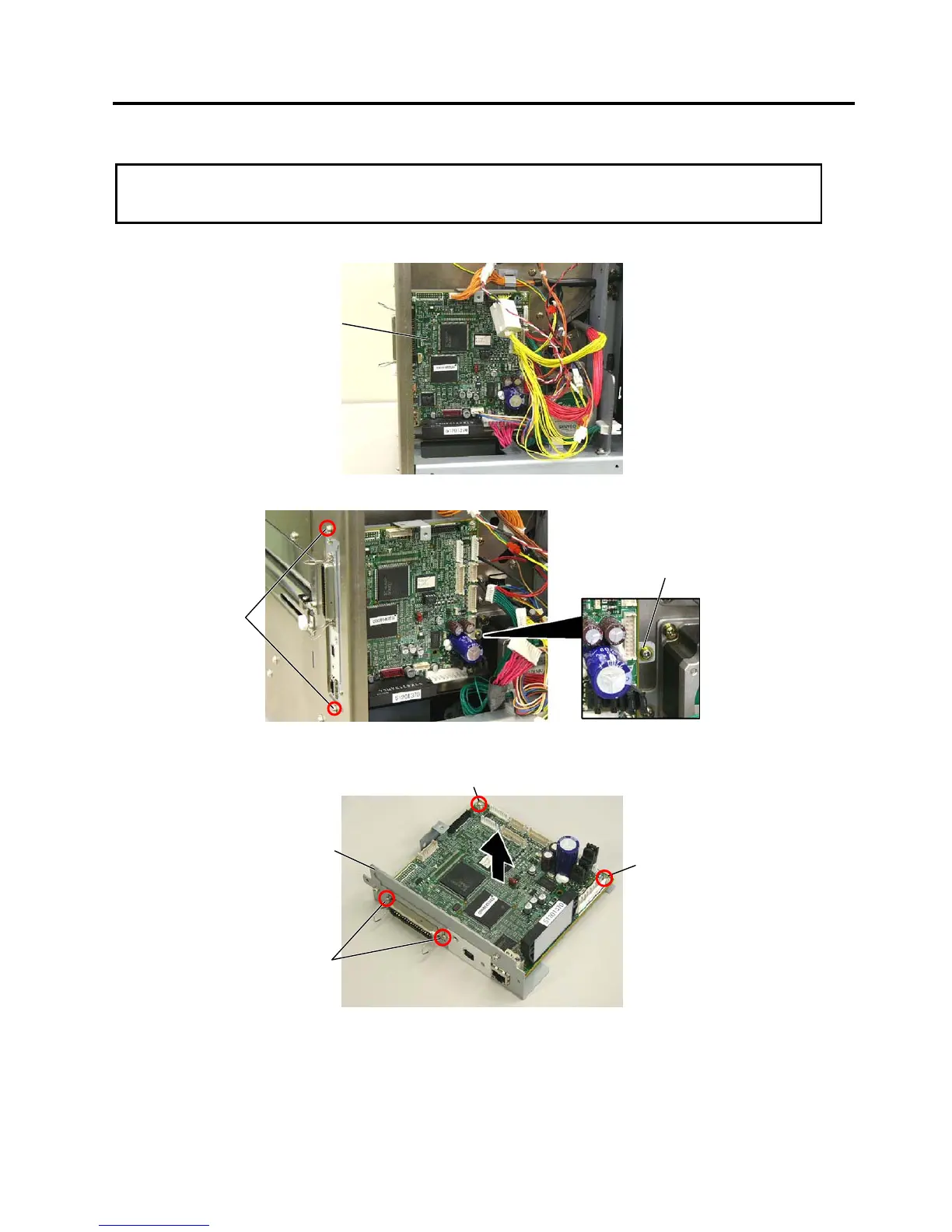

2.1 Replacing the MAIN PC Board
1. Disconnect the all connectors from the MAIN PC Board.
2. Remove the three screws (FL-3x5 and SM-3x6) from the MAIN PC Board.
3. Remove the four screws (SMW-3x6 and SMW-3x6*) to separate the MAIN PC Board from the
Attachment Plate.
4. Replace the MAIN PC Board with a new one, and reassemble in the reverse order of removal.
CAUTION!
Replace only with the same type and rated fuse for continued protection against risk of fire.
SM-3x6 Screw
FL-3x5 Screw
SMW-3x6 Screw
A
ttachment Plate
MAIN PC Board
B-3x6* Screw
SMW-3x6 Screw
