3.MAIN UNIT REPLACEMENT
EO18-33017

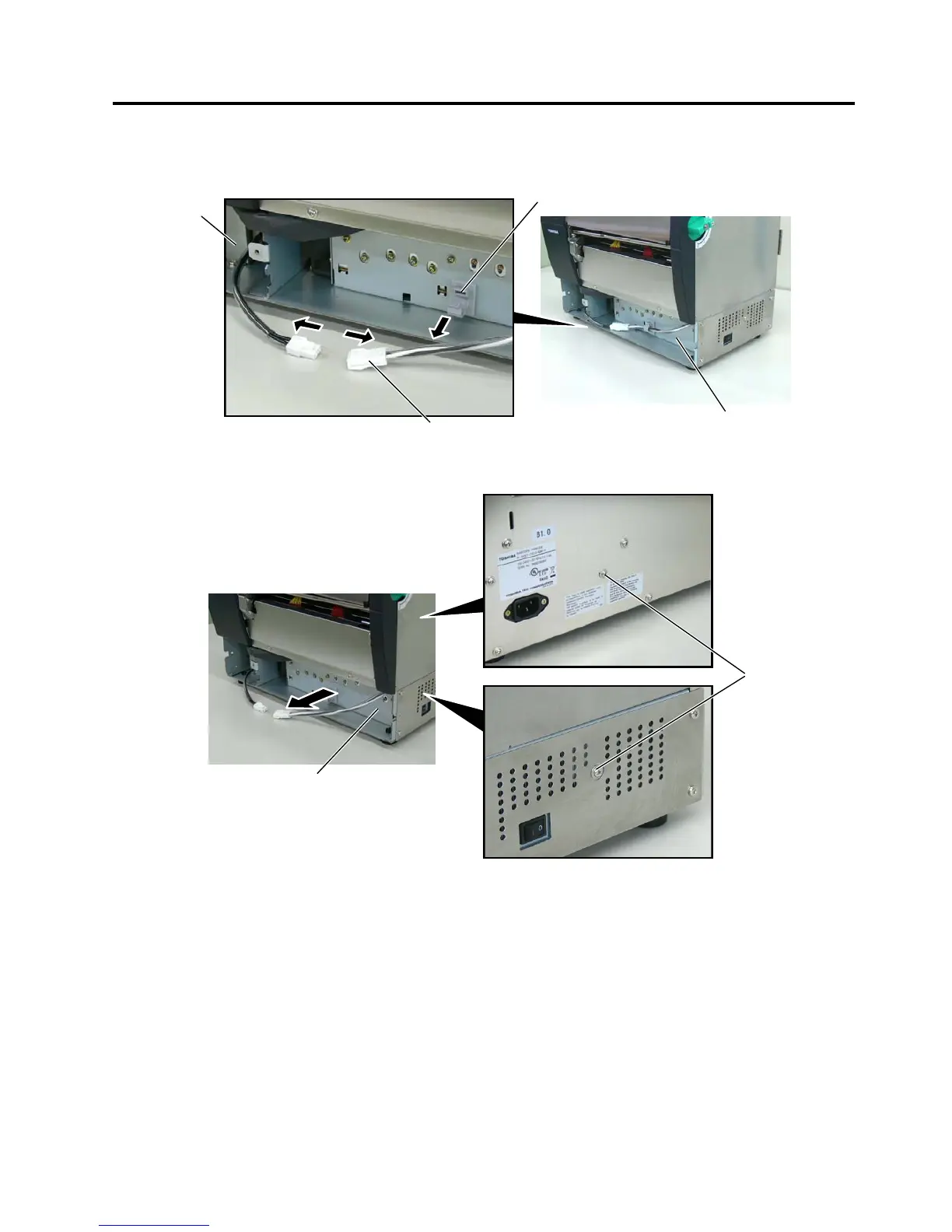

2.2 Replacing the PS Unit
2- 3
2.2 Replacing the PS Unit
1. Disconnect the reactor cable from the Reactor and remove it from the cable clamp.
2. Remove the two FL-4x6 screws to detach the PS Unit. Pushing the AC power inlet from behind will ease
the removal of the PS Unit.
Reacto
r
Reactor Cable
PS Unit
Cable Clamp
FL-4x6 screw
PS Unit
