Toshiba BMS-CT2560U-E Installation Manual

EN
5
-EN
Central Control Device (Touch Screen Controller) Installation Manual
2 Specifications
* Power cord for 220-240 V power adapter is to be arranged on site.

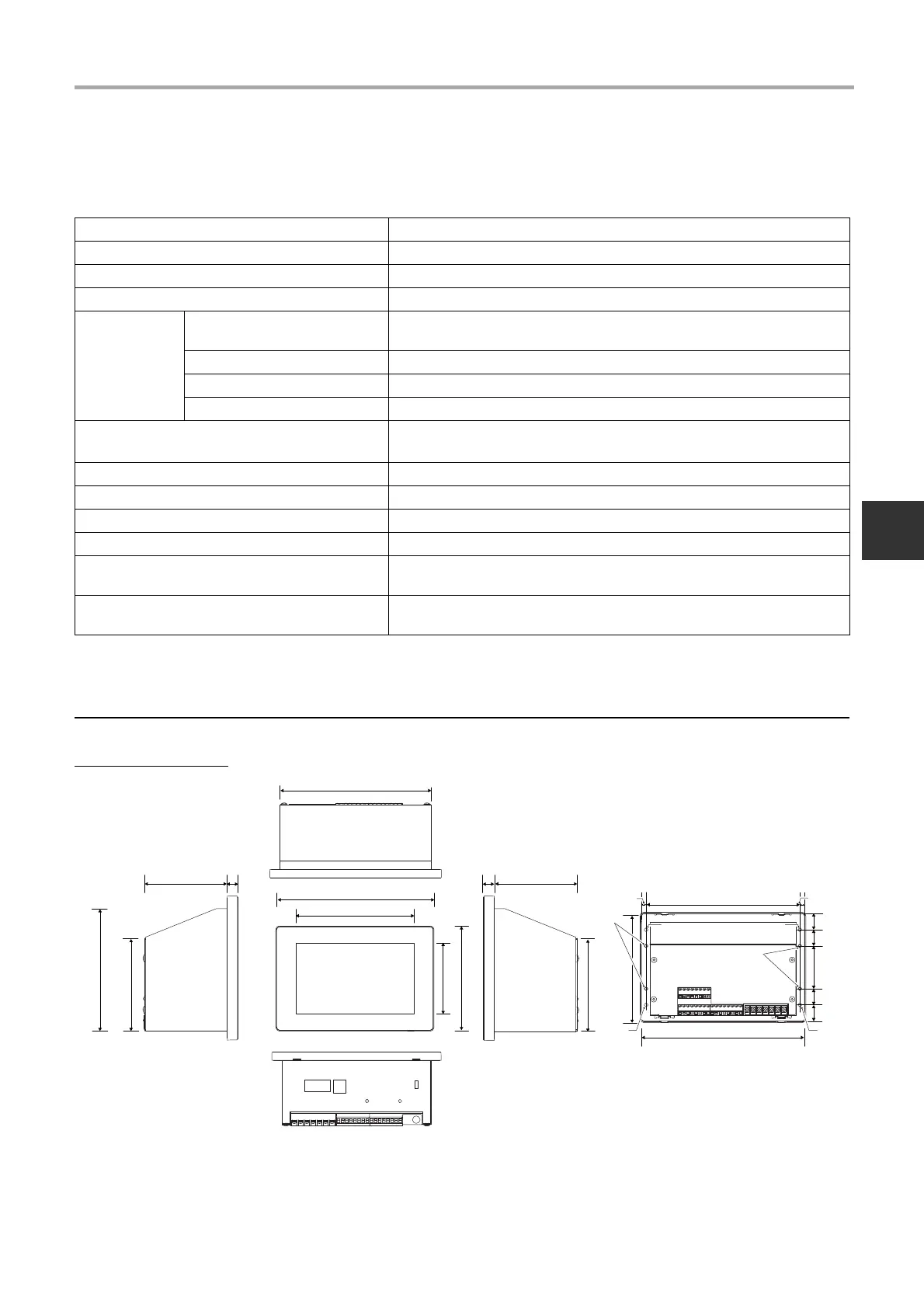

 Outline drawing (Unit: mm)
System Controller
Product name Touch Screen Controller
Model Name BMS-CT2560U-E, BMS-CT2560U-TR
Power supply 220-240 V AC* 50/60 Hz
Consumed current 1.17 A
Number of
connected units
Indoor unit
Up to 256 units
(LINK1 terminal: maximum 128 units, LINK2 terminal: maximum 128 units)
ON/OFF unit Maximum 60 units
Power meter interface Up to 4 units
Digital I/O interface Up to 4 units
Communication ports
• RS-485 port ×1
• LAN port ×1
USB port USB memory stick connection port ×2
External contact input 8 inputs
External contact output 4 outputs
Operating temperature/humidity range 0°C to 40°C, 10% to 90% RH (no condensation)
Dimensions
H136 mm × W205 mm × D10 (+80) mm
(Embedded dimensions shown in parenthesis)
Mass
1.34 kg (System Controller)
0.45 kg (power adapter)
80 10 80
205
152
181
202
20
20
20
20
53
10
5.8 5.8
ø 4.5
ø 4.5
ø 4.5
ø 4.5
90
133
91
136
190.4
90
115
M3 nut
M3 nut
