Introduction
5.375 x 8.375 ver 2.3

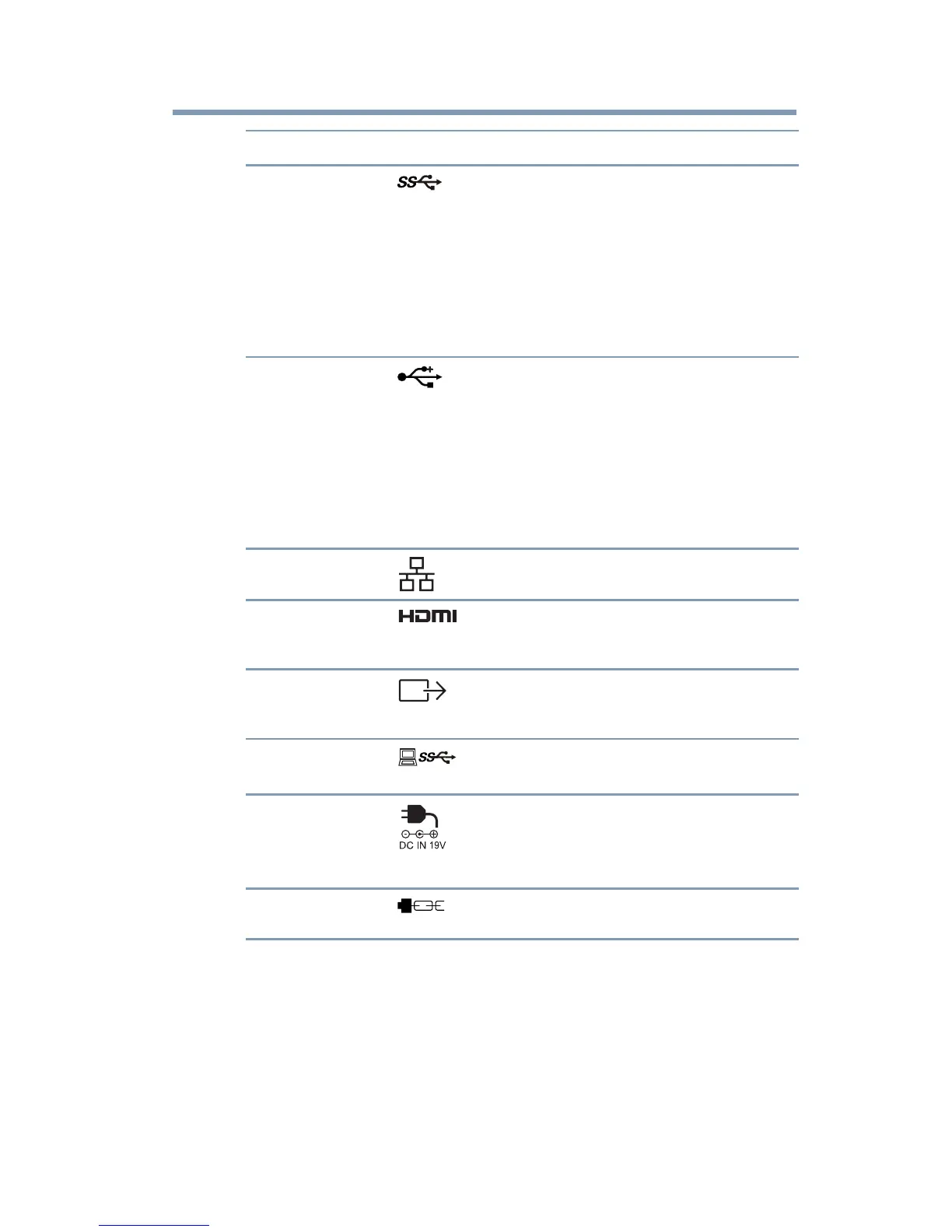

USB 3.0 ports Connection points for USB 3.0, and 2.0, devices.
Note 1: Certain USB devices, such as optical disk
drives and hard disk drives, have high power
requirements. Due to the power output limitations of
the USB ports, you may not be able to operate more
than one such device at a time.
Note 2: If your USB device came with an AC adaptor,
be sure to connect the device to a power outlet with
the AC adaptor.
USB 2.0 ports Connection points for USB 2.0 and 1.1 devices.
Note 1: Certain USB devices, such as optical disk
drives and hard disk drives, have high power
requirements. Due to the power output limitations of
the USB ports, you may not be able to operate more
than one such device at a time.
Note 2: If your USB device came with an AC adaptor,
be sure to connect the device to a power outlet with
the AC adaptor.
Network port Ethernet cable (not provided) connection point.
HDMI
®
out port Connection point for the HDMI
®
out port with a
Type A connector HDMI
®
cable (supports video and
up to 5.1 surround sound).
DVI-I video out port Connection point for a DVI display, or a VGA
display with use of the included DVI-I to VGA
adaptor.
USB 3.0 Type B
connector
Connects the dynadock™ to the computer (type B to
type A cable provided).
DC-IN Socket for AC adaptor (provided).
Note: The dynadock™ requires an external power
supply, as it does not draw power from the
computer’s USB bus.
Security lock slot Secures the dynadock™ to a heavy object
such as your desk.
