Clearing a Paper Misfeed
Locating a paper misfeed
The equipment stops copying when the original or copy paper is misfed. Paper misfeeds are notified on the
touch panel as follows:
The paper misfeed symbol helps you locate the paper misfeed.
1. Reversing Automatic Document Feeder (lower) ( P.17)
2. Reversing Automatic Document Feeder (upper) ( P.18)
3. Fuser unit ( P.25)
4. Automatic duplexing unit ( P.23)
5. Bypass tray ( P.23)
6. Drawer feeding portion ( P.19)
7. Large Capacity Feeder ( P.20) or Paper Feed Pedestal ( P.20)
8. Paper transport path ( P.24)
9. Drawers ( P.21, P.21) or drawer of the Large Capacity Feeder ( P.22)
10.Job Separator, Offset Tray or Bridge Kit ( P.27, P.28)
11.Hole Punch Unit ( P.28, P.31)
12.Saddle stitch unit ( P.33)
13.Finisher ( P.28, P.31)

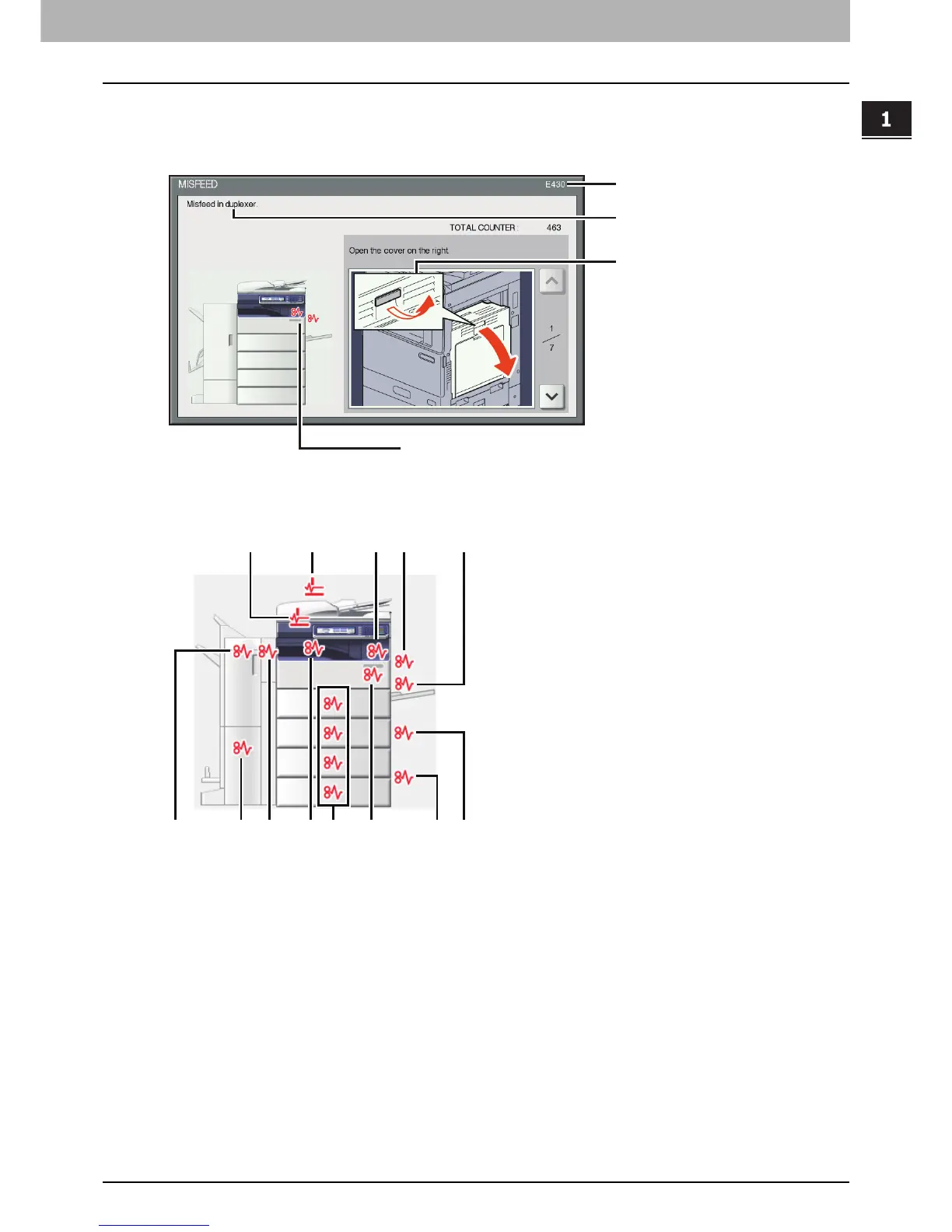

The picture of the hardware device shown on the touch panel differs depending on the finisher options
installed.
Error code
Error message
Paper misfeed symbols
Guidance for
clearing paper misfeeds
1213
1
810 67
2 3 45
9
11
