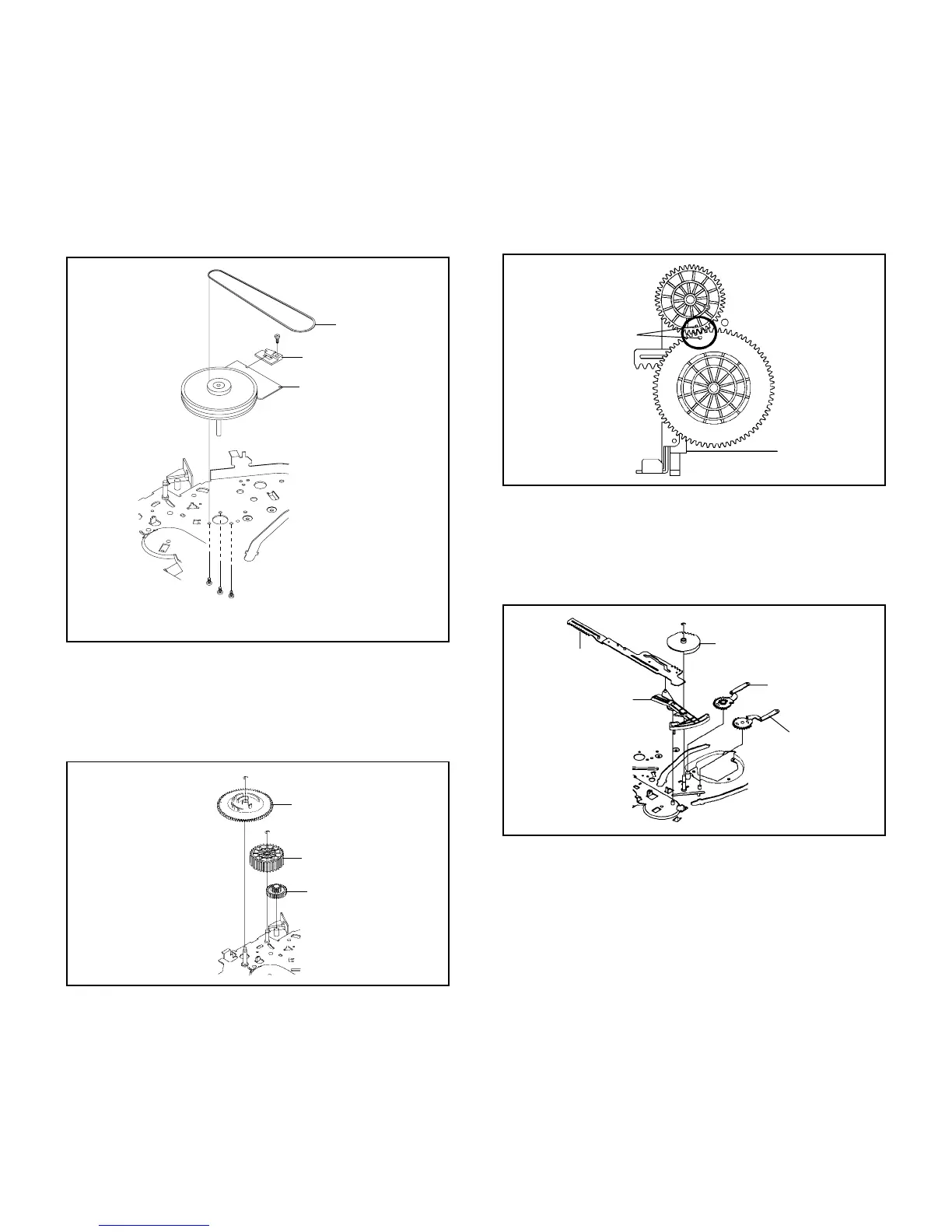

DISASSEMBLY INSTRUCTIONS
B2-5
2-14: MAIN CAM/PINCH ROLLER CAM/JOINT GEAR
(Refer to Fig. 2-14-A)
1.
2.
Remove the E-Ring 1, then remove the Main Cam.
Remove the E-Ring 2, then remove the Pinch Roller
Cam and Joint Gear.
Fig. 2-14-A
1
Main Cam
Pinch Roller Cam
Joint Gear
2
NOTE
1. In case of the Pinch Roller Cam and Main Cam installa-
tion, install them as the circled section of Fig. 2-14-B so
that the each markers are met. (Refer to Fig. 2-14-B)
And also can be seen the Main Chassis hole through the
Main Cam maker hole.
Fig. 2-14-B
Pinch Roller Cam
Marker
Main Cam
2-15: LOADING GEAR S/T UNIT (Refer to Fig. 2-15-A)
1.
2.
Remove the E-Ring 1 and remove the Main Loading
Gear.
Remove the Main Rod, Tension Lever, Loading Arm S
Unit and Loading Arm T Unit.
1
Main Loading Gear
Main Rod
Tension Lever
Loading Arm T Unit
Loading Arm S Unit
Fig. 2-15-A
2-13: CAPSTAN DD UNIT (Refer to Fig. 2-13)
Remove the Capstan Belt.
Remove the screw 1.
Remove the Capstan Holder.
Remove the 3 screws 2.
Remove the Capstan DD Unit.
1.
2.
3.
4.
5.
• Screw Torque: 4 ± 0.5kgf•cm
Capstan DD Unit
Capstan Belt
Fig. 2-13
1
2
Capstan Holder
2
2
