Toshiba MW24F11 Service Manual

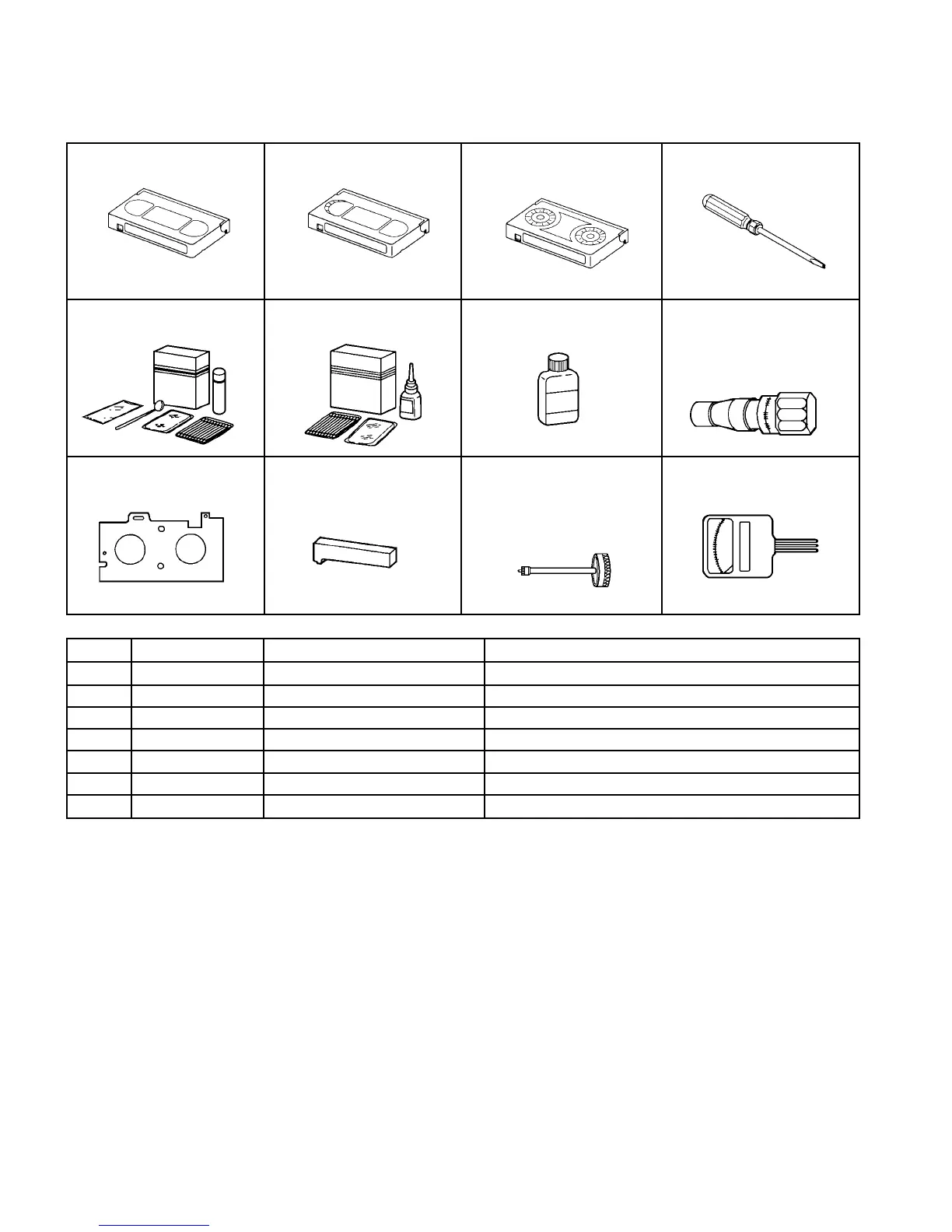

SERVICING FIXTURES AND TOOLS
D1-1
Taper nut driver
70909228
Back tension cassette gauge
70909103
Torque cassette gauge
(KT-300NR)
70909199
Adapter
Dial Torque Gauge
(10~90gf•cm)
(60~600gf•cm)
JG185 Tentelometer
VTR cleaning kit VTR lubrication kit Grease JG002B
JG002E
JG002F
JG153 X Value Adjustment
Screwdriver
JG022 Master Plane JG024A Reel Disk Height
Adjustment Jig
Alignment Tape
ST-N5
ST-NF
Remarks
Part No.Ref. No. Parts Name
JG002B
JG002E
JG002F
APJG002B00
APJG002E00
APJG002F00
Adapter
Dial Torque Gauge (10~90gf•cm)
Dial Torque Gauge (60~600gf•cm)
VSR Torque, Brake Torque (S Reel/T Reel Ass'y)
Brake Torque (T Reel Ass'y)
VSR Torque, Brake Torque (S Reel)
APJG022000JG022 Master Plane Reel Disk Height Adjustment
JG024A APJG024A00 Reel Disk Height Adjustment Jig Reel Disk Height Adjustment
JG153 APJG153000 X Value Adjustment Screwdriver X Value Adjustment
PREPARATION FOR SERVICING
1.
2.
3.
Set the VOLUME to minimum.
Press both VOL. DOWN button on the set and the FF button on the set for more than 2 seconds.
(The BOT, EOT, and the Reel Sensor do not work and the VCR deck can be operated without a cassette tape.)
In case of using a cassette tape, press the STOP/EJECT button to insert or eject a cassette tape.
Turn on the power and re-check the cable before checking the trouble points.
JG185 APJG185000 Tentelometer Confirmation of Tape Tension on Playback
